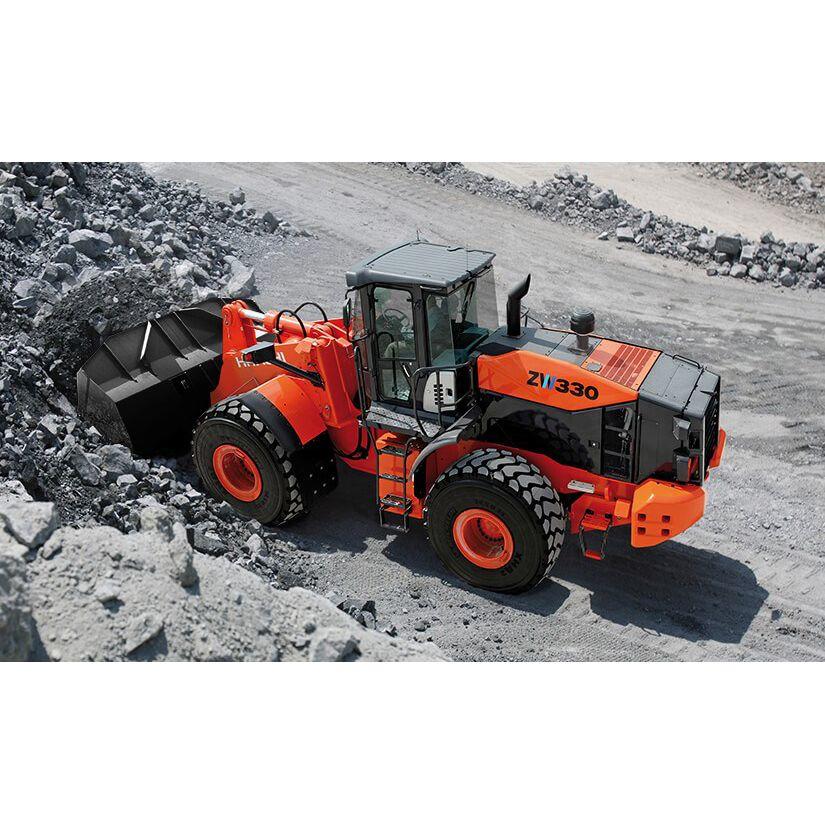

Wheel Loaders | ZW330-5Get latest price

Designed and built using advanced technology, it incorporates high-quality and robust components that can withstand the challenges of busy job sites.With greater traction force, the ZW330-5 wheel loader can deliver high levels of performance without compromising on efficiency. The 12.9-litre six-cylinder water-cooled turbo engine enables a powerful digging performance and benefits from excellent fuel consumption.

Overview

• Engine
  • Model: Hino E13C-VV.
  • EU Stage IIIB / EPA Tier 4 Interim emission certified.
  • Type: 4-cycle water-cooled, direct injection.
  • Aspiration: turbocharger and intercooled.
  • After treatment: muffler filter (DPF).
  • No of cylinders: 6.
  • Displacement: 12.91L.
  • Maximum net power: 213kW (285HP) at 1800 rpm.
  • Maximum net torque: 1400Nm at 1300 rpm.
  • Air filter double elements, dry type with restriction indicator.
  • Pre-cleaner, Sy-klone.

• Electrical
  • Backup alarm.
  • Batteries, standard (120AH-760A).
  • Battery disconnect switch.
  • Head lights.
  • Clearance lights.
  • Rear combination lights, brake and tail.
  • Turn signals with hazard.
  • Work light, front (2) and rear (2).
  • Additional work lights on cab, front (2) and rear (2).
  • Rotating beacon provision.
  • 12V power outlet.

• Powertrain
  • Torque converter, countershaft type powershift transmission with load sensing system.
  • Computer-controlled automatic shift and manual shift, forward (4) / reverse (4).
  • Heavy-duty planetary final drives, mounted inboard.
  • Torque proportioning differential, front and rear.

• Brakes
  • Independent brake circuit, front and rear.
  • Inboard mounted fully hydraulic 4 wheel wet disc.
  • Spring-set/hydraulic-released parking brake.

• Tyres: 26.5 R25 (L3), Bridgestone VMT radial tyres.

• Hydraulics
  • Variable displacement axial plunger main pump.
  • Multi function joystick, 2 spools control valve.
  • Bucket auto leveler, automatic return to dig.
  • Dual lift arm auto leveler, adjustable with multi function monitor.
  • Lift arm float system.
  • Ride control with off-auto function.

• Operator Environment
  • ROPS/FOPS certified cab: multi-plane isolation mounted for noise, vibration reduction.
  • Tinted safety glass: front windshield: laminated, others: tempered.
  • Auto air conditioner with double intake filter.
  • Defroster, front and rear.
  • Sun visor, front.
  • Air suspension seat with headrest, fabric.
  • Retractable seat belt, 50mm.
  • Adjustable steering column with pop-up, telescopic and tilt mechanism.
  • Textured steering wheel with spinner knob.
  • AM/FM radio and AUX terminal for digital audio player.
  • Integrated LCD multi function colour monitoring system.
  • Rear view camera.
  • Rear view mirrors, inside (2) and outside (2).
  • Windshield washers and wipers, front and rear.

• Standard Equipment
  • Standard lift arm, z-bar linkage.
  • Automatic reversible cooling fan with heat sensing.
  • Powertrain belly guard.
  • Bucket cylinder guard.
  • Counterweight, heavy, built-in.
  • Drawbar with locking pin.
  • Emergency steering.
  • Front and full covered rear fenders with mud flaps.
  • Global e-service, satellite communication.
  • Lift and tie down hooks.
  • Radiator, standard fin pitch.
  • Operator manual & parts catalogue.
