YS & HS Series six axis robot welding manipulator arm Get latest price

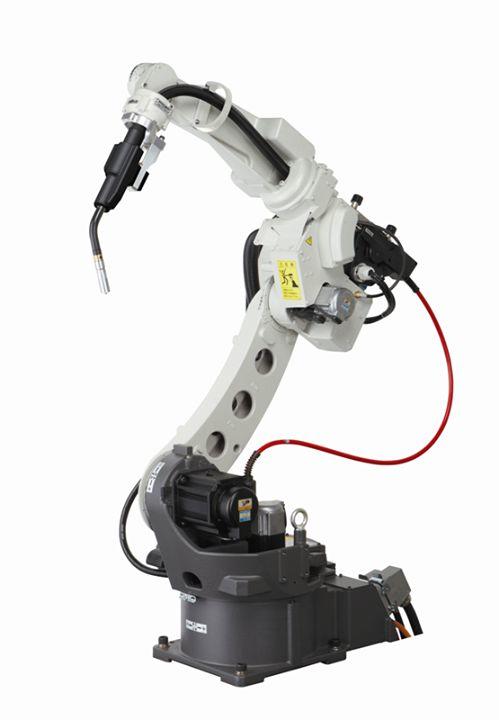

The YS & HS Series six-axis robot welding manipulator arms are engineered for precision, speed, and reliability in demanding welding and assembly operations. With six degrees of freedom, these manipulators execute complex welding trajectories and material handling tasks with high repeatability. Designed for seamless integration with Panasonic RJQ, RJC, RJB, and APU welding positioners, they support advanced automation workflows, including multi-axis robot track systems. Constructed with robust industrial-grade materials and advanced motion control, the YS & HS Series ensures consistent performance, safety, and durability in automotive, metal fabrication, and precision manufacturing environments.

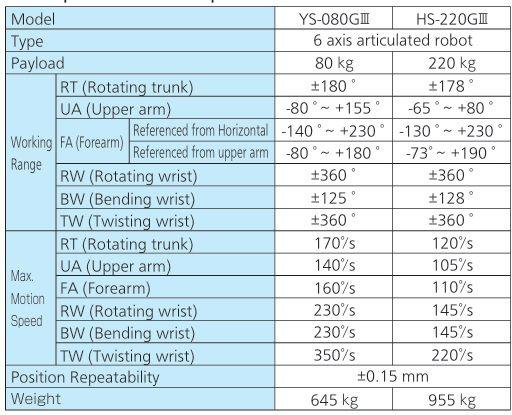

Specifications:

• Number of robot axes: 6
• Number of External Axis capability: 12

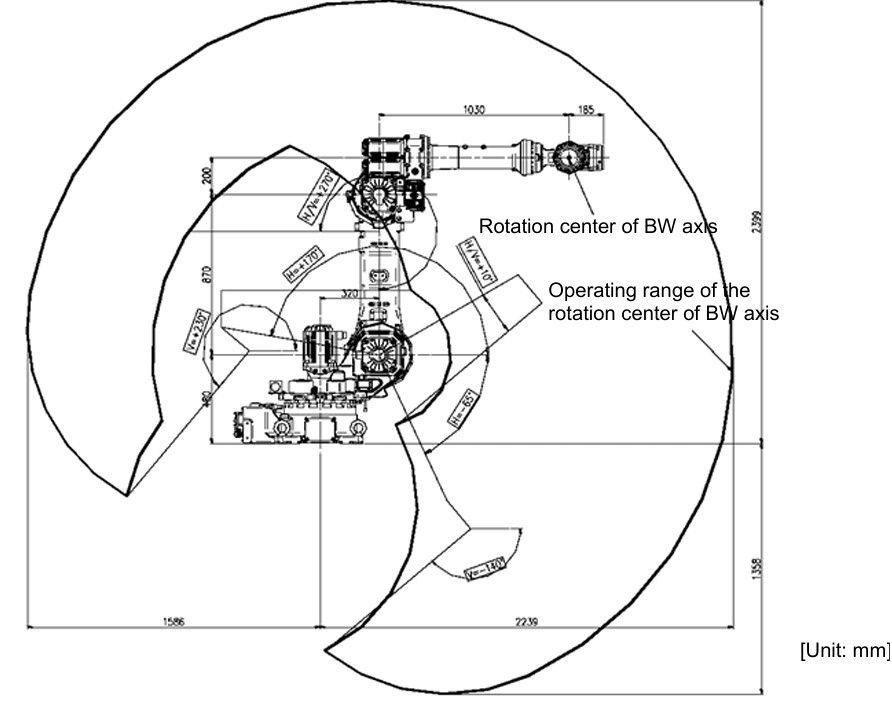

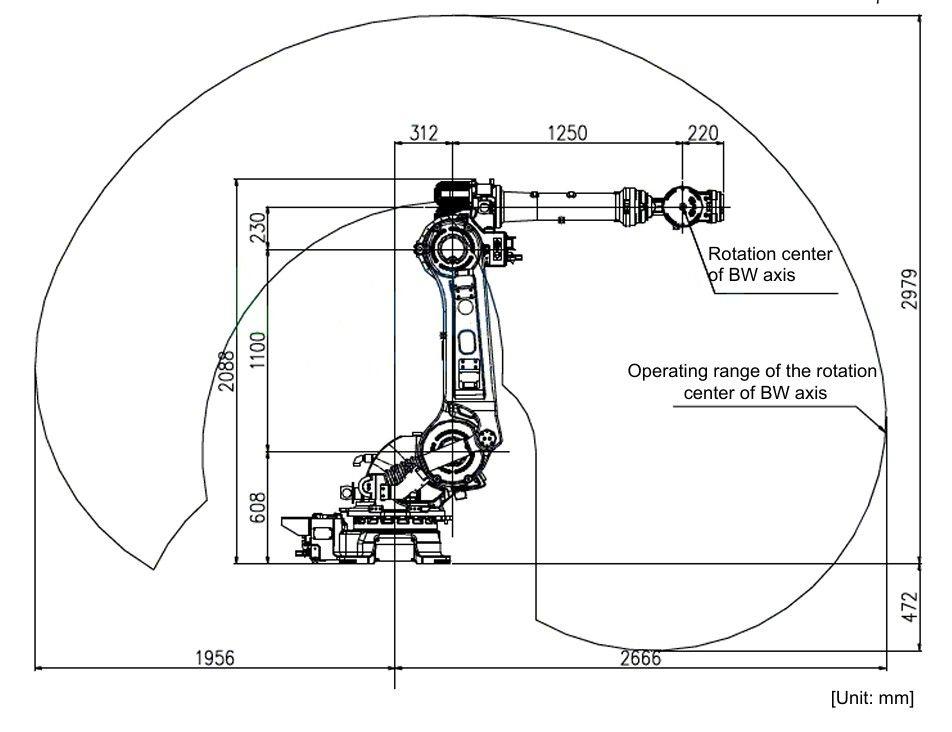

• Reach: 2239mm to 2666mm
• Payload: 80kg to 220kg
• Memory Capacity: 160,000 program points
• External Memory methods: USB, SD Card
• Dedicated Input Signals: 6
• Dedicated Output Signals: 8
• General Input Signals: 40
• General Output Signals: 40
• Available: Off Line Programming
