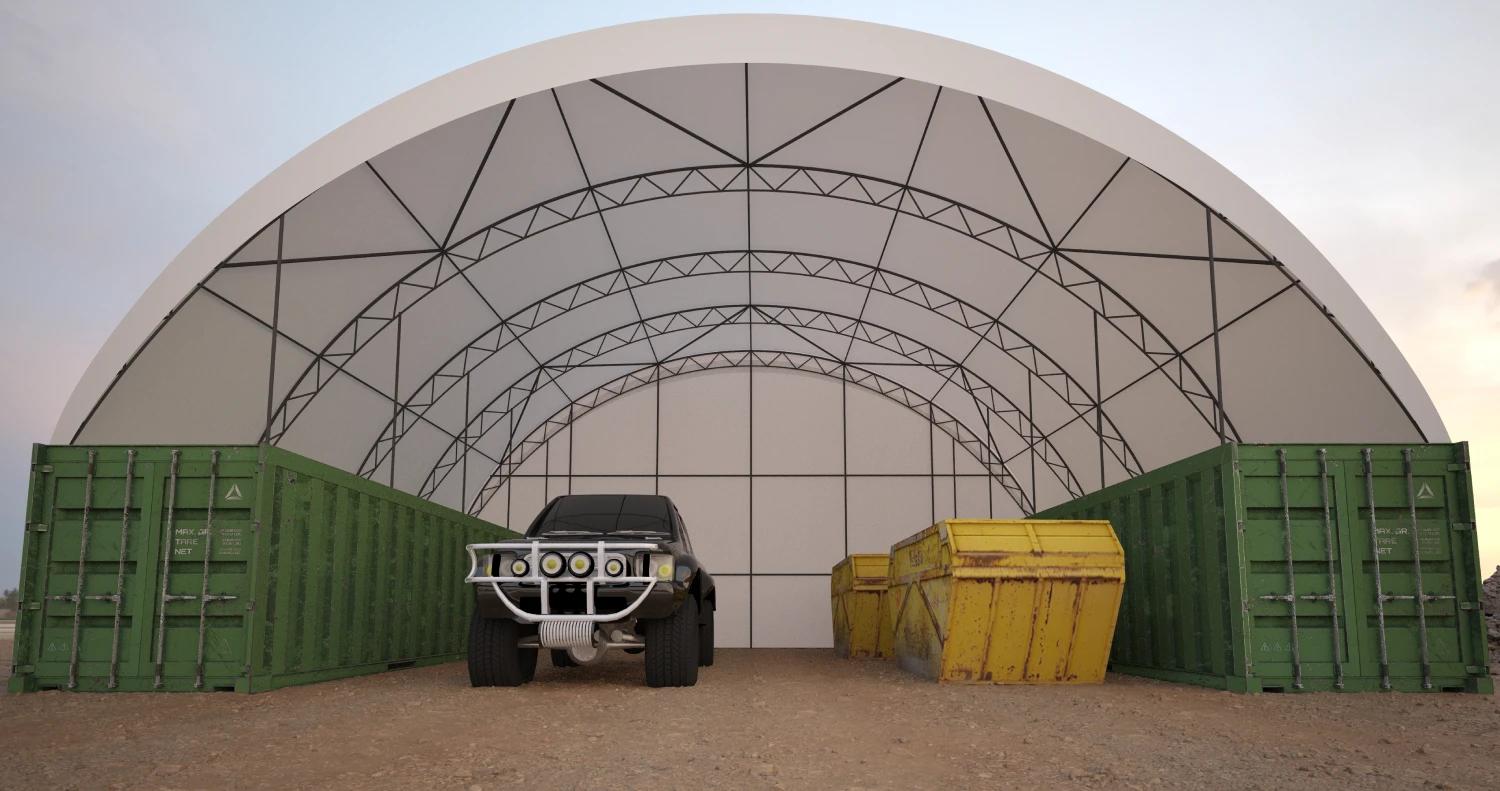

25% stronger 750gsm PVC fire-retardant cover with 15-year warranty. Features- 120m² undercover workspace, ideal for vehicles, machinery, and equipment.
- 25% stronger 750gsm PVC ripstop fabric cover – fire retardant and tear-resistant.
- Double truss, hot-dip galvanised steel construction for superior durability.
- Maximum design wind speed: 180km/h.
- Engineered twist-lock design with welded base plates (requires welding on mounting surface).
- 100% weather resistant and UV-protected, built for Australia's harsh conditions.
- Frame and fabric cover both covered by a comprehensive 15-year warranty.
- Back wall sold separately.

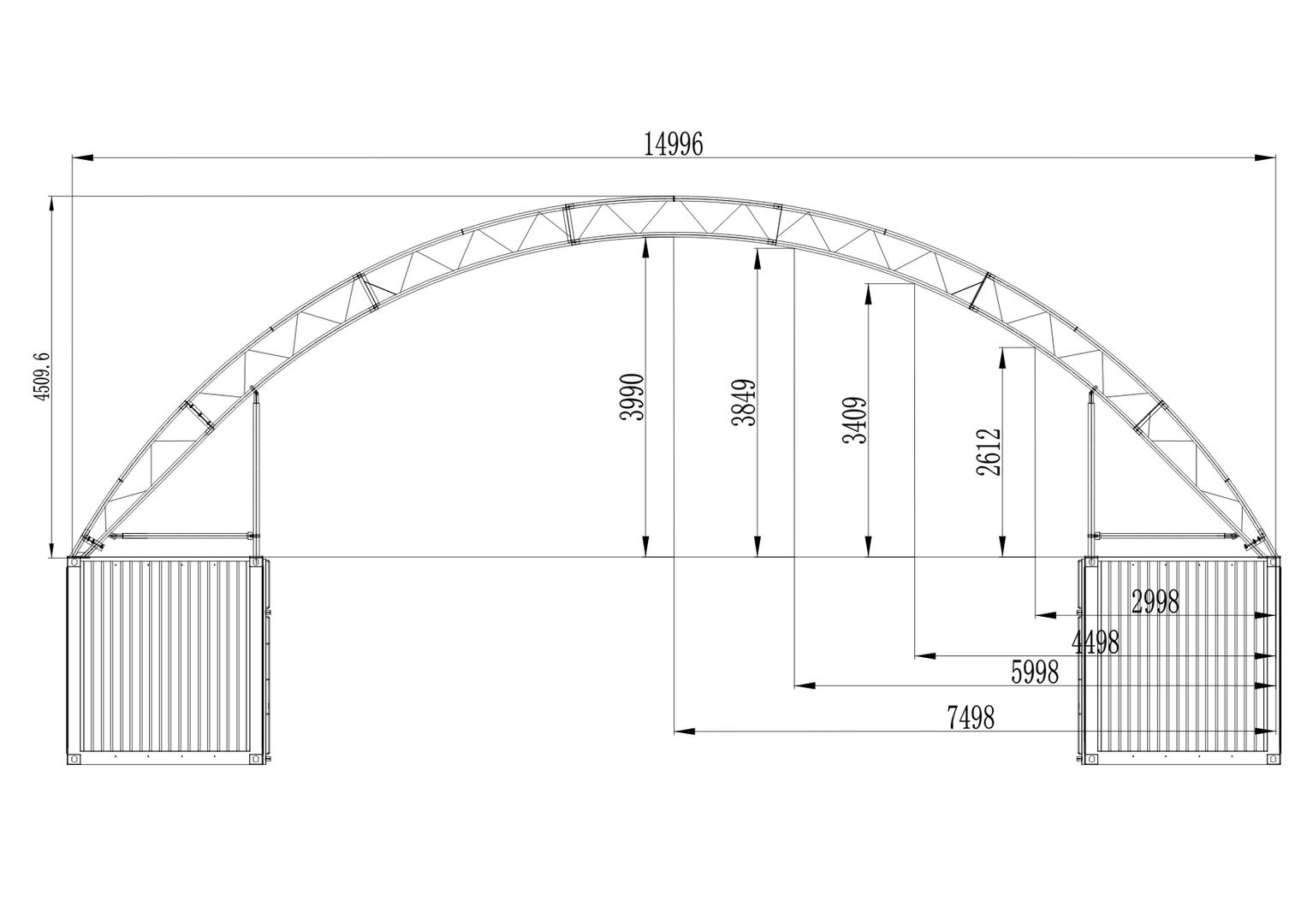

SpecificationsWidth | 15m |
Length | 12m |
Height (Dome Only) | 4.5m |
Height on GP Containers | 7.1m |
Height on HC Containers | 7.4m |
Truss Type | Double Truss |
Frame Material | Hot Dip Galvanised Steel |
Arch Size | 60mm x 2.0mm |
Purlin Size | 60mm x 1.8mm |
Cover Material | PVC 750gsm Ripstop |
Wind Rating | 180km/h |
Fire Rating | Fire Retardant |
Weather Resistance | 100% |
Shipping Size & WeightBox 1 | 3050mm L x 1100mm W x 900mm H, Weight: 795kg |
Box 2 | 3030mm L x 1100mm W x 800mm H, Weight: 780kg |
Additional Notes- Back walls available separately.
- Available at over 140 depots nationwide.
- Welding of base plates required for installation.
- Custom dome sizes available on request.
To contact Dome Shelter Supplies about 15m W x 12m L Double Truss Dome Shelter 750gsm use Get a quote.
