25% stronger 750gsm PVC cover for maximum durability and weather protection. Key Features- 6m wide x 6m long x 2m high (dome only), up to 4.9m high on shipping containers
- Single truss, hot dip galvanised steel frame for enhanced strength
- Twist-lock design—no welding or specialist trades required
- Upgraded heavy-duty ratchets to tension covering
- Maximum design wind speed: 180km/h
- Fire-retardant, tear-resistant 750gsm PVC fabric cover—25% stronger than competitors
- Weatherproof: Protection from sun, UV, rain, wind, and snow
- Suitable for construction, mining, agriculture, and commercial storage
- Optional back walls can be added (sold separately)
SpecificationsWidth | 6m |
Length | 6m |
Height (Dome Only) | 2m |
Height on GP/HC Container | 4.6m/4.9m |
Frame | Hot dip galvanised steel; arch 45mm x 1.8mm, purlin 32mm x 1.5mm |
Cover Material | 750gsm ripstop PVC |
Wind Rating | 180km/h |
Fire Rating | Fire retardant |
Weather Resistance | 100% weather resistant |
Shipping Size | 2900mm x 700mm x 420mm |
Weight | 389kg |
Applications- Construction sites: Protect vehicles, tools, and materials
- Mining and remote worksites: Create secure, reliable workspace
- Agricultural use: Store tractors, feed, machinery, or hay
- Commercial: Extra covered area for equipment or temporary warehousing
Installation & Use- Easy setup—twist-lock connections, no welding required

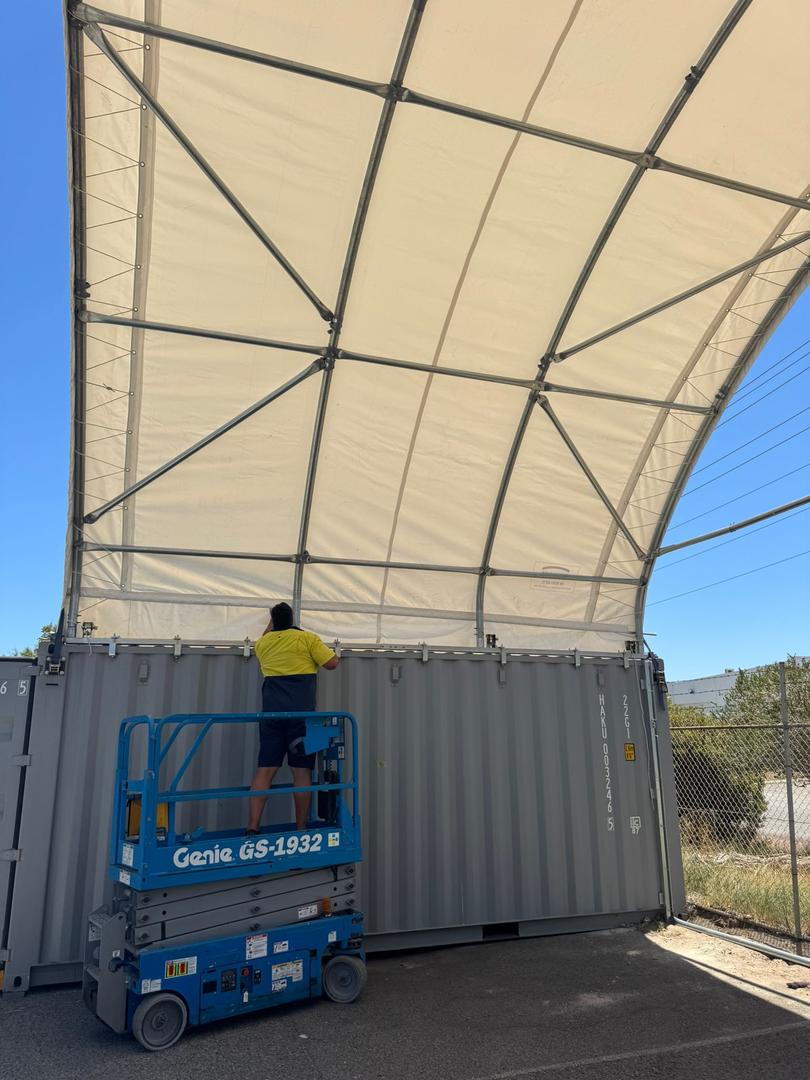

- Mount directly on ground or shipping containers for added height
- Optional back wall available separately
To contact Dome Shelter Supplies about 6m x 6m Commercial Dome Shelter use Get a quote.
