STANDARD FEATURES

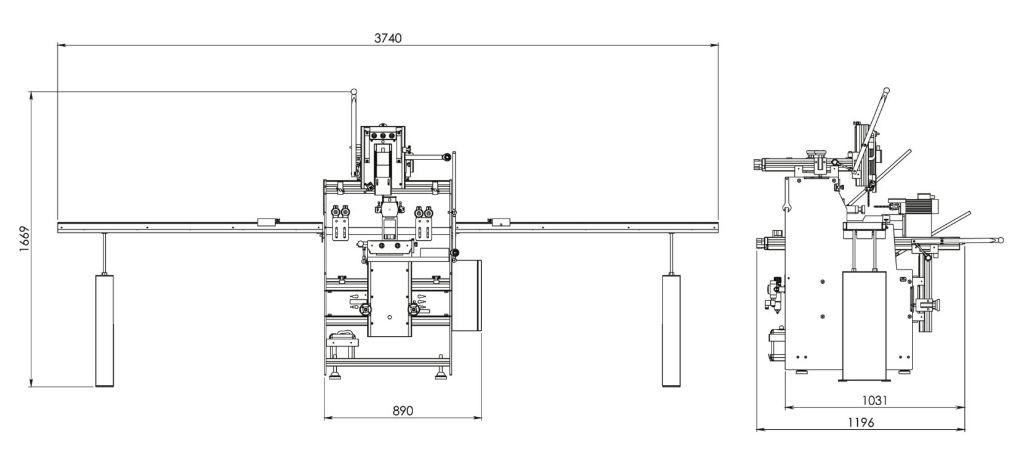

- Designed to process 3 sides of the aluminium profile without rotating the workpiece

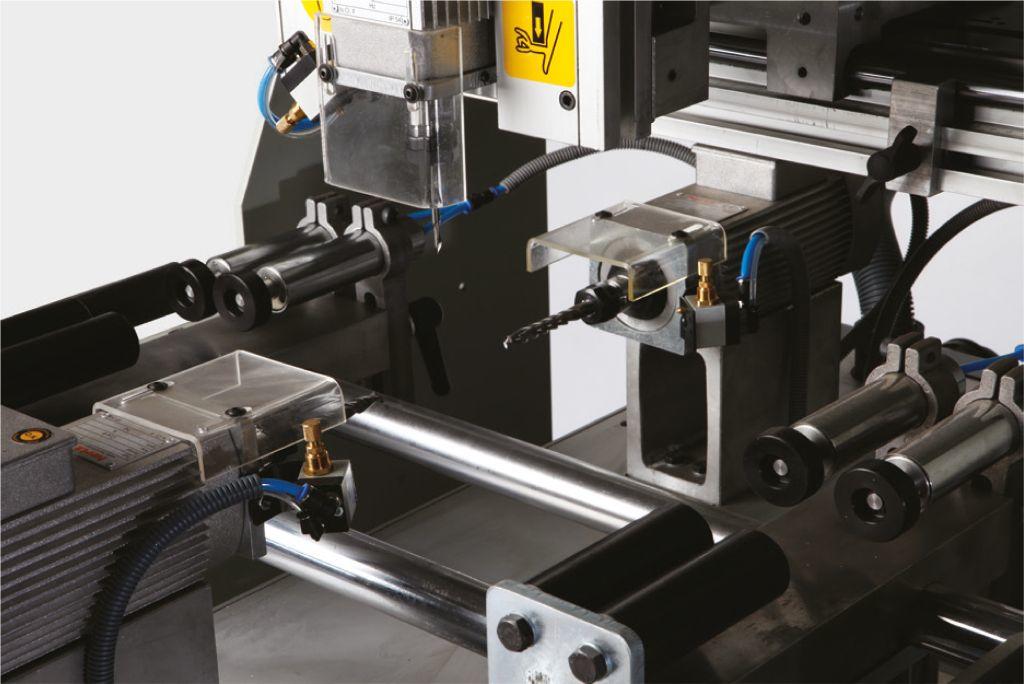

- Copy router with 1 vertical & 2 horizontal copying heads
- Automatic blocking of milling depth on every position
- Horizontal & vertical pneumatic tracers with ø4, ø6, ø8 mm
- Horizontal & vertical templates with standard shapes
- Smooth movement & high precision provided with recirculating ball bearings, shock absorbers & ergonomic handle design
- 2 x 1.5m roller conveyors with adjustable measurement stops
- Spray mist cooling system
- Power supply protects the system against surge voltage changes
SPECIFICATION
- OPERATING VOLTAGE 415v
- CURRENT 10A 50Hz
- OPERATING PRESSURE 6-8 bar
- AIR CONSUMPTION 9L/min
- MOTOR POWER 3x0.75 kW
- MOTOR SPEED 12000 rpm
- MOTOR MOVEMENT X: -390 330 Y: -120 150 Z: -220 250
CAPACITY
- HEIGHT 40-110 mm
- WIDTH MAX (45) 130 mm
- WEIGHT 150 kg
To contact Brobo Group about 3 SPINDLE ALUMINIUM COPY ROUTER | OMRM127 use Get a quote.
