Copy Routers for Aluminium and PVC Profiles

Name: Copy Routers for Aluminium and PVC Profiles
Brand: Tuckwell Machinery Pty Ltd

Supplier: Tuckwell Machinery Pty Ltd

The Copy Routers series offers precision machining for aluminium and PVC profiles, ideal for fabricators seeking efficiency and accuracy for hardware preparation and complex profiling tasks.

Delivers precise and efficient machining of aluminium and PVC profiles with German-engineered reliability.

Overview

Copy routers are profiling machines designed to transfer patterns at a 1:1 ratio from a template or stop into aluminium or PVC workpieces. Ideal for creating precise slots, recesses, and apertures needed for hardware fittings in windows and doors, these machines enable repetitive, consistent results with high efficiency.

Applications

Preparation of lock cylinders, handle holes, latch/strike openings, and accessory recesses
Duplication of complex shapes using templates or rectangular patterns with stops
Pneumatic clamping and pulsed coolant for clean, repeatable machining and extended tool life

Features

Robust German engineering for consistent production accuracy
1:1 tracer-guided routing via templates or stops
Operator-friendly design: pneumatic clamping, spindle lock, and ergonomic controls
Adjustable table height on select models for profiles up to 400 mm
Pulsed coolant system reduces burrs and heat, enhancing finish and tool longevity
Installed and serviced Australia-wide by certified technicians

Model Comparison

Model	Cutting Range (Stop)	Cutting Range (Template)	Travel	Clamping Capacity	Max Profile Height	Spindle Speed	Power	Pneumatic Requirement	Dimensions (L × D × H)	Weight
AS 70/44	230 × 90 mm	230 × 90 mm	110 mm	180 × 130 mm	–	12,000 rpm	0.74 kW, 230/400 V	7 bar, 12 / 24 L	720 × 650 × 1,440 mm	120 kg
AS 170/00	300 × 120 mm	285 × 110 mm	105 mm	150 × 130 mm	400 mm	12,000 rpm	0.74 kW, 230/400 V	7 bar, 12 / 24 L	780 × 790 × 1,545 mm	210 kg
KF 78	H: 300 × 100 mm V: 290 × 100 mm	H: 270 × 70 mm V: 230 × 70 mm	H: 80 mm V: 120 mm	150 × 150 mm	70 mm (profile thickness)	12,000 rpm	0.74 kW, 230/400 V	7 bar, 12 / 24 L	940 × 1,150 × 1,600 mm	260 kg

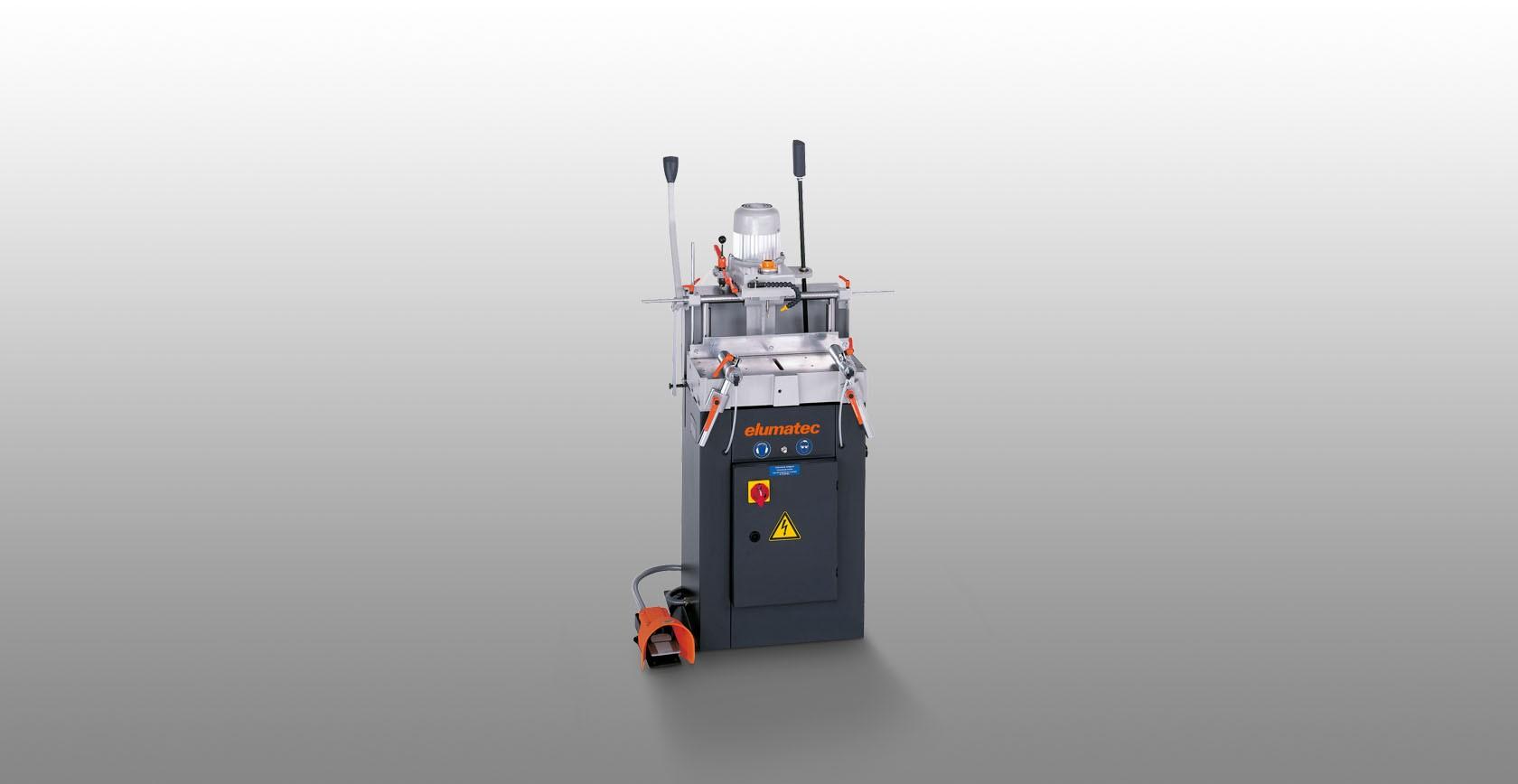

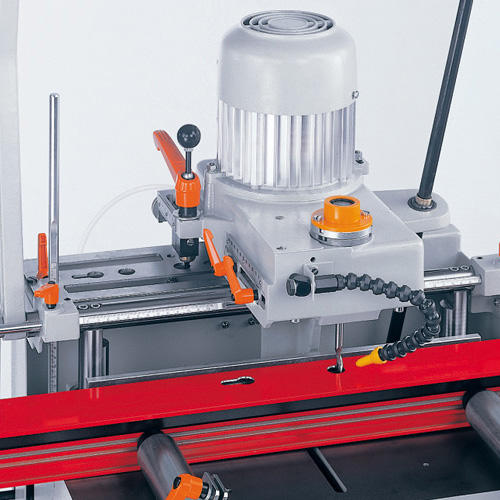

AS 70/44: Compact single-spindle router for versatile routing via templates or stops, with manual tracer point in three levels.
AS 170: Larger and adaptable, uses a patented copy-lever and adjustable table for profiles up to 400 mm, with pneumatic tracer and spindle lock.
KF 78: Dual-plane router for lock/handle holes with vertical and horizontal routing units, plastic-coated table, pneumatic clamping, pulsed coolant system.
