Accumulation Conveyors and Tables (Unscrambling & Accumulation)Get latest price

Applications for our Conveyors & Tables:

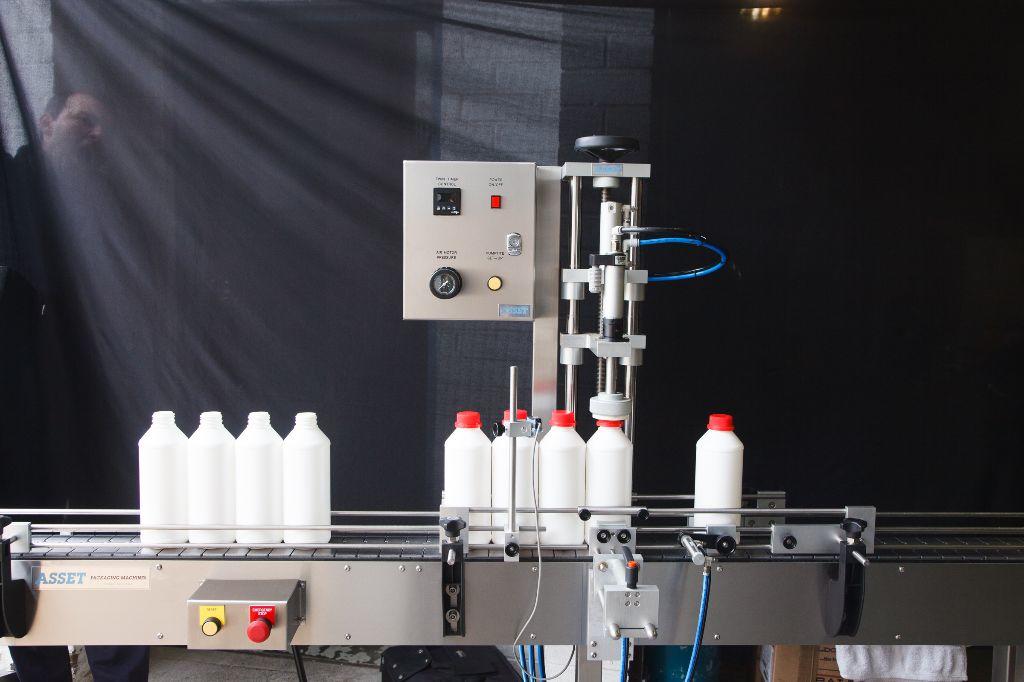

• Automated transport of your containers along your filling, capping, and labelling production line
• Reduce the number of operators required to load and unload from your production line

Features of our Conveyors & Tables:

• Gating to automatically feed containers on and off the Conveyor as well as stop at key points for the filling, capping, and labelling of your containers
• Unscrambling and Accumulation Tables are designed for handling round, stable glass or plastic containers (for rectangular containers the Tables can be fitted with a special take-off belt assembly)
• Can additionally be fitted with: lockable castors or flameproof mechanics with a mechanical speed variator when needed for flammable productions

Why choose our Conveyors & Tables:

• Our Conveyors can be made to suit your product and production floor needs:
  • Option of Belt or Slat Conveyors with choice of stainless steel slat or plastic polymer
  • Multiple lengths in multiples of 1.2m (typically starting at 2.4m)
  • Can be fitted with an Overhead Belt Conveyor or Twin Take-Off Belt Assembly to suit your product and/or production needs
  • Allowing 'S' bend and 90 degree configuration options to suit your production floor layout with our 600mm Transfer Tables
• Our Tables facilitate increased production output:
  • Containers can be randomly placed on our Unscrambling Table (Model AUT) where they are automatically fed onto the conveyor for filling, capping, and/or labelling
  • Our Accumulation Table (Model AAT) collects the containers at the outfeed end of the Conveyor for packing off of filled, capped, and/or labelled containers into packaging ready for shipping (e.g. cartons, boxes)
  • Available in 1200mm and 1500mm diameter tops made either of HDPE or Stainless Steel

Specifications of our Conveyors & Tables:

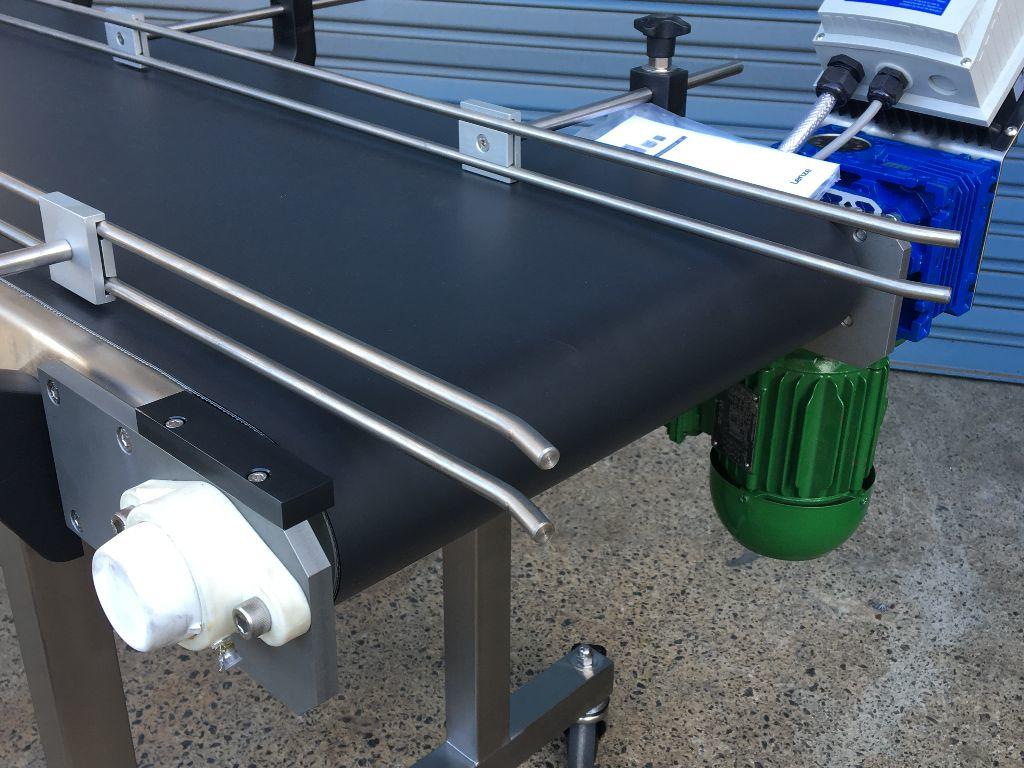

Conveyors:

• 304-grade stainless steel construction with 3mm wall thickness
• Deirin or stainless-steel slat
• Adjustable stainless-steel guide rails
• Screw levelling jacks
• Power by an infinitely variable speed DC motor with controller

Tables:

• 1200mm or 1500mm diameter table top
• Driven by an infinitely variable speed motor and controller
• Fully guarded on edges with safety torque limiting device
• Fabricated, painted mild steel base with stainless steel cladding
• Screw level jacks
