Agricultural Drone | AGRAS T100

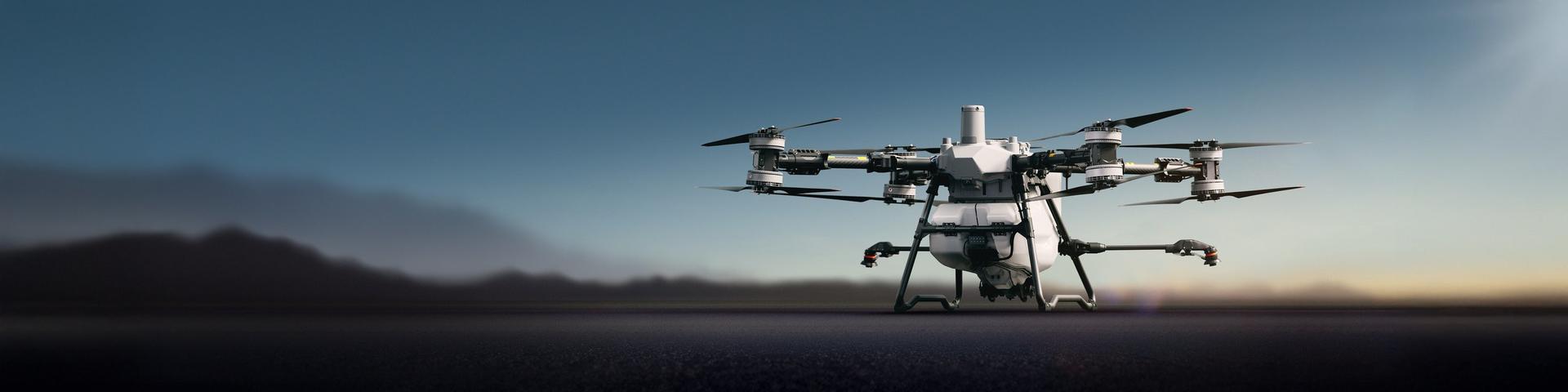

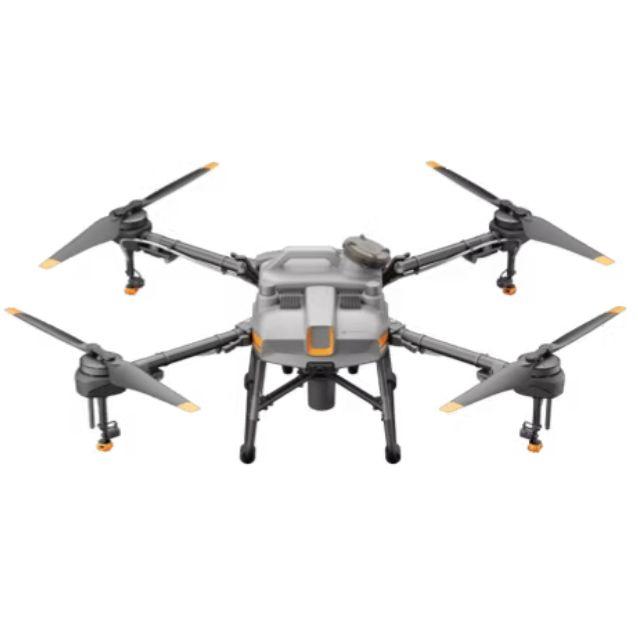

The DJI T100 is an advanced agricultural drone designed for high-capacity spraying, spreading, and lifting tasks, delivering exceptional efficiency, safety, and versatility across various farming scenarios.

Unmatched payload and efficiency for large-scale agricultural operations.

The T100 Agricultural Drone, developed over twelve years, is engineered for large-scale field applications, with a maximum payload capacity of 100 kg and a ground-breaking operational efficiency. It supports multi-purpose agricultural operations including crop spraying, spreading, and lifting.

Note: The actual operational capabilities can vary depending on the environment, task, and local regulations. Users should always adhere to safety guidelines and not exceed recommended payload limits.

OverviewSpraying System

100 L spraying tank with a maximum flow rate of 40 L/min
Dual atomising centrifugal sprinklers for faster flight and wider spray coverage
Optional water-cooled mist sprinkler for orchards, producing fine droplets as small as 50 µm for dense canopies
Magnetic drive impeller pumps: corrosion-resistant, optimised for high flow in orchard scenarios
Rear array of four sprinklers for expanded spray width while maintaining uniform coverage
Dual-channel electromagnetic flow meter: real-time, precise flow detection and dynamic control, with enhanced durability

Spreading System

150 L spreading tank; flow rate up to 400 kg/min
Brand new screw feeder suitable for various granules (fertilisers, seeds, feed, etc.)
Four interchangeable feeder sizes for precise flow and broad adaptability
Typical recommended application rate ranges: 3-750 kg per hectare, particle size: 0.5-10 mm

Lift System

Max lifting capacity: 100 kg, adaptable for transport of materials (solar panels, fruits, saplings, building materials)
Features include auto-balance, weight detection, and automatic navigation

Safety System

Omnidirectional sensing with LiDAR, millimetre-wave radar, and Penta-Vision system for comprehensive obstacle detection
LiDAR captures dense spatial point clouds up to 300,000 points per second
Enhanced multi-sensor fusion and algorithms for improved safety and obstacle avoidance

Propulsion & Power

Coaxial dual-rotor design and 62-inch carbon fibre propellers for improved performance and efficiency
Motors and 420A electronic speed controllers provide stable, reliable operation with fast response
Ultra-fast charging, energy-efficient design

Key Specifications

Spraying Tank Capacity	100 L
Flow Rate (Spraying/Spreading)	40 L/min / 400 kg/min
Maximum Payload	100 kg
Maximum Operating Speed	20 m/s
Spreading Tank Capacity	150 L
Recommended Particle Size	0.5-10 mm
Propeller Size	62-inch
Omnidirectional Sensing	LiDAR, millimetre-wave radar, Penta-Vision
