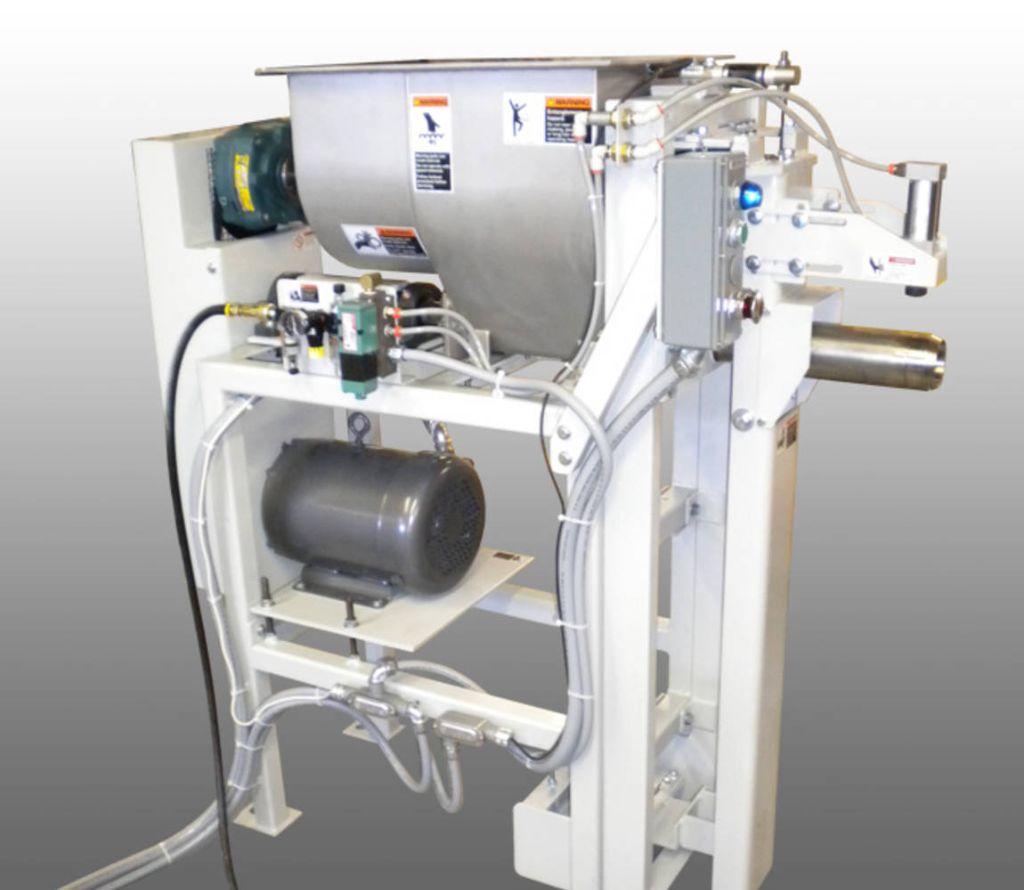

Auger Packer For Valve Bag up to 3 bags/min | VPA SERIESGet latest price

This equipment is especially suited for paint pigments, carbon black, chemicals, minerals, and bakery mixes.

The auger is engineered to minimize product aeration, ensure consistent product flow, and maintain a clean operation. An optional agitator assists in feeding poor-flowing products, further enhancing productivity.

This Auger bag packer features a user-friendly design that offers an effortless filling process. Simply place an empty valve bag on the filling tube, activate the start signal, and the filling, weighing, and cut-off processes all occur automatically and safely.

• Speed: up to 3 bags per minute
• Bulk materials: powders, fine powders, flakes, granules, pellets
• Bag types: valve
• Bag materials: paper
• Bag weight: 22-110 lb (10-50 kg)

Features

Performant

• Bags product at high speeds
• Designed for minimum aeration of product with consistent flow

Accurate

• Positive bag opening feature permits use of minimum bag size
• Auger reverses at product cutoff to clear product from filling tube and prevent product dribbling
• Dust collection hood and duct assembly
• Flexure-based scale system
• NXT Series electronic weight controller

High design quality

• Compact, ideal for low head room installation
• Mild steel product contact surfaces
• Bag chair for support of bag bottom
• Sturdy welded steel frame

Options

• Stainless steel product contact surfaces
• Cone type valve sealer on filling tube
• Hopper with ribbon agitator and rotary paddles
• Motors and electrical enclosures for wet or hazardous environments
• Bag settler
• Pneumatic powered bag clamp
• Automatic bag edge start switch
• 7 ½ hp drive motor

Specifications

• Typical footprint:
  • 30" L x 26" W x 66" H (762 mm x 660 mm x 1676 mm)
• Electrical requirement:
  • 460 V / 3Ph / 60 Hz
