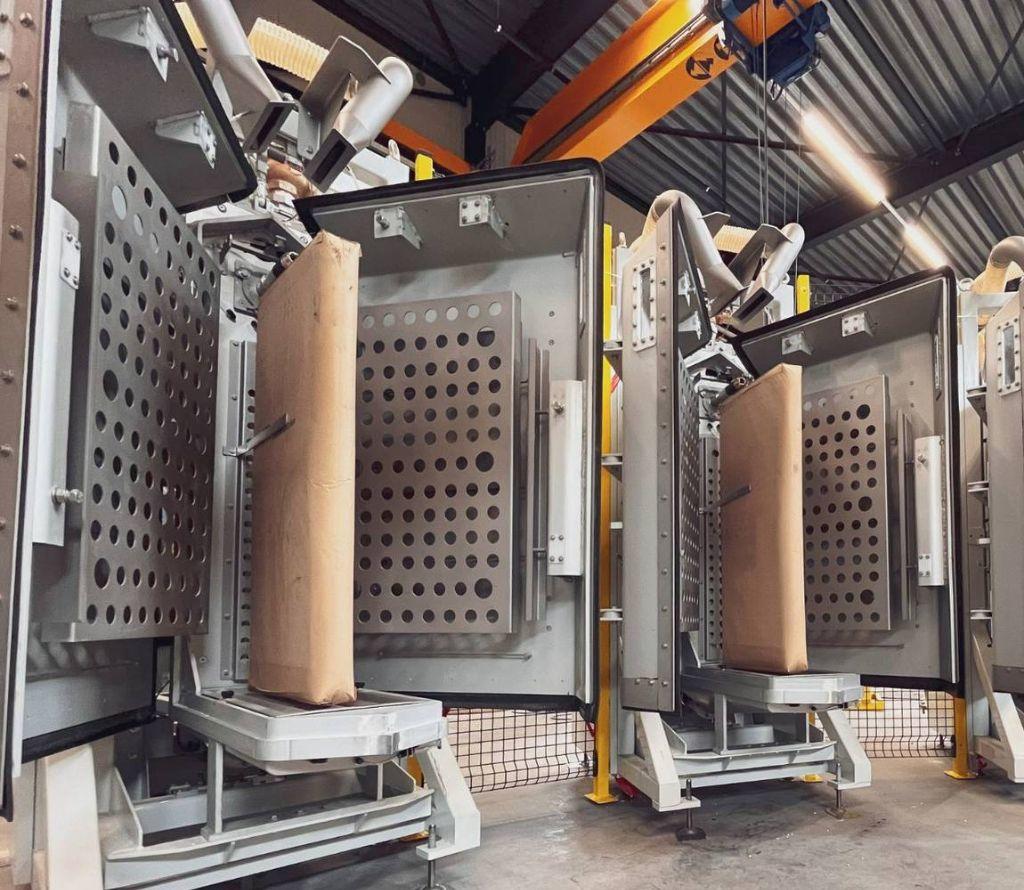

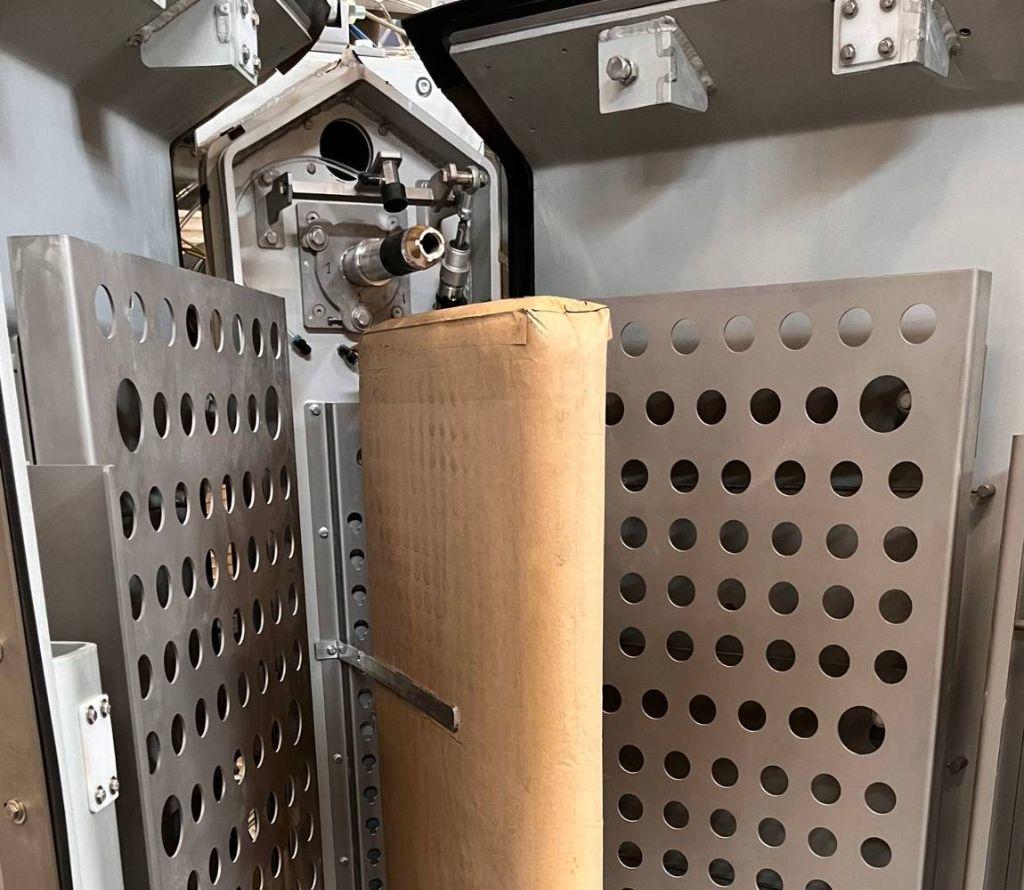

Vacuum Valve Bag Filler 100bags/hr | VPV SERIESGet latest price

Combined with the advanced gross filling mechanism, the valve packer’s vacuum chamber draws the product into the bag at uniform rates, providing excellent accuracy. Then, the integrated aspiration system effectively removes dust during filling, ensuring clean and safe operation.

This bagging technology produces tightly filled bags and reduces their overall thickness, allowing more bags to be stacked on pallets. As a result, it leads to significant cost savings in transport and storage.

• Speed: up to 3 bags per minute (100 per hour)*
• Bulk materials: fine powders
• Product density: 1 to 25 lb/ft3 (0,01 to 0,5 kg/l)
• Bag types: multi-wall paper valve bags
• Bag weight: 2 to 22 kg (5 to 50 lb)

Features

Performant

• Excellent filling accuracy with SpeedAC NXT weight controller
• Gentle product filling with no moving parts, ensuring no shearing or degradation
• Capable of compacting bags up to 700%

Clean and safe

• Integrated aspiration system and dust sensor for efficient dust removal
• ATEX-proofed execution for enhanced safety in hazardous environments
• C.S.A./U.L. or CE approved electrical components

Efficient operation

• Easy access at the operator level, ensuring convenient cleaning, adjustment, and maintenance
• Compact layout to optimize floor space usage

Options

• Vacuum pump and filter tank
• Mechanical bag placer
• Robotic handling of empty and filled bags
• Ultrasonic sealer for enhanced cleanliness
• Label applicator
• Checkweigher
• Exit conveyor for additional automation

Specifications

• Typical footprint:
  • 65" L x 47" W x 85" H (1651 x 1194 x 2159 mm)
• Bag dimensions:
  • Up to 23.5" W (600 mm) x 47" L (1200 mm) x 10” (254 mm)
• Electrical requirements:
  • 120 V / 1Ph / 60 Hz
  • 400v 3ph 50Hz
• Ambient temperature:
  • 5 °C to 35 °C (40 °F to 95 °F)
