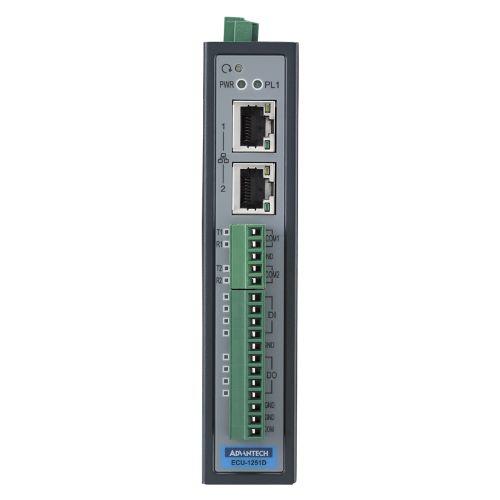

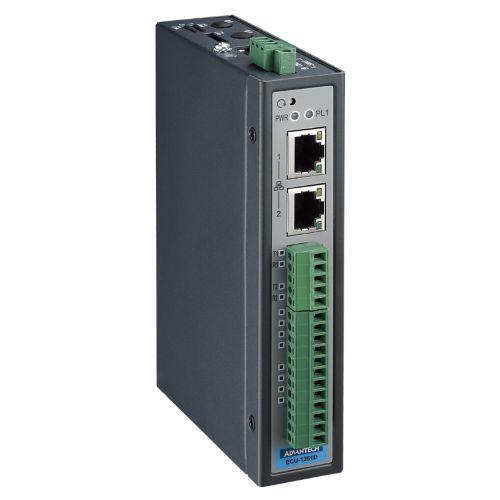

The ECU-1251D is a RISC-based industrial communication gateway built for facility monitoring, distributed solar power, smart factories and cloud-based applications, where comprehensive wireless and Ethernet communication are critical. It features a robust open platform with a TI Cortex A8 processor and dual 10/100 Ethernet ports, supporting a wide operating temperature range from -40 to 70°C.
Certification | CE, FCC |
Mounting | Wall-Mount / DIN-Rail |
Power Consumption | 2.5 W @ 24 VDC |
Power Supply | 10 ~ 30 VDC |
Memory | DDR3L 256 MB / 512 MB NAND Flash |
Storage | 1 x Micro-SD slot |
Serial Ports | 2 x RS232/RS485 (Isolation optional) |
USB | 1 x USB 2.0 |
Ethernet Ports | 2 x 10/100 Base-T RJ-45 |
Wireless (Optional) | Mini-PCIe (WiFi/Cellular/4G via USB) |
Digital Inputs | 4 channels (Wet Contact, 0–4V Logic 0, 10–30V Logic 1, 2000 VDC Isolation) |
Digital Outputs | 4 channels (Open Collector, 10–30 VDC, 100 mA/channel, 2000 VDC Isolation) |
Watchdog/RTC | Yes |
Operating System | Linux Kernel 4.0 |
Configuration Tool | Advantech Edgelink Studio |
Operating Temp. | -40 ~ 70 °C |
Storage Temp. | -40 ~ 85 °C |
Humidity | 5 ~ 95% (non-condensing) |
