Discover the HIKMICRO G61 Thermal Camera—your ultimate tool for precision imaging. Capture heat signatures effortlessly, enhancing inspections and safety with cutting-edge technology. Perfect for professionals and enthusiasts alike!
Description
Documents
Ultra-high resolution for precise thermal inspections.
Contact us for availability
Key Features
The Gx1 Series Handheld Thermal Imager is designed to provide superior thermal imaging capabilities with its high-resolution VOx detector and versatile functionalities.
Ultra-high resolution of up to 640x480 @35mK NETD ensures clear thermal vision for accurate inspections.

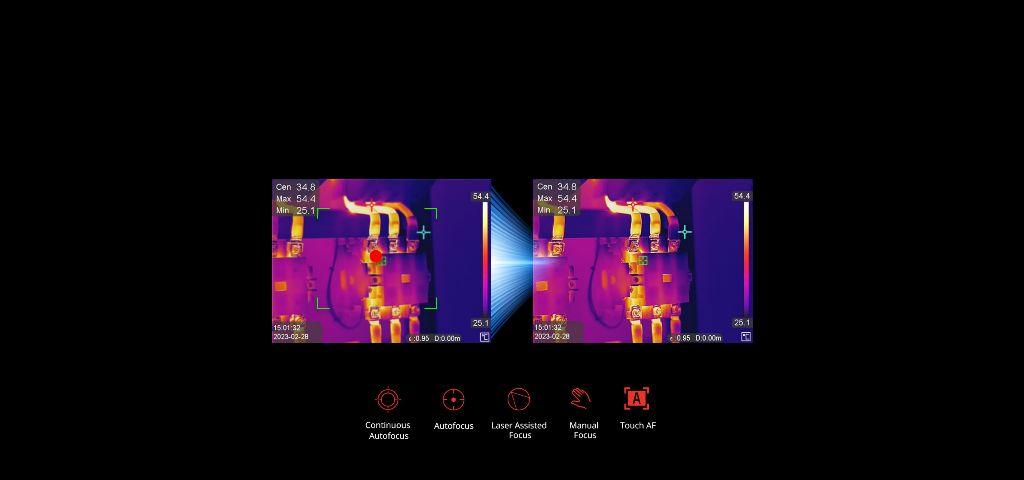

Supports five focus modes, including Laser Assisted AF and Continuous AF, for sharp images and precise temperature measurements.
Offers three add-on lenses (0.5X, 2X, and 3.3X) for varied field of view options, enhancing flexibility in different scenarios.
Temperature measurement range up to 2000°C, suitable for extreme industrial applications like metal smelting.
Embedded laser distance meter for accurate distance and area measurements, facilitating parameter setting and report generation.
Five image modes (Thermal, Fusion, PIP, Blending, Optical) to suit various preferences and applications.
Complete image annotations with voice, text, QR code, GPS, and compass functions for enhanced inspection efficiency.
Interchangeable battery system with three Li-ion batteries and a dual bay charger, providing up to 12 hours of operation.
Radiometric video analysis with in-camera SD card storage and compatibility with HIKMICRO Analyzer software.
Technical Specifications
The Gx1 Series Handheld Thermal Imager is equipped with advanced technical specifications to meet demanding industrial needs.
IR Resolution
640 x 480 (307,200 pixels)
NETD
< 35 mK (@ 30 °C, F#=1.0)
Image Frequency
50 Hz
Detector Pitch
17 µm
Spectral Range
7.5 to 14 µm
Focal Length
25 mm
F-number
F 1.0
Field of View (FOV)
25° × 19°
Spatial Resolution (IFOV)
0.68 mrad
Focus Mode
Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF
Focus Speed
Approx. 2 second
Min. Focus Distance
0.1 m
Visual Camera
3264 × 2448 (8 MP)
Display
800 × 480 Resolution, 4.3" LCD Touch Screen
Digital Zoom
1.x to 8.x continuous
Image Modes
Infrared/Visual/Fusion/PIP/Blending
Color Palettes
White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
Object Temperature Range
Range -20? to 150?, Range 0? to 650?
Accuracy
±2? for -20 to 0?, ±1? for 0 to 100?, ±1% for 100 to 150?, ±2% for 100 to 650?
Measurement Tools
Center Spot, Hot Spot, Cold Spot, User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles
Image Storage Capacity
Approx. 60,000 Images
Video Storage Capacity
Approx. 54 hours
Video File Format
MP4 video and radiometric video
Wi-Fi
802.11 b/g/n (2.4 GHz and 5 GHz)
Bluetooth
Bluetooth 4.2
USB Interface
USB Type-C
Battery Type
Interchangeable and rechargeable Li-ion battery
Battery Operating Time
Approx. 4 hours
Protection Level
IP54, IEC 60529
Drop Test Height
2 m, IEC 60068-2-31
Working Temperature Range
-20°C to 50°C
Weight
Approx. 1058 g
Dimension
284.7 × 120.6 × 124.5 mm
Warranty
3 years for the full product, 10 years for the detector, and 2 years for the battery.
What's in the Box
The Gx1 Series Handheld Thermal Imager comes with essential accessories to enhance your experience.
Calibration Certificate
Printed Quick Start Guide
Hard Carrying Case
Charging Base with Adapter and Plugs (US/EU/UK/AU)
Interchangeable Battery x 3
64GB Micro SD Card
Hand Strap Brackets Left and Right
Aperture Diaphragm (G41H/G61H Only)
Lens Cap
Hand Strap
Torx Screwdriver
Screw for Hand Strap Brackets
Mini HDMI to HDMI Cable
USB Cable
