M60 Advanced Thermal Imaging Camera

Name: M60 Advanced Thermal Imaging Camera
Brand: OBIAT Electronics Pty Ltd

Supplier: OBIAT Electronics Pty Ltd

The M60 Series Handheld Thermal Imager offers advanced thermal imaging capabilities with precise temperature measurement, making it ideal for industrial / Electrical inspections and maintenance.

Ideal for Electrical applications

Receive 1-3 days from order

Key Features

The M Series Handheld Thermal Imager is designed for professionals seeking high-quality thermal imaging solutions. Its advanced features ensure accurate temperature readings and enhanced image quality for various applications.

Manual and Fixed Focus Options: Choose between manual focus for detailed inspections in tight spaces or fixed focus for broader scans.
SuperIR Image Enhancement: Upscales images 4X for detailed live and recorded radiometric images.
Interchangeable Battery System: Includes two Li-ion batteries and a dual bay charger for up to 12 hours of operation.
Complete Image Annotations: Annotate images with voice, text, QR codes, and more for efficient reporting.

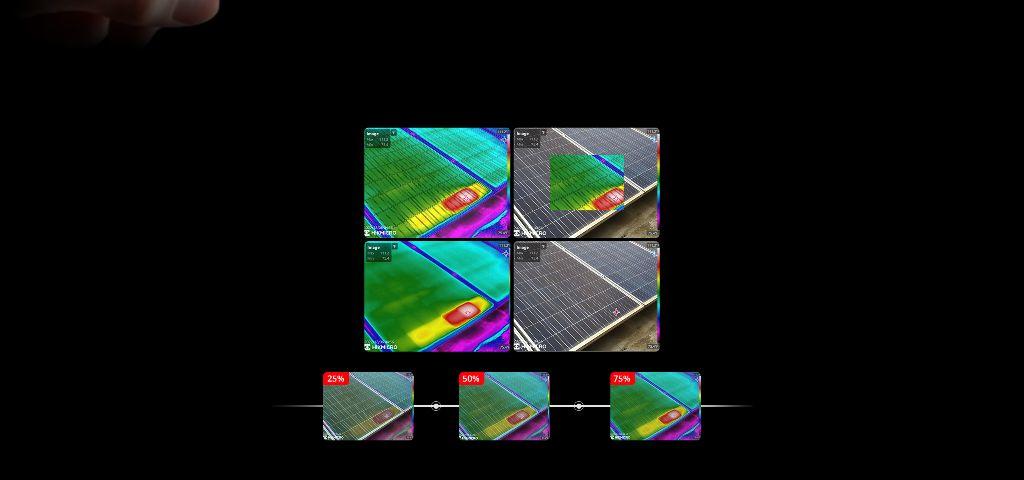

1-Tap Level & Span: Instantly improve image contrast with manual, automatic, and 1-Tap modes.
Rugged & Durable Design: IP54 rated with 2-meter drop protection, suitable for industrial use.

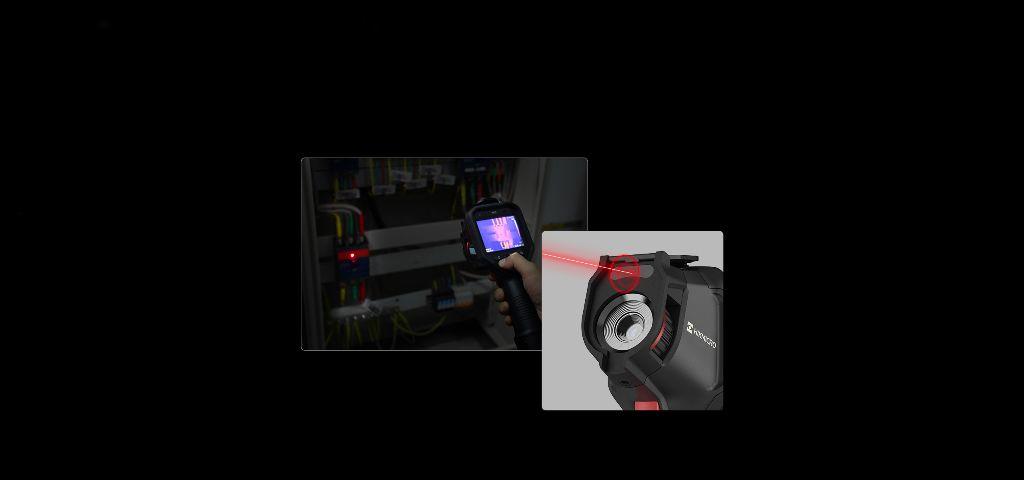

Laser Pointer: Helps show the position of the center point on actual objects for precise analysis.
HIKMICRO Viewer & Analyzer: Connect via Wi-Fi for real-time analysis, sharing, and reporting.

Technical Specifications

Explore the detailed specifications of the M Series Handheld Thermal Imager to understand its capabilities and performance.

Specification	Details
IR Resolution	640 x 480 (307,200 pixels)
NETD	< 35 mK (@ 25 °C, F#=1.0)
Image Frequency	30 Hz
Detector Pitch	17 µm
Spectral Range	7.5 to 14 µm
Focal Length	15 mm
F-number	F1.0
Field of View (FOV)	41.9° × 33.3°
Spatial Resolution (IFOV)	1.13 mrad
Focus Mode	Manual Focus
Min. Focus Distance	0.3 m (0.98 ft)
Visual Camera	3264 × 2448 (8 MP)
Display	640 × 480 Resolution, 3.5" LCD Touch Screen
Digital Zoom	1.0x to 8.0x continuous
Image Modes	Thermal/Visual/Fusion/PIP/Blending
Color Palettes	White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red, Condensation Alarm
Object Temperature Range	Range -20? to 150?, Range 0? to 650?
Accuracy	Max (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C and object temp. above 0°C
Measurement Tools	Center Spot, Hot Spot, Cold Spot, User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles
Wi-Fi	802.11 b/g/n (2.4 GHz and 5 GHz)
Bluetooth	Bluetooth 4.2
Battery Type	Interchangeable and rechargeable Li-ion battery
Battery Operating Time	Approx. 4 hours
Protection Level	IP54
Drop Test Height	2 m (6.56 ft)
Weight	Approx. 686g
Dimension	244 × 100 × 104 mm
Warranty	3 years for the full product, 10 years for the detector, and 2 years for the battery

Applications

The M Series Handheld Thermal Imager is versatile and suitable for various applications, including:

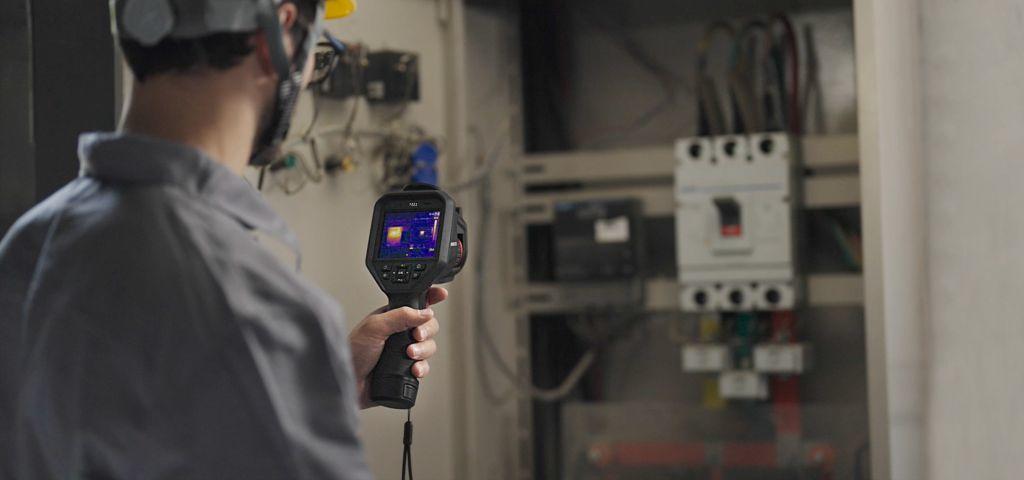

Electrical Box and Cabinet Inspections
Freezer Room Monitoring
In Floor Heating Systems
Solar Panel Inspections

What's in the Box

Each M Series Handheld Thermal Imager comes with the following items:

Calibration Certificate
Printed Quick Start Guide
Hard Carrying Case
Charging Base with Adapter and Plugs (US/EU/UK/AU)
Interchangeable Battery x 2
Wrist Strap
64GB Micro SD card
2-in-1 USB-C to USB-CA Cable
