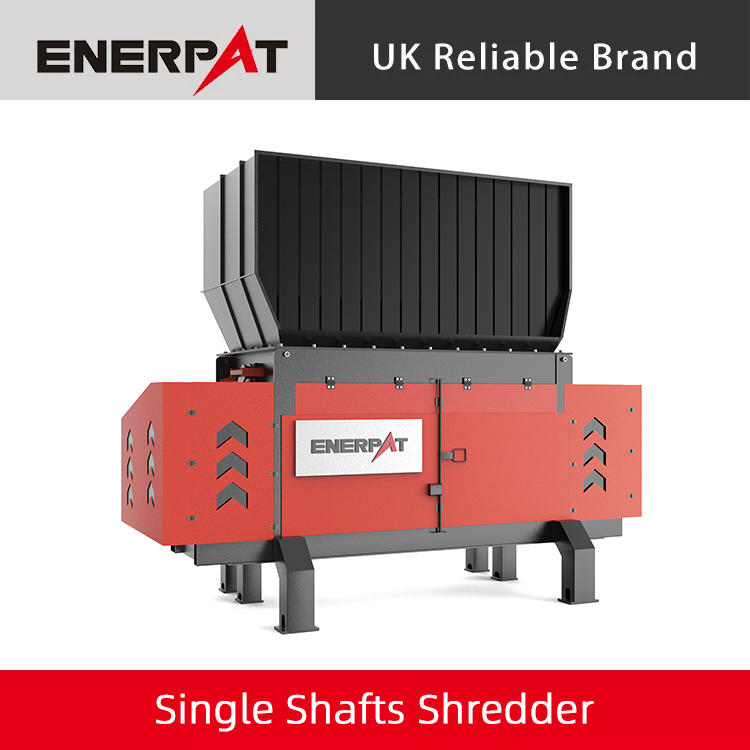

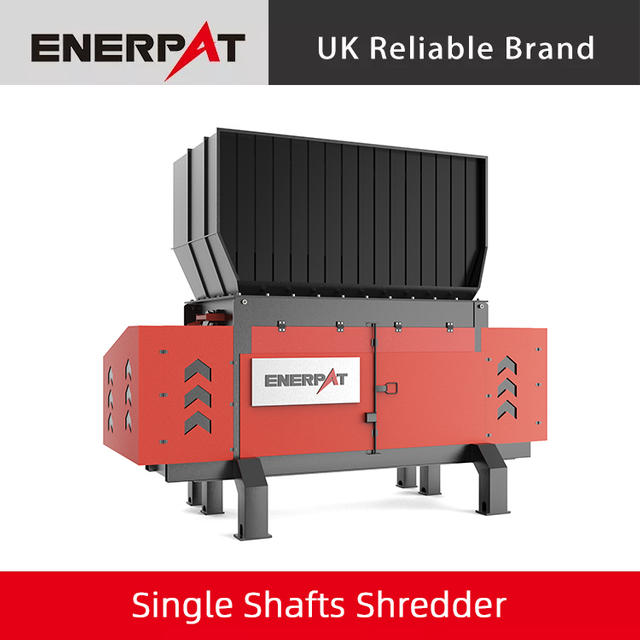

Heavy-Duty Single Shaft Shredder | MSA-F Series

Name: Heavy-Duty Single Shaft Shredder | MSA-F Series
Brand: Enerpat

Supplier: Enerpat

The Heavy-Duty Single Shaft Shredder is an industrial-grade solution designed for efficient shredding and recycling of aluminium, metals, and bulky waste materials in high-capacity operations.

Powerful, high-throughput shredding with robust dual-motor drive for demanding metal recycling applications.

The MSA-F Series Heavy-Duty Single Shaft Shredder is engineered for durability, reliability, and high throughput. It is ideal for processing aluminium profiles, turnings, drink cans, oil filters, and other metal waste, making it a versatile choice for recycling and waste reduction applications.

Main Features

Robust, interlock-welded frame structure ensures long-lasting durability under demanding operational conditions.
High-efficiency V-shaped rotor made from premium 42CrMo steel increases shredding capacity and achieves a consistent uniform output.
Hydraulic ram for controlled and powerful material feeding, automatically adjusting to material type and hardness for optimal throughput.
Customisable screen options (round, hex, fishbone, and more) enable precise control over output particle size (as small as 20 mm).
Pneumatic spring-assisted screen mechanism allows for quick, easy screen changes to minimise downtime.
Dual Siemens motors and Bonfiglioli gearboxes provide up to 2 × 200 kW driving power, supporting up to 10 t/hour throughput.
Intelligent Siemens/Schneider PLC system with automatic reversing and shutdown for overload protection and operator safety.
Integrates seamlessly with existing ENERPAT shredding and sorting lines.
Modular construction simplifies maintenance and service.

Technical Specifications

Model	MSA-F2000	MSA-F3000
Motor Power (kW)	132 × 2	200 × 2
Shredding Chamber Width (mm)	2000	3000
Overall Dimensions (mm)	3670 × 4374 × 2530	3705 × 5332 × 3146
Throughput	Up to 10 t/hr (depending on material type)
Min. Output Particle Size	20 mm

Applications

Aluminium scrap and profiles
Pop/drink cans
Thermally broken aluminium
Oil filters and other industrial metal scrap

Case Studies

Can manufacturing: 8 t/hour aluminium can crushing system
Automotive parts: 7 t/hour aluminium scrap crushing
Solid waste processing: 10 t/hour thermally broken aluminium crushing
