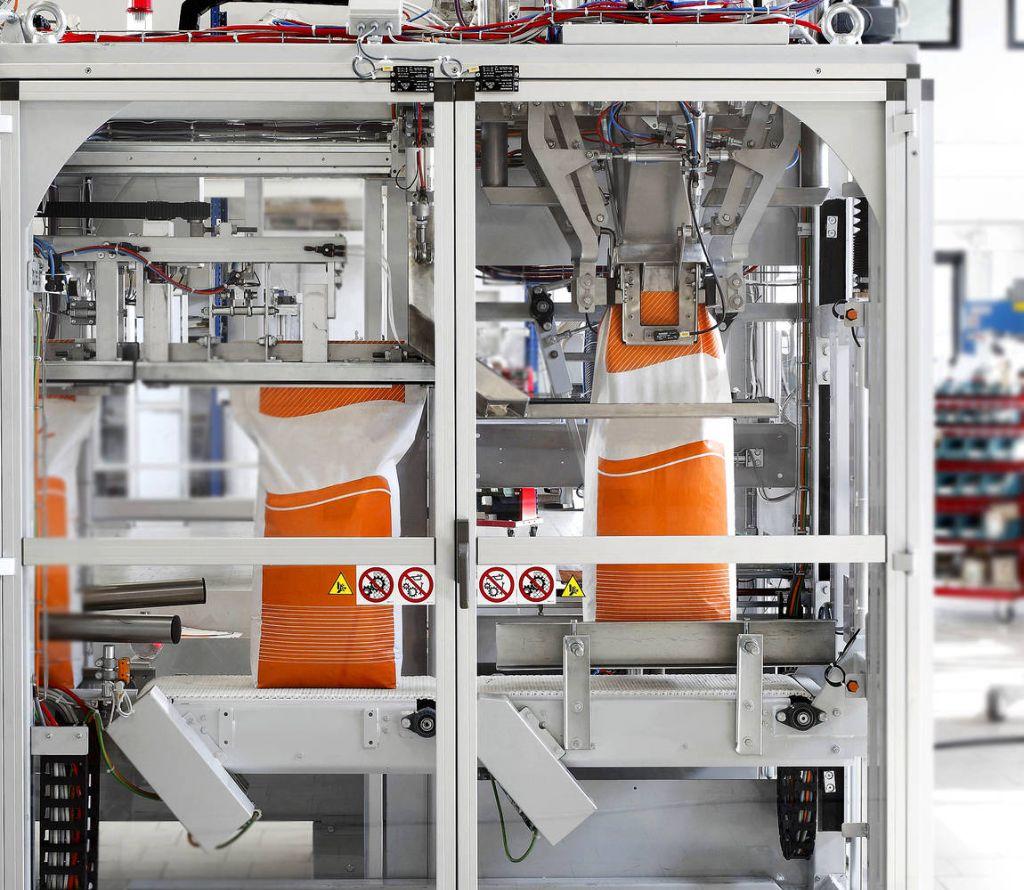

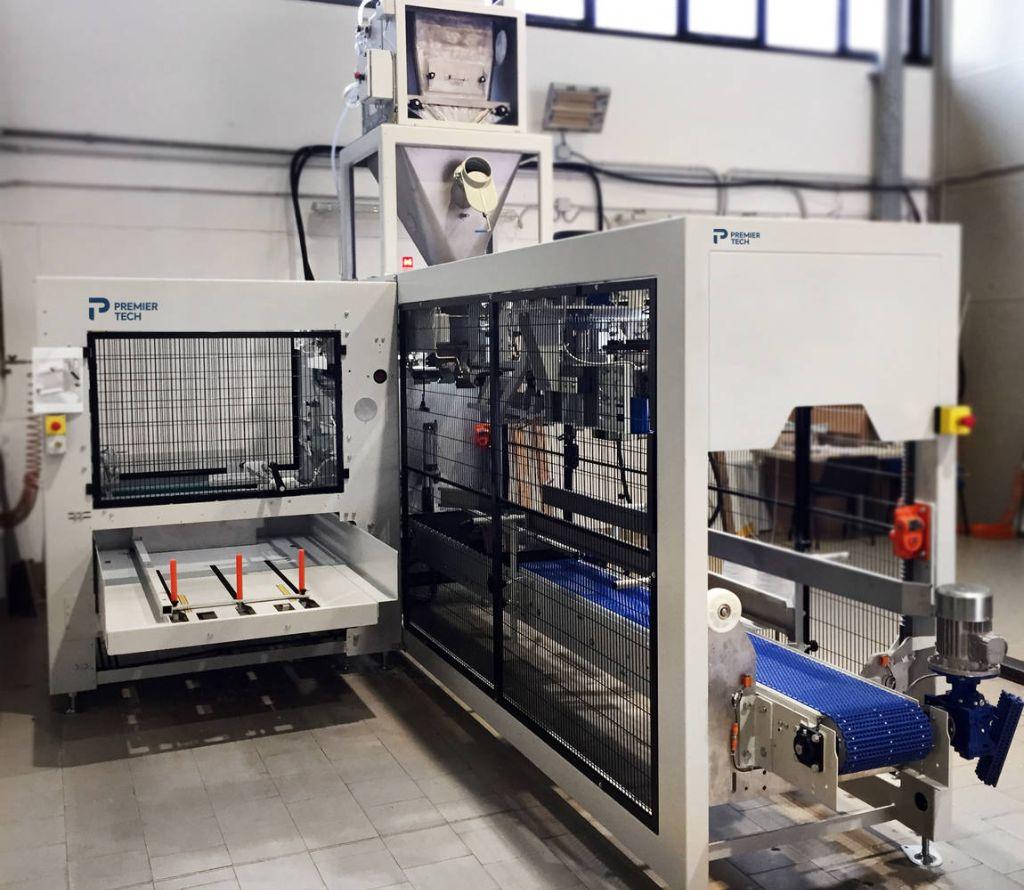

High-speed Open-mouth Bagging Machine up to 25 bags/min | OML-1140Get latest price

They can handle bulk products like animal feed, sugar, rice, starch, fertilizers, seeds, and plastic pellets.

The OML Series features three fully automatic models to fit your different packing, floor space, and speed requirements and budget. They come equipped with our gross or net weighing systems for optimal system performance.

• Speed: up to 25 bags per minute (1400 per hour)*
• Bulk materials: granules, powders, pellets, fibers, flakes, coarse aggregates
• Bag types: gusseted, gusseted flat bottom, and pillow
• Bag materials: paper, PE, laminated and non-laminated woven PP
• Bag weight:  5 to 50 kg (11 to 110 lb)

Features

Versatile

• Adjustable spout opening to fit multiple bag sizes
• Can handle various product densities and weights as well as bag types and materials

Performant

• Controlled bag handling to prevent product contamination
• Detection system to confirm bag is correctly placed to avoid product spillage
• Minimized dust emission for cleaner operations
• Excellent machine accessibility, allowing cleaning and maintenance to be carried out quickly and effectively

Easy to use

• Total control of the bag during the entire cycle
• Programmable logic controller (PLC) with a user-friendly touchscreen operator interface for easy operation, troubleshooting, and error code reading
• Quick installation

Options

• Stainless steel construction to withstand corrosive environment
• Double-walled, dust-tight spout
• Product de-aeration and posing
• Compatible with all common types of bag-closing and sealing devices
• Closed bag "push off" (top or bottom first) and bag turning devices (kicker or in-line turner)
• Tool-less changeover for multiple bag sizes
• Weighing system and feeding hopper adapted to your application
• Gusset retention and reforming

Additional option for the OML-1080:

• VAKU de-aeration system to extract air from the bag without disturbing its content and ensure precise weights

Specifications

Typical footprint

• from 4300 to 6400 mm L x 2720 to 3500 mm W (169 to 252" x 107 to 138")*

Bag dimensions

• 250 to 700 mm W x 480 to 1100 mm L*

Electrical requirements

• 380/400V/3PH/50Hz (other voltages available)

Air pressure requirements

• 5.5. to 6 bar

Ambient temperature

• 5°C to 40°C (40°F to 105°F)
