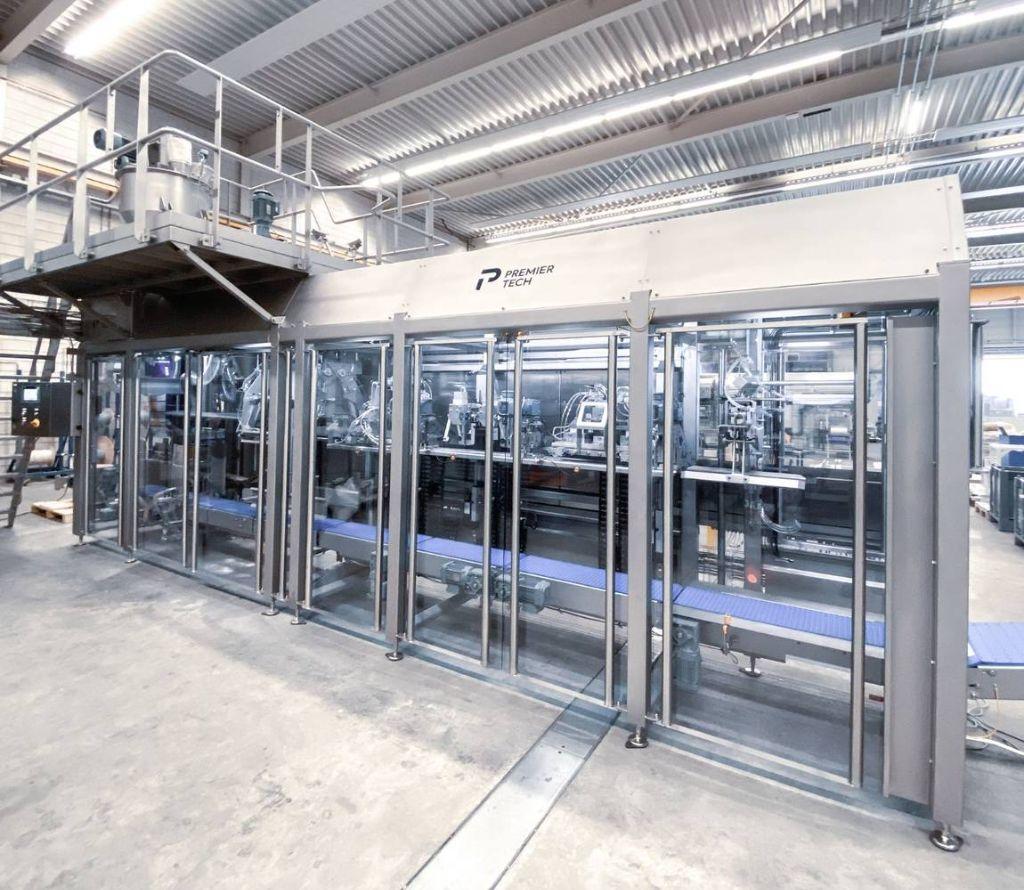

Hygienic Open-mouth Bottom-up Filling System 7 bags/min | BFH SERIESGet latest price

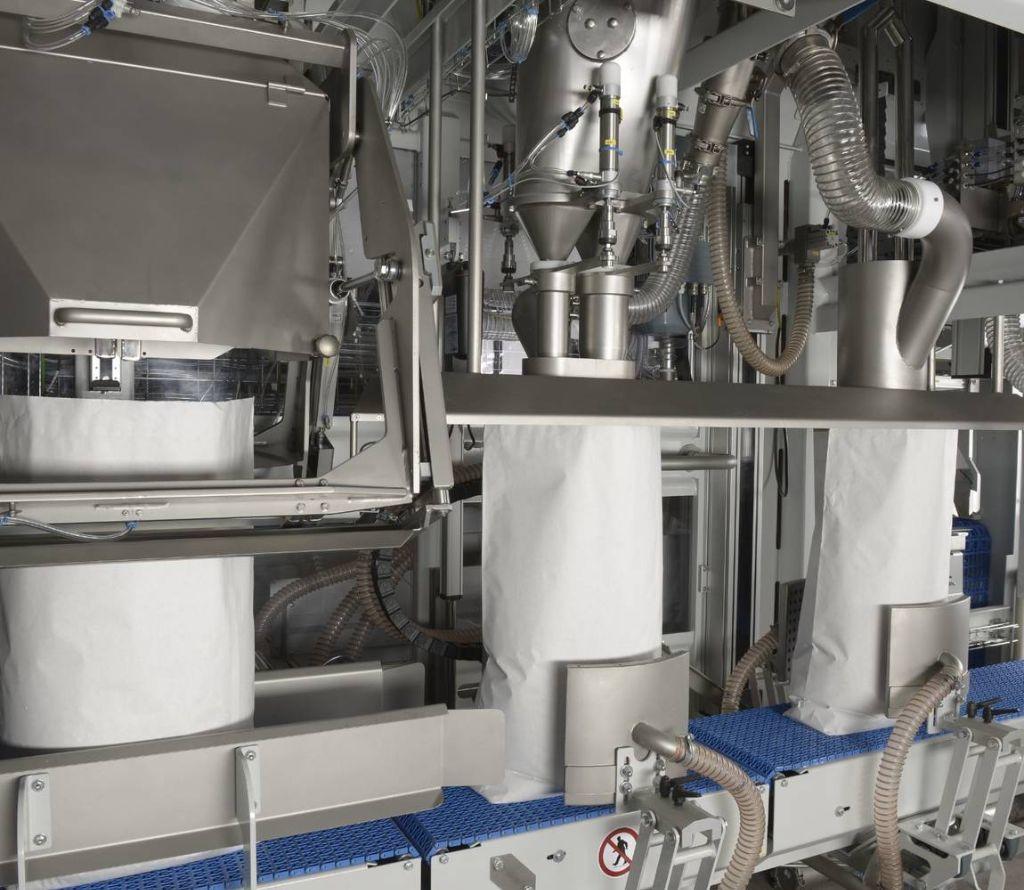

Once the bag is placed, the filling spout moves the bag down the vertical filling screw during the filling cycle. The machine maintains a minimal distance between the filling point of the vertical filling screw and the product to significantly minimize dust emission and reduce product aeration.

Easy to clean and maintain, this machine offers fast changeover times and minimal dust emission, meaning more money in your pocket.

The patented bottom-up bagging system can be configured with single, single with post dosing, or double spouts.

• Speed: up to 7 bags per minute (420 per hour)
• Bulk materials: powders and granules
• Bag types: pillow, gusseted, and block and cross bottom
• Bag materials: woven PP, PE, and paper with inner liner
• Bag weight: 22 to 66 lb (10 to 30 kg)

Features

Safe and sanitary

• The frequency / servo-control driven vertical screw fills powdery products hygienically, accurately and quickly
• Minimal dust emission and hygienically welded product contact parts
• Excellent accessibility for cleaning and maintenance
• No machine fasteners in critical product contact zones
• Bag top can remain closed during bag transportation
• ATEX-compliant design

Simple, safe, and durable design

• Control area separated from the functional bagging zone
• Cables to integral control centres run at the rear of each machine module
• Customisable system configurations
• Compact sturdy design suited for tiny spaces
• User-friendly touch control panel with integrated graphical user interface

High performing

• High weighing accuracy (up to 10 grams)
• Product de-aeration
• Field-proven technology for high system availability
• Large bag magazine for long production runs

Options

• Gas flushing
• Product sampler
• Automatic and semi-automatic versions
• Inert gas packing
• Servo-controlled dosing
• Stainless steel construction
• Standard bag marking systems
• Compatible with multiple bag closing systems (fully integrated)
• Extra positions for empty bag piles
• Bag turning
• Closed bag push-off
• Empty bag labeling

Specifications

Typical footprint:

• 7576 mm L x 3358 mm W x 4816 mm H (298" x 132" x 190")

Bag width:

• 400 to 600 mm (16" to 23.6")

Bag length:

• 700 to 1000 mm (27.5" to 39")

Power requirements:

• 400V/3PH/50Hz (other voltages available)

Ambient temperature:

• 5 °C to 35 °C (40°F to 95°F)
