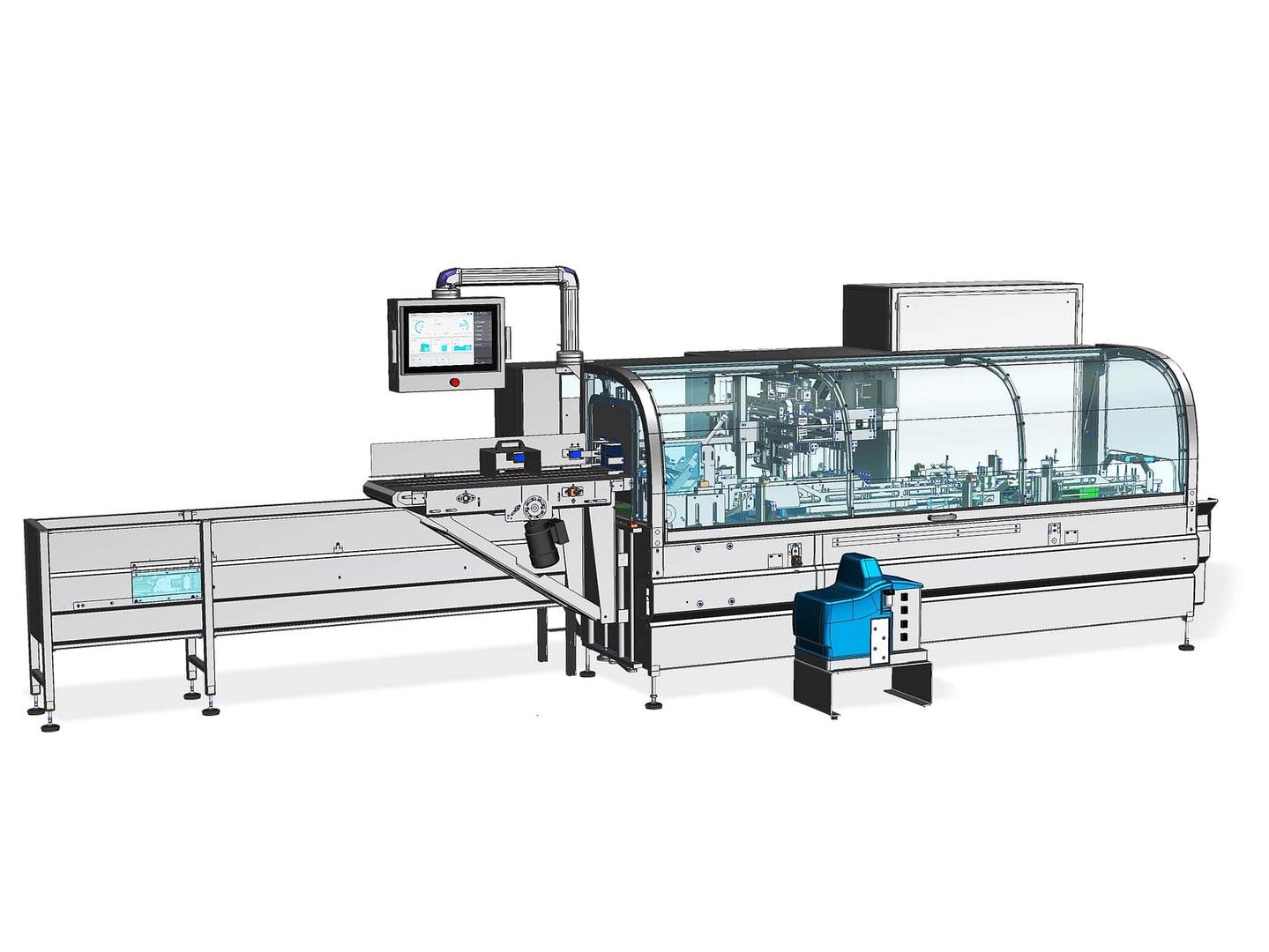

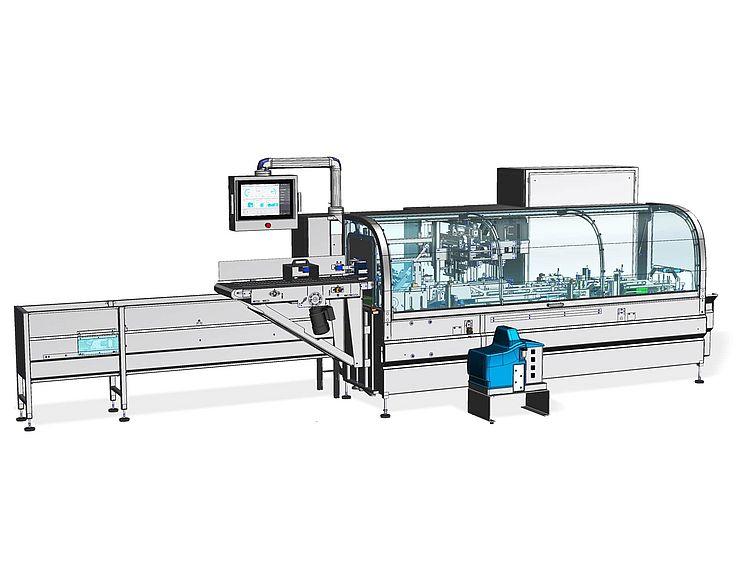

Horizontal Cartoning Machine CMH-I

Name: Horizontal Cartoning Machine CMH-I
Brand: J.L.Lennard

Supplier: J.L.Lennard

The Horizontal Cartoning Machine CMH-I is engineered for efficient, hygienic and ergonomic cartoning operations in packaging environments.

Fast, tool-free format change with hygienic and ergonomic design.

Overview

The Horizontal Cartoning Machine CMH-I is an intermittent motion cartoning machine designed for hygiene, accessibility, and adaptability. Its construction features stainless steel components in product contact areas and ergonomic loading heights for optimal operation. A compact form ensures excellent accessibility for maintenance and setup through a single-door access.

Key Features

Trouble-free operation with critical folding box materials due to forced box erection mechanism
Simple mirrored installation with centralised operator access
Dual inserts with upper guides
Tool-free, quick and reproducible format changes, with options for further simplification
Intuitive, user-friendly interface with graphic support in the respective national language
Compliant with hygienic design standards
Supports packing of soft bags and stacked bags with optional product conditioning and top confining units
Efficient box erection to reduce disturbances, supporting left and right orientation for mirrored setup

Technical Data

Box size A (mm)	80 – 210
Box size B (mm)	20 – 120
Box size H (mm)	110 – 300
Special sizes & capacities	Available upon request

The frame is available in stainless steel upon request. Format changes are possible from one side and can be extended to semi- or fully-automatic adjustments.
