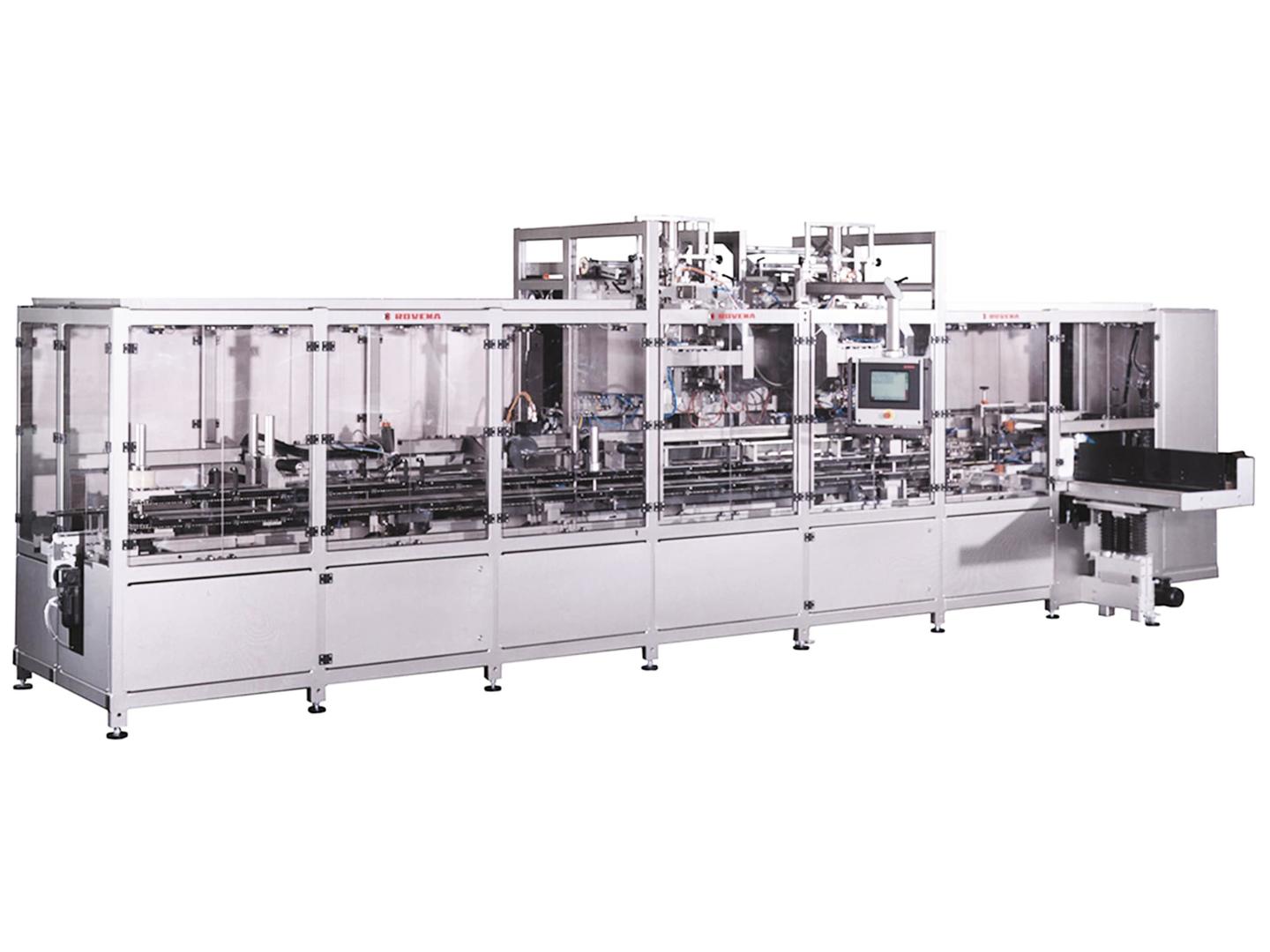

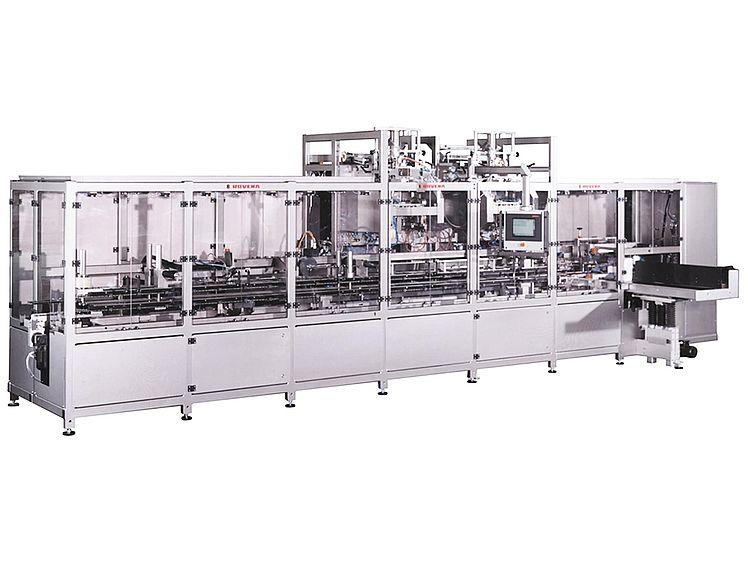

Vertical Cartoning Machine CMV Bag-in-box

Name: Vertical Cartoning Machine CMV Bag-in-box
Brand: J.L.Lennard

Supplier: J.L.Lennard

The Vertical Cartoning Machine CMV Bag-in-box is a compact, flexible solution for efficiently packaging bags directly into folding boxes.

Extremely compact and flexible bag-in-box cartoning with fast format changeover.

Overview

The vertical cartoning machine offers a compact and adaptable packaging system, with one or two integrated Form Fill and Seal machines, eliminating the need for additional conveyors or transfer systems. It is capable of producing up to 120 folding boxes per minute, with vertical transfer of bags directly into boxes for optimal efficiency.

Key Features

Supports various bag top shapes.
Compact and flexible design for space-saving installation.
Safe and secure box erection using a powered rotation picker and forced box erection system.
Gentle, oscillating chain movements ensure secure product handling.
Programmable 3-dimensional format change for fast, reproducible product changeover.
Intuitive, graphical user interface in national language for easy operation.
Optional modules for compacting products, achieving up to 95% box fill ratio—ideal for products like tea or aerated powders.

Unique Advantages

In addition to its patented automatic box erection and format adjustment, the machine can handle product compaction within the box, offering higher filling densities than typical horizontal machines.

Bag and Box Configurations
