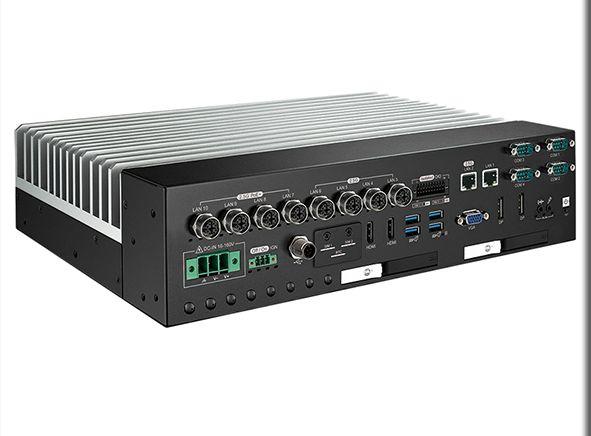

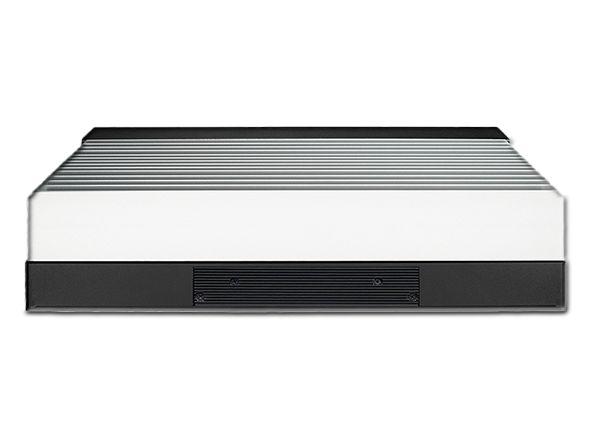

In-Vehicle Computer | IVX-1000 Get latest price

Backplane Systems Technology is pleased to present VECOW’s IVX-1000. The VECOW IVX-1000 is a cutting-edge in-vehicle computing workstation designed to meet the demanding needs of the mining industry. Powered by Intel® Core™ i9/i7/i5/i3 processors from the 14th generation, this workstation-grade platform integrates the Intel® R680E PCH, supporting CPUs with a maximum TDP of 65W. To enhance AI capabilities and computing productivity, the IVX-1000 optionally supports advanced NVIDIA® Quadro® MXM graphics.

Engineered for the harsh conditions of mining environments, the IVX-1000 features a fanless design, ensuring dust resistance and compliance with EN50155:2017 standards. Its robust 16V to 160V DC power input, with 4kV DC isolation and up to 500V surge protection, ensures stable operation even in fluctuating power conditions. The workstation also includes software ignition power control and optional UPS support for uninterrupted performance.

The IVX-1000 excels in connectivity, essential for mining operations. It boasts 8 independent 2.5GigE LAN ports, including 4 with IEEE 802.3at PoE+, along with an additional GigE LAN port. This ensures reliable communication and data transfer, crucial for real-time monitoring and control in mining operations. Multiple wireless configurations, including 5G, WiFi, 4G, and LTE, provide versatile communication options for remote mining sites.

Security and network reliability are paramount in mining applications. The IVX-1000 supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0, addressing these critical requirements. For AI-driven tasks, the workstation features Intel Deep Learning Boost and the Intel Distribution of OpenVINO toolkit. The optional VHub AIoT Solution Service further augments its AI capabilities, facilitating advanced edge AI applications.

With its rugged reliability, high-performance computing, and versatile connectivity, the VECOW IVX-1000 is the ideal solution for enhancing productivity and safety in mining operations.

Key Features:

·         Workstation-grade Platform : Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) running with Intel® R680E PCH supports max 65W TDP CPU

·         Optional supports outstanding AI computing productivity by advanced and compact NVIDIA® Quadro® MXM graphics

·         16V to 160V DC Power Input with 4kV DC Isolation, up to 500V Surge Protection, Software Ignition Power Control, optional UPS supported

·         Fanless design for railway in-vehicle applications, fully compliant with EN50155 : 2017

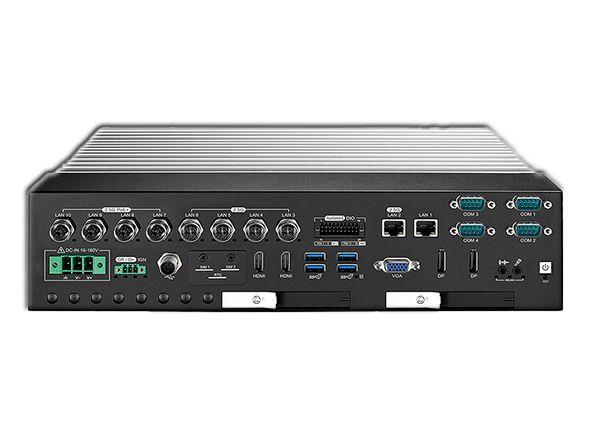

·         8 Independent 2.5GigE LAN M12 X-coded with 4 IEEE 802.3at PoE+, 1 2.5GigE LAN, 1 GigE LAN, 4 Isolated COM

• 2 Front-access 2.5"SSD/HDD Tray, multiple 5G/WiFi/4G/3G/LTE/GPRS/UMTS
• Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0
• Optional VHub AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
