Railway Computer | Nuvo-2615RLGet latest price

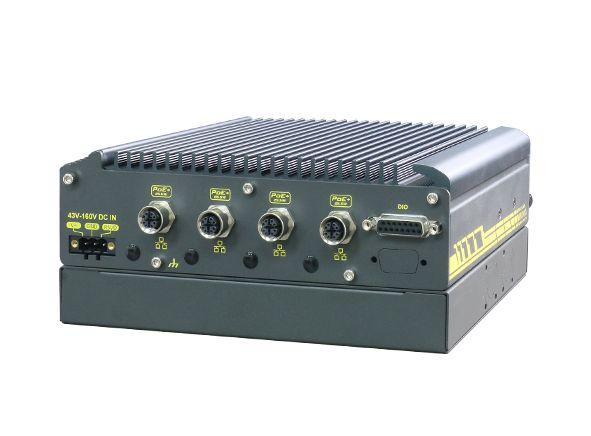

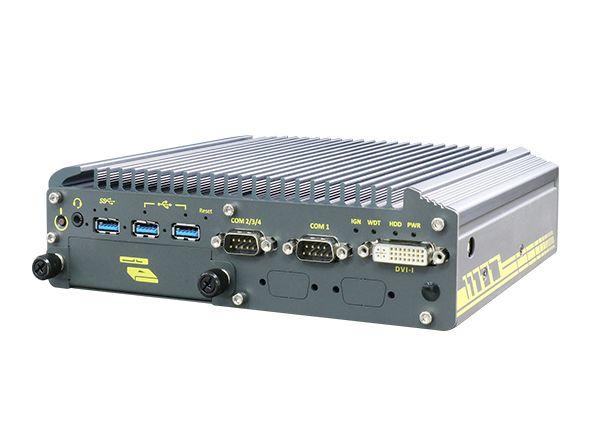

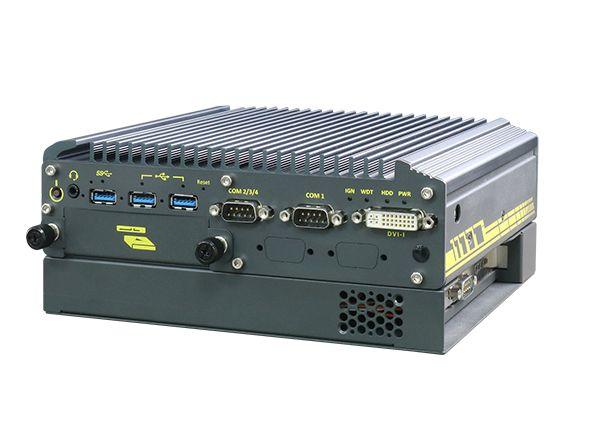

Backplane Systems Technology is pleased to present Neousys Nuvo-2615RL. Railway technology is constantly evolving, and NEOUSYS' Nuvo-2615RL series is leading the charge with its innovative features, ensuring robust performance in challenging environments. As a state-of-the-art railway computer, it offers video-based rolling stock applications such as NVR and video analytics, catering to modern transportation needs.

What sets the Nuvo-2615RL apart is its advanced thermal design, ensuring fanless operation even under extreme temperature variations. The device can comfortably function within a temperature range of -40°C to 70°C, living up to the EN50155 OT4 class standards. This ensures maximum CPU performance and efficient PoE+ delivery even in demanding conditions.

Understanding the unpredictable nature of railway conditions, from unexpected power outages to fluctuating voltages, the Nuvo-2615RL is engineered with resilience in mind. It boasts an isolated wide DC input range (43V to 160V) and a SuperCAP UPS, ensuring uninterrupted operation for over 30 seconds without an external power supply. In cases of prolonged power outages, an internal MCU initiates a software shutdown, protecting both hardware and critical data.

At its core, the system is powered by the Intel® Elkhart Lake Atom® x6425E quad-core CPU, which offers a remarkable 1.8x performance boost compared to its predecessor, Apollo Lake. This powerhouse is further equipped with 4x PoE+ GbE ports, facilitating seamless IP camera connectivity. Storage needs are met with a 2.5" HDD tray and an M.2 SATA SSD. Additionally, expansion options include two mini-PCIe sockets and an M.2 socket for mobile broadband modules.

In essence, the NEOUSYS Nuvo-2615RL series epitomizes the future of rugged transportation computers, tailored for today's vision-based railway applications.

Key Features:

• Compliant with EN 50155 mandatory tests and EN 45545-2
• Rugged -40°C to 70°C fanless operations, compliant with EN 50155 Class OT4
• 43V to 160V wide-range DC input with 1500Vdc insulation
• Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/ 3.0GHz 12W processor
• 4x PoE+ GbE ports via M12 x-coded connectors
• Built-in SuperCAP UPS for power interruptions > 30 seconds (Nuvo-2615RL only)
• 1x front-accessible 2.5" 15mm HDD tray and 1x M.2 2280 SATA SSD
• 2x full-size mini-PCIe sockets and 1x M.2 3042/3052 B Key
