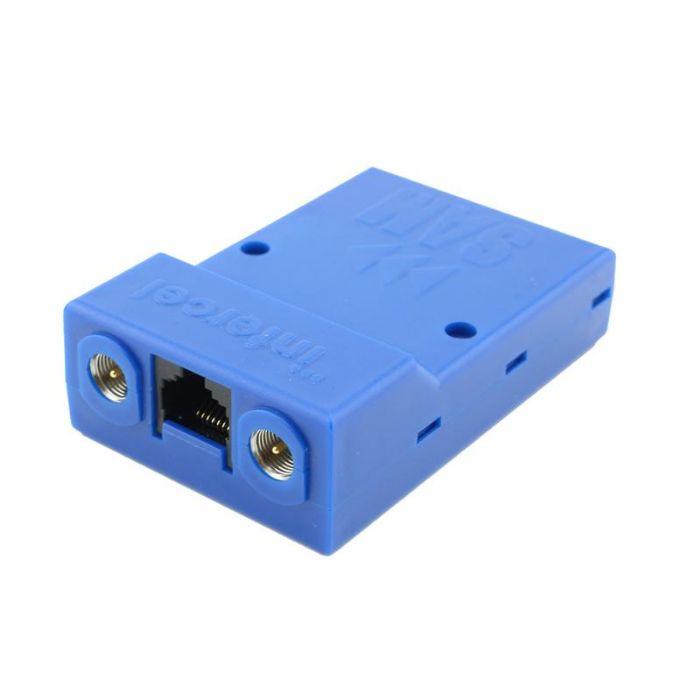

The Smart SAM2S GPRS modem will retain the current features of the SAM2S. In addition, the Smart SAM2S will have a higher temperature rating and will incorporate the Intercel GPRS stack for easy transition from Circuit Switched Data to Packet Switched Data.
The Smart SAM2S’s rugged design makes it ideal for industrial M2M applications such as metering, security, SCADA, and industrial monitoring.
Features of this product
- Dual-band GSM/GPRS 900/1800MHz
- GPRS class 10
- GSM data, SMS and Fax
- Standard and customized AT commands
Specifications of this product
- Dimensions: 79mm x 52mm x 24mm (front)/19mm (back)
- Weight: 73g
- GSM Modes: GSM Circuit-switched data, asynchronous, transparent and non-transparent modes.
- SMS: Mobile terminate/Originate and cell-broadcast
- Max output power: 2W @ 850/900MHz, 1W @ 1800/1900MHz
- SIM card Voltage: 1V8 and 3V
- Size: Full size
- Max output power: 2W @ 850/900MHz, 1W @ 1800/1900MHz
- Standard AT command: Yes
- Customized AT command: Yes
- GSM/GPRS: 900/1800MHz
- GPRS class: 10, P channel supported, CS1 to CS4
- Max output power: 2W @ 850/900MHz, 1W @ 1800/1900MHz
- Input voltage: 5V to 30V
- Current consumption: Idle: 25mA @ 12V & Average in Use: 90mA @ 12V
- Operating temperature: -30C° to + 65C°
- Storage temperature: -40C° to + 85C°
- Operating Humidity: 5-95%
