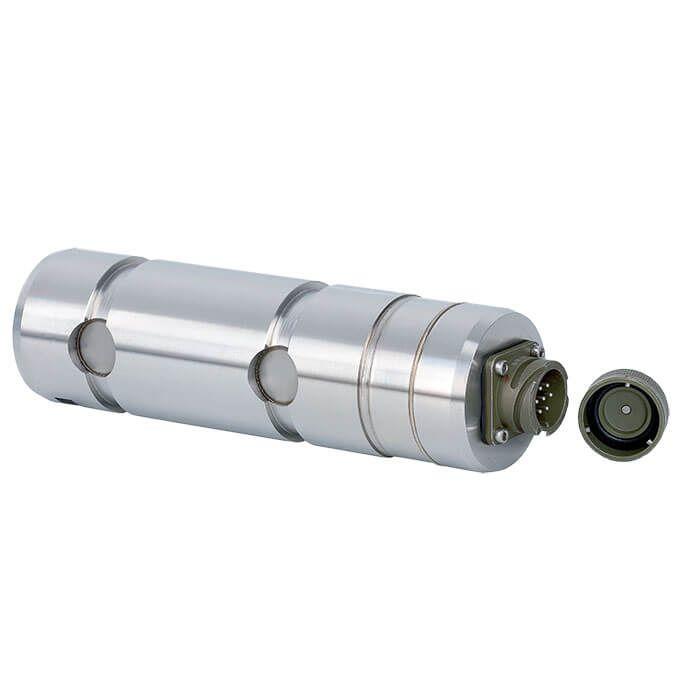

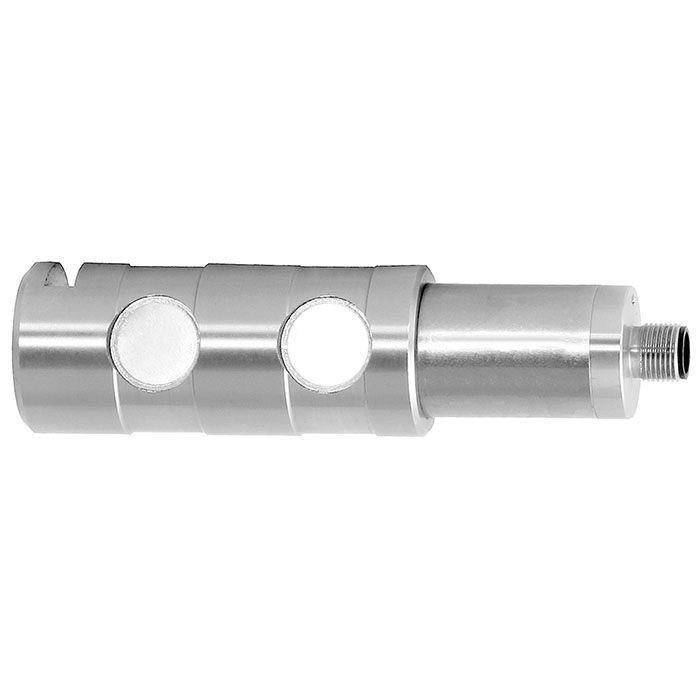

Load Pin | Model F5301, F5308Get latest price

Applications for this product

• Crane systems and hoists
• Industrial weighing technology
• Machine building and plant construction,
  manufacturing automation
• Theatre and stage construction
• Chemistry and petrochemistry

Features of this product

• Measuring ranges 0 ... 5 kN up to 0 ... 200 kN
• Corrosion-resistant stainless steel design
• Integrated amplifier
• High long-term stability, high shock and vibration
  resistance
• Good reproducibility, simple installation

Why Choose This Product

• The force sensors of this series are often used in hoist and
  crane systems, as well as for special machine constructions,
  in pulleys, rope winches, fork heads and rolling bearings.
  Further application areas are mining industry, production
  automation and stage systems. Appropriate technical and
  regional approvals are available as an option.
• Load pins are designed for static and dynamic measurement
  tasks. They directly replace existing bolts and determine
  the tension and compression forces in a wide range of
  applications.
• These load pins are made of high-strength, corrosionresistant stainless steel 1.4542, which is particularly suitable
  for their application areas. Besides the standard active
  current and voltage outputs (4 ... 20 mA / 0 ... 10 V) also
  digital outputs (CANopen®) are available as output signals.
  Redundant output signals are possible.
• These load pins are a part of our certified product ELMS1
  overload protection (DIN EN ISO 13849-1 with PL d/Kat. 3
  and DIN EN 62061 with SIL 2).

Specifications of this product

• Rated force Fnom kN: 5, 10, 20, 30, 50, 70, 100, 200 others on request
• Relative linearity error dlin: ±1 % Fnom / ±1.5 % Fnom / ±2 % Fnom
• Material of measuring device: Stainless steel corrosion-resistant, ultrasonically tested 3.1 material (optional 3.2)
• Output signal: 4 … 20 mA, 2-wire
  4 … 20 mA, 3-wire
  4 … 20 mA, redundant
  DC 0 … 10 V, 3-wire
  2 x DC 0 … 10 V redundant
  CANopen® Protocol in accordance with
  CiA 301, device profile 404, communication
  services LSS (CiA 305), configuration of the
  instrument address and baud rate Sync/Async,
  Node/Lifeguarding, heartbeat; zero and span
  ±10 % adjustable via entries in the object
  directory
• Full specifications available on the relevant data sheet
•
