Medium Excavator | SK225SR-7Get latest price

Introducing Kobelco’s powerful new ultra-compact 23-tonne range, featuring the cutting-edge Series 7 cabin for unrivalled ergonomics and operator comfort.

Equipped with a high-performance Tier 3 engine, these machines deliver an impressive 127kW output with 22% higher torque than previous models and eliminate the need for DPF or AdBlue.

These state-of-the-art Short Radius machines are built to excel in the tightest working conditions, boasting reinforced durability and exceptional stability for improved productivity.

Features of this product

• Powerful Tier 3 engine without the need for a DPF or AdBlue

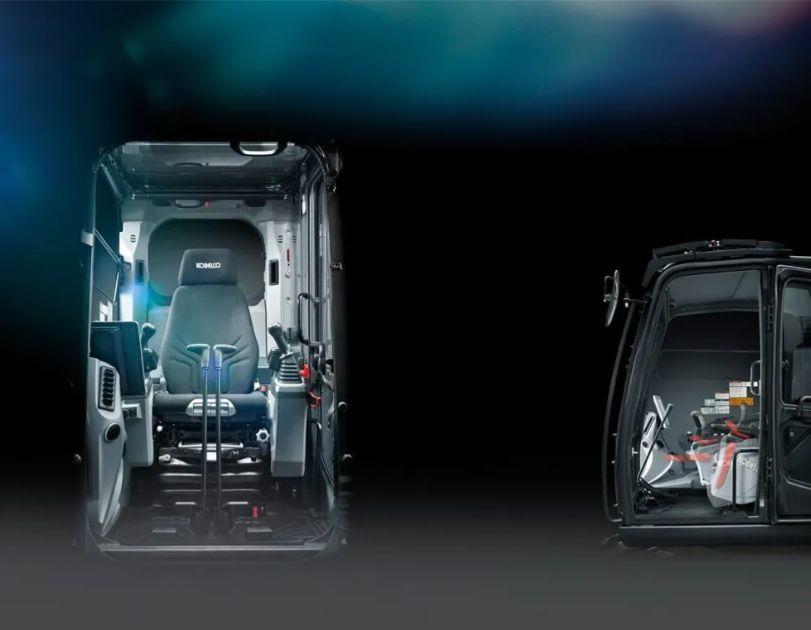

• Enhanced Series 7 cabin design, ergonomics and safety features.

• 2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty


Specifications of this product

Transport Dimensions
Length, Width & Height 8.69 x 2.8 x 3.15 m
Operating Weight 23,300 kg

Refilling Capacities
Fuel Tank 330 L
Hydraulic Oil Tank 114 (230) L

Working Range
Max. Digging Depth 6.58 m
Max. Digging Reach 9.70 m

Engine
Rated Power Output 127 kW
Rated Torque 805 Nm

Breakout Force
Bucket Digging Force 132 kN
Arm Crowding Force 96.8 kN

Hydraulic System
Max. Pump Flow 2 x 220 + 40.6 + 20 L/min
Standard Auxiliary
