Muthing Mulcher | Series MU-L Flail MowerGet latest price

Features

STANDARD EQUIPMENT

• Manufactured from High Quality QSt/E Steel with multi position Headstock
  Cat. I + II for Front or Rear mounting with mechanical side shift;

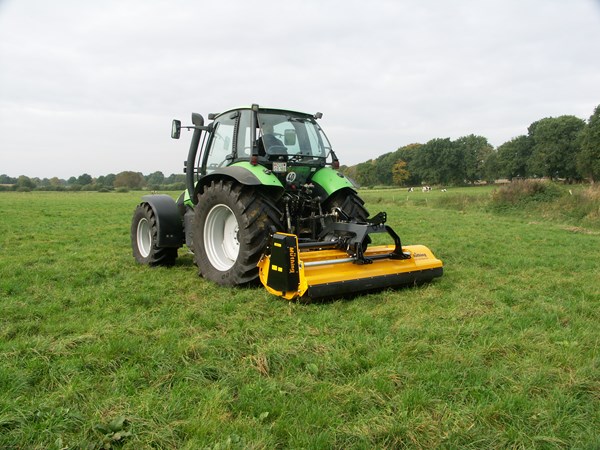

  MUL 180 – 280: 56 cm (as shown)
• Gearbox with integrated over run clutch and through drive for 540 / 1000 r.p.m.
• Belt protection with tension measuring slot
• High tempered “M” Hammer flails to ensure clean cut and maximum
  shredding using less power
• Spiral Rotor with specially formed flail lugs to protect against damage from obstacles and internal bearings protecting against dirt, wear and tear
• Roller with internal bearings System “Starinth” and well rounded edges to preserve the soil and turf and to carry the flail, adjustable to different heights; Wearing skids, High tempered spring steel one way  protection flaps in front
• Optimised distance between the outer rotor circle and the roller guarantees perfect contour following  and an even quality of cut
• Purposely designed hood in conjunction with high rotor and cutting speeds
  and removable shredding bar spreads the shredded material evenly behind
  the roller giving an excellent Mulching and Patented removable shredding bar
  – System: “Shark Fin”.
• P.T.O. shaft and Guarding to ISO Standards



• Shock absorbing linkage springs (for Front Mounting recommended)
• Hydraulic Weight Transfer MU-SOFA®, for Front mounting recommended
• Hydraulic side shift (1 double acting spool valve required)
  MUL 180 – 280 : 56 cm lifting range
• Height adjustable rubber wheels, 360º swivel with adjustable width for rear mounting (replacing the roller or in addition to the roller)
• Warning signs and lights (dealer fit)
• Hood Wear plate (Delivery time to be asked for)
• Additional Carbide wearing skids, removable (Delivery time to be asked for)
• Second patented removable shredding bar – System: “Shark Fin”
• Alternative flails and rotor systems (3 back to back Flails, M Shackle Flails)
• Working hours meter with electronic sensor



TECHNICAL DATA
