Panda.26 Scientific sCMOS CameraGet latest price

Why chose this product:

With the pco.panda 26 sCMOS camera you get both high resolution and the option of a monochrome or colour sensor, either of which may be needed for a multitude of microscopy applications.

There are many details that make the pco.panda 26 sCMOS camera outstanding. Its small 2.5 x 2.5 µm² pixels are an excellent fit to use the resolution capacity in optical systems such as microscopes even with low magnification. Thanks to the pco.panda 26’s true charge domain global shutter, you can achieve a remarkably low readout noise and dark current.

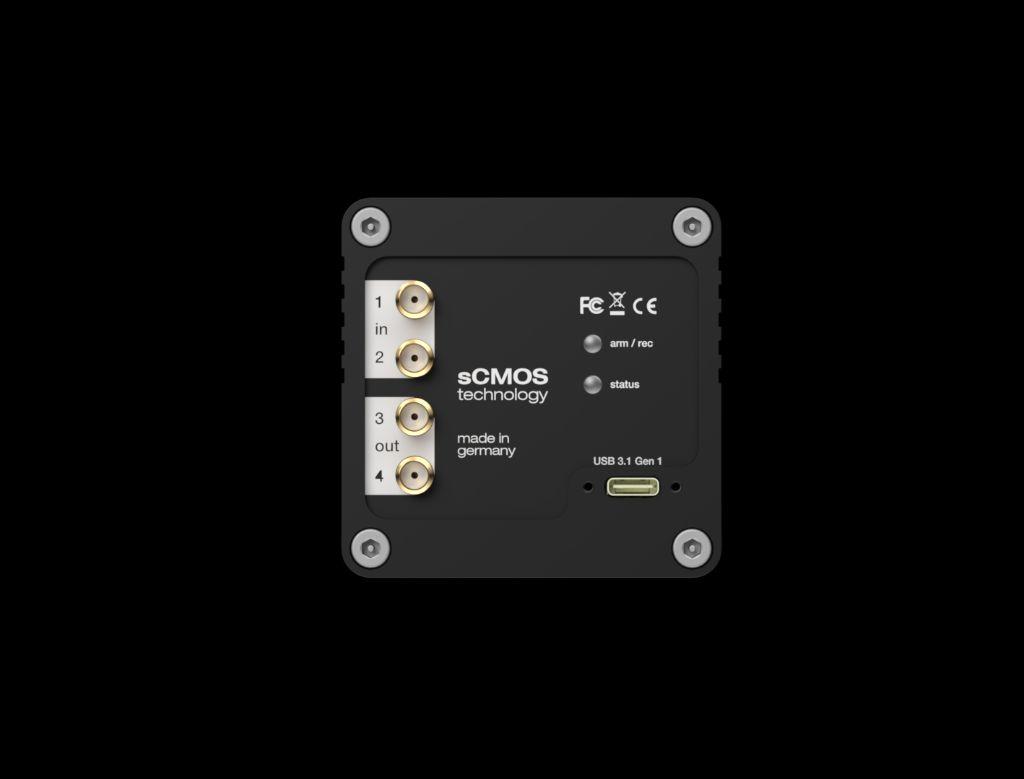

The housing design and interface provide easy integration. All pco.panda cameras have ultra-compact dimensions, and no external power supply is needed, which allows power and fast data transfer through one single USB 3.1 cable.

Applications for this product

• Brightfield and fluorescence microscopy
• Digital pathology
• High-speed brightfield ratio imaging
• High through-point and and high-content screening
• 3D Metrology
• Industrial quality inspection

Features of this product

• Ultra-compact design
• High-resolution 5120 x 5120 pixel
• Sealed electronics for dust and dirt protection
• Spider-less mounting with only 6.18mm to image plane
• Single cable solution - data and power supply via USB.3.1
• Available in mono and colour
• Global snapshot shutter
• true charge domain global shutter
• exposure time 5 µs … 20 s
• pixel size 2.5 µm x 2.5 µm
• dynamic range 66 dB
• frame rate 7.1 fps @ 26 MPix
• up to 65 % quantum efficiency
