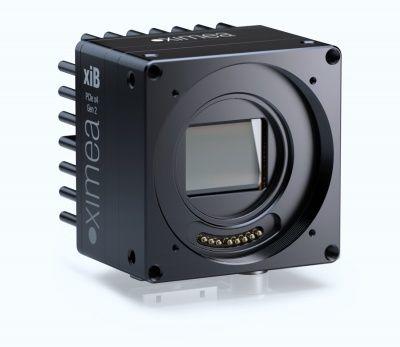

PCI Express CMV12000 Machine Vision Camera

Name: PCI Express CMV12000 Machine Vision Camera
Brand: SciTech Pty Ltd

Supplier: SciTech Pty Ltd

4K, Compact, 12 MP Colour CMOS High Speed PCIe Camera with AMS SMOSIS CMV12000. Large sensor streaming with lowest latency.

PCI Express Cameras-high speed

Call for more details

Applications for this product

Flat panel inspection (FBD)
Printed circuit board examination (PCB)
Solar panel analysis
Persistent stadium and border security
Wide area surveillance
Cinematography
Sports and entertainment
360 panorama
UAV and autonomous
Unmanned vehicles
Aerial or city mapping

Features of this product

Version with flat-ribbon flex cable (xiX line) ideal for embedded vision systems
PCIe speed of 20Gbit/s allows 133 Fps @ 8b it or 100Fps @ 10 bit
12MP 4096 x 3072 Pixel resolution
1.75" (APS-C) Sensor size

Why Choose This Product

Models with NIR enhanced or taped glass sensors available
Industry standard iPass connector
No frame grabber required - DMA transfer - no CPU load
Flexible GPIO with optoisolated and TTL options

Specifications of this product

C-mount option for smaller sensors
Compact dimensions - 60 x 60 x 38 mm
Fast PCIe generation 2, 4 lane 20 Gpbs interface

xiB Monochrome and Color models:

Model	Sensor	Resolution	Pixel µm	ADC bits	FWC e-	Sensor Diagonal	Power Watt	DR dB	Frames per sec ⁽¹⁾
CB120MG-CM	ams CMOSIS CMV12000	4096 x 3072, 12 MP	5.5	8,10,12	13500	28 mm	8 W	60	133, 103, 86
CB120CG-CM	ams CMOSIS CMV12000	4096 x 3072, 12 MP	5.5	8,10,12	13500	28 mm	8 W	60	133, 103, 86
CB200MG-CM	ams CMOSIS CMV20000	5120 x 3840, 20 MP	6.4	12	15000	41 mm	6 W	66	33
CB200CG-CM	ams CMOSIS CMV20000	5120 x 3840, 20 MP	6.4	12	15000	41 mm	6 W	66	33
CB500MG-CM	ams CMOSIS CMV50000	7920 x 6004, 48 MP	4.6	12	16000	45 mm	9 W	64	30, 26, 22
CB500CG-CM	ams CMOSIS CMV50000	7920 x 6004, 48 MP	4.6	12	16000	45 mm	9 W	64	30, 26, 22

(1) Full resolution at RAW 8 bits, 10 bits and 12 bits; Server computers with bigger PCIe TLP packet size can increase the throughput by additional 10%.

Let SciTech Pty Ltd provide you with a quote
