Robotic Palletising Unit (Telescopic Height) CPL07

Name: Robotic Palletising Unit (Telescopic Height) CPL07
Brand: Elite Oceania Pty Ltd

Supplier: Elite Oceania Pty Ltd

Quick set up modular palletising unit with a maximum payload of 30 kg and stacking height up to 2400 mm, designed to maximise vertical pallet capacity and optimise end-of-line operations where higher stacking is required.

High-reach palletising

Applications of this product

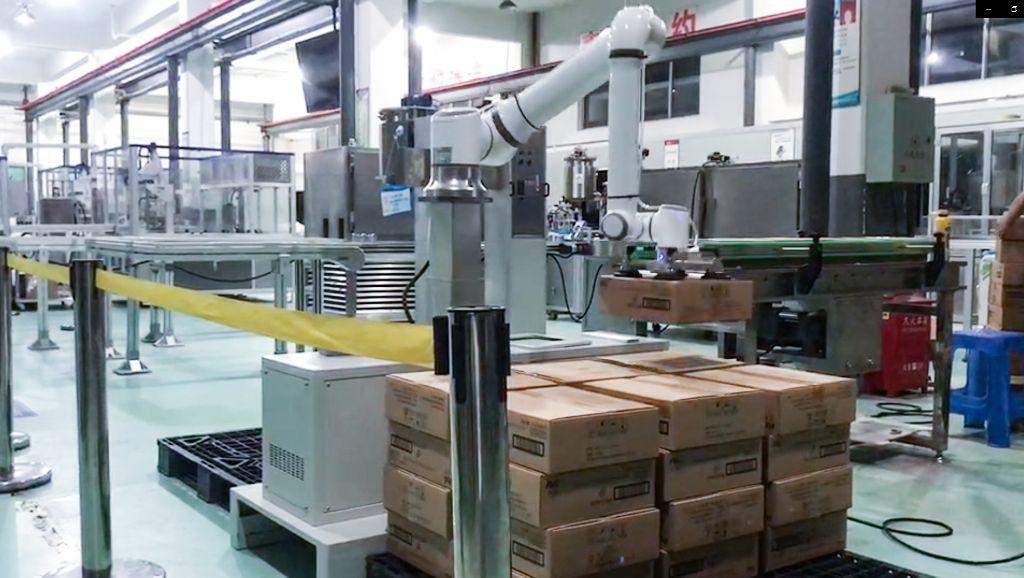

The CP Series CPL07 is designed for end-of-line palletising and high-stack pallet applications across a wide range of industries. Typical applications include:

Carton and box palletising
End-of-line packaging and dispatch operations
Mixed and single carton palletising
Warehouses and logistics environments requiring higher pallet loads
Medium-scale palletisation with extended vertical stacking
De-palletise>>value add>>Re-palletise
Operations requiring frequent changeovers between pallet patterns or product sizes

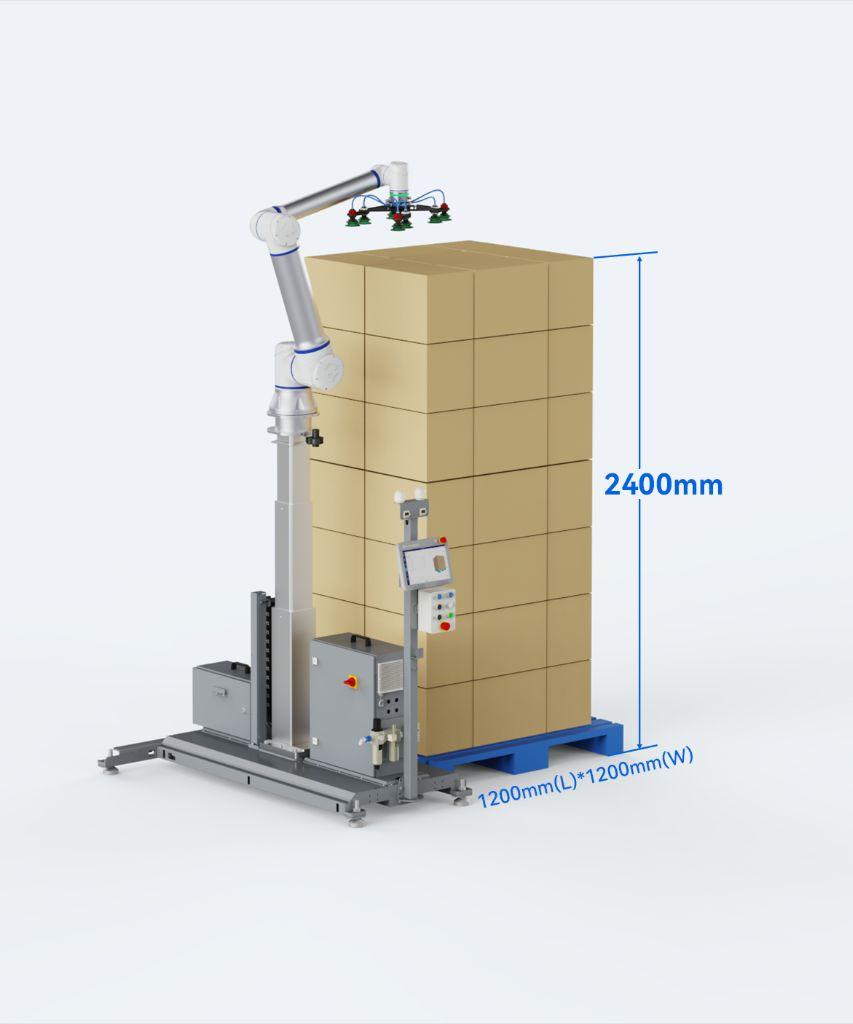

The CPL07 supports payloads from 20–30 kg, pallet sizes up to 1200 × 1200 mm, and stacking heights up to 2400 mm, making it ideal for facilities aiming to maximise pallet density without increasing floor space.

Features of this product

Modular design with telescopic column for extended stacking height
Collaborative robot arms (CS620, CS625, CS530H)
Embedded palletising software with intuitive wizard-based setup
No programming required
Fast deployment (initial setup < 1 hour; task switch < 1 minute)
Up to 14 boxes/min with dual vacuum cups
EOAT compatibility with single or dual vacuum grippers
Optional safety scanners with reduced mode and safety stop
Compact footprint despite increased stacking height
3D real-time palletising preview and live process monitoring
Single and double track palletising support

Why choose this product

Increased pallet capacity: Stack up to 2400 mm to maximise pallet utilisation
Quick ROI: Typical return on investment in less than 12 months
Ease of use: No coding or robot programming skills required
High flexibility: Easily redeployed between production lines and applications
Space-efficient automation: Higher stacks without expanding footprint
Safe operation: Compliant with ISO 10218, ISO 13849, and ISO/TS 15066
Reduced downtime: Rapid changeover between pallet patterns and products
Cost-effective automation: Turnkey solution ready out of the box
Future-proof design: Modular architecture with optional accessories and upgrades
