3 Inch Solar Bore Pumps with Centrifugal ImpellersGet latest price

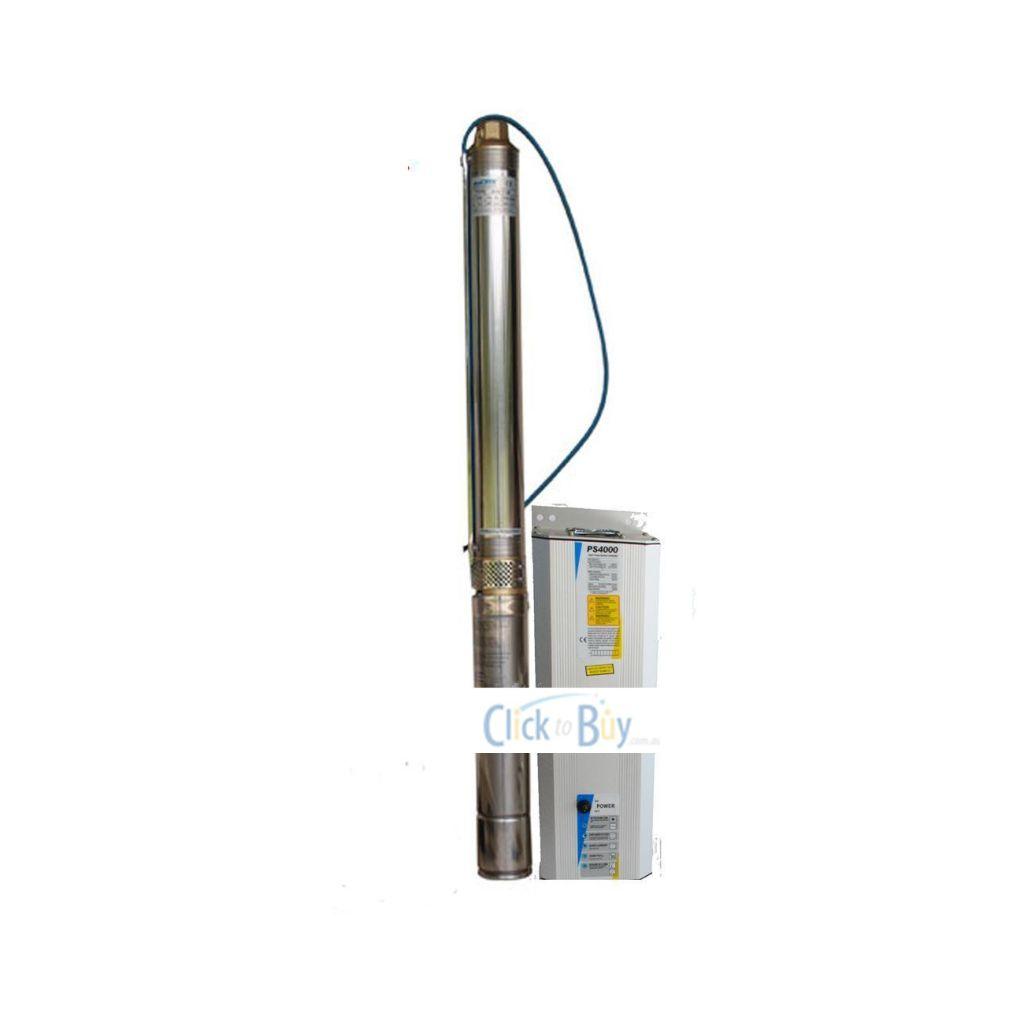

3 Three Inch Centrifugal Solar Bore Pumps

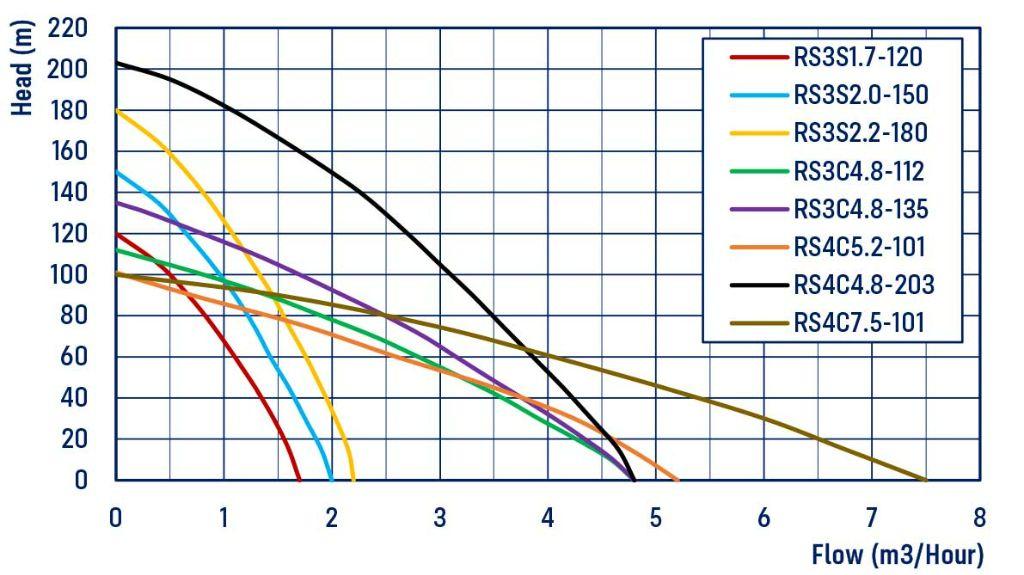

There are 2 models only of the 3" Centrifugal Solar Bore Pumps. They are the RS3C4.8-112 and the RS3C4.8-135. Please see the flow chart attached to view the head and flow for each model.

The RS3C4.8-112 has a maximum head of 112m and has a max flow of 80LPM.

The RS3C4.8-135 has a maximum head of 135m and has a max flow of 80LPM.

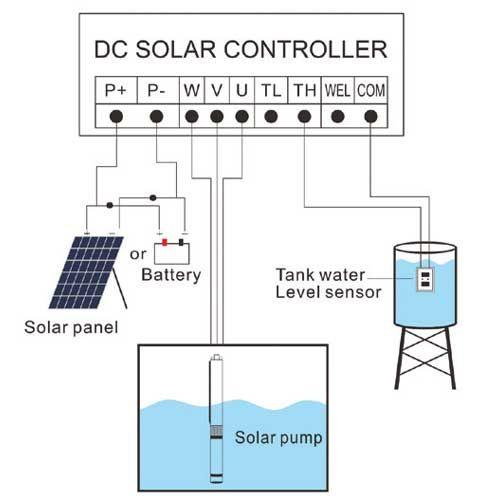

When installing the pump, ensure the pump is suspended in the clean water column free from debris and below the draw down level of the bore.

Commonly used for stock watering, tank filling, water supply and transfer.  They are not good for irrigation systems.

• Automatic restarting for minimal user intervention.  Starts and stops each morning and evening
• Loss of prime function for pump protection
• Under and over voltage protection to prevent damage to the motor
• MPPT tracking for efficient low light operation
• Soft start function to remove hammer on hydraulic system

Construction

• Stainless steel construction of the motor casing, pump casing, impellers, oil cylinder, coupling and fixings
• Quality NSK bearings
• Permanent magnet DC brushless synchronous motor
• IP 65 Controller
• 2m cable length

Pumps used down old windmill bores

View the 3 Three Inch Solar Bore Pumps at:   strongmanpumps.com.au/bore-pumps/solar-bore-pumps/reefe-solar-bore-pumps-2/
