4" 2200W 280V Submersible Solar Bore PumpPrice Guide:$2,030Get latest price

Designed for the following area:

• Solar bore pumps are high efficiency pumps specifically designed to run from solar panels which pumping water from rivers, Dams, creeks and springs and transferring water from one site to another.
• Windmill replacement (Compared with windmills, solar bore pumps are less expensive, more efficient and much easier to install and maintain). That is famous for Australian long hot dry summer days.
• Livestock watering, remote homes, cabins and small irrigation that can keeps tanks full automatically. Water is simply pumped during the day by pumping water into a tank which enabling access to water at anytime.
• Renewable energy, very cost-effective no fuel costs.

Features

• Fit 4inch bore or bigger
• The pump system come complete with Automatic Solar pump controller,5 water level sensors etc.
• Simply install &Save Energy Bill. Pump just require connect to solar panels which not require any 240V power to operate. .Note: solar panel not include;
• Solar Pump Controller have feature: Run dry Protection. 5 Water level Sensor (Low level probe,, tank prob etc).
• Power Direct indication light. Startup when Solar panel supplies energy >= 10%
• Motor running light. Indicate the operate status of bore pump
• Error current & Error Voltage. Controller prevent the pump starting frequently on the condition of weak soar power through testing the dynamic of solar power , it can protect and extend the work life of pumps.
• Tank full indicator light(When the system detects upper tank is full the system stop working automatically,
• Well Low indicator light(When the system detects water level of ground water is less than the low water level probe (WL),the system automatically stop working, until the water level is higher than high water level probe(WH) and resume to work.
• Stainless Steel Pump Housing & Shaft
• Solar bore pump electronic control box are above ground for easy access and greatest reliability.
• Brushless DC Motor.
• Deep Well Application: It fits 4 inch and larger bore casings.
• This submersible bore pump is also suitable for water transfer applications such as dam to storage tank, storage tank to header tank, stock watering, etc.
• Compact size - easy to install, operation and maintenance;
• Safety and reliability (Continues rated);

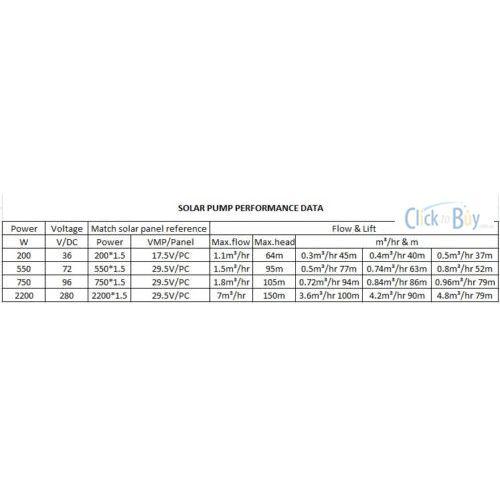

Technical Specifications

• Motor power rated: 2200W
• Voltage: 280V
• Solar Panel Requirement: 2530W or aboove which can provide 325V, Panel working current 7.7A
• Head: 155m
• Max Flow (L/Hr): 7000
• Flow rate (L/Hr): 4800@79m, 4200@90m, 3600@100m;
• Clear, free from solid or abrasive substances,
• Outlet: 1.2 inch
• Rating: Continuous
• Overall Dimension (cm): 10 X 10 X 79

Comes with 12 Months Warranty
