Key Features

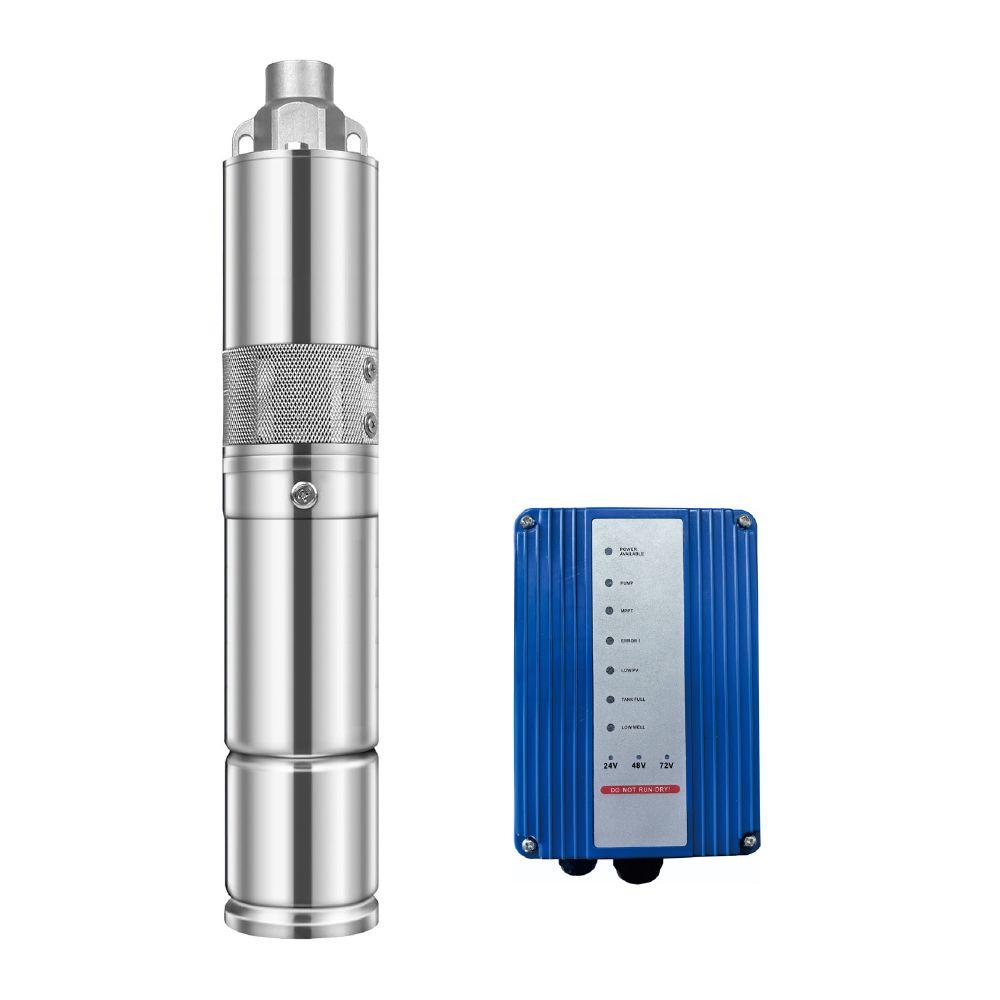

- Complete submersible pump solution including solar panels, controller, cabling, and mounting frame.
- Stainless steel screw pump (316 grade) built to handle harsh bore conditions.
- High performance: 3,200 litres/hour flow rate, 120m maximum head height capability.
- Easy installation and user-friendly controls with solar MPPT and water/float sensors to prevent dry running and overfilling.
- Robust mounting frame and embedment pole for long-lasting and stable outdoor setup.
- Weather-resistant MC4 connectors and 75m of power cabling included.
Specifications
| Power Input |
1,000 W |
| Voltage |
72V DC |
| Controller |
Integrated solar PV MPPT & water level/float controller |
| Flow Rate |
3,200 L/hour |
| Maximum Head |
120 m |
| Inlet/Outlet |
1 inch |
| Impellor |
Rubber & stainless steel |
| Solar Panels |
3 x 560 W solar PV panels (cabling and connectors included) |
| Power Cabling |
75m, 3G4mm² |
| Mounting Frame & Pole |
Accommodates 3 panels; 3m pole for stability and clearance |

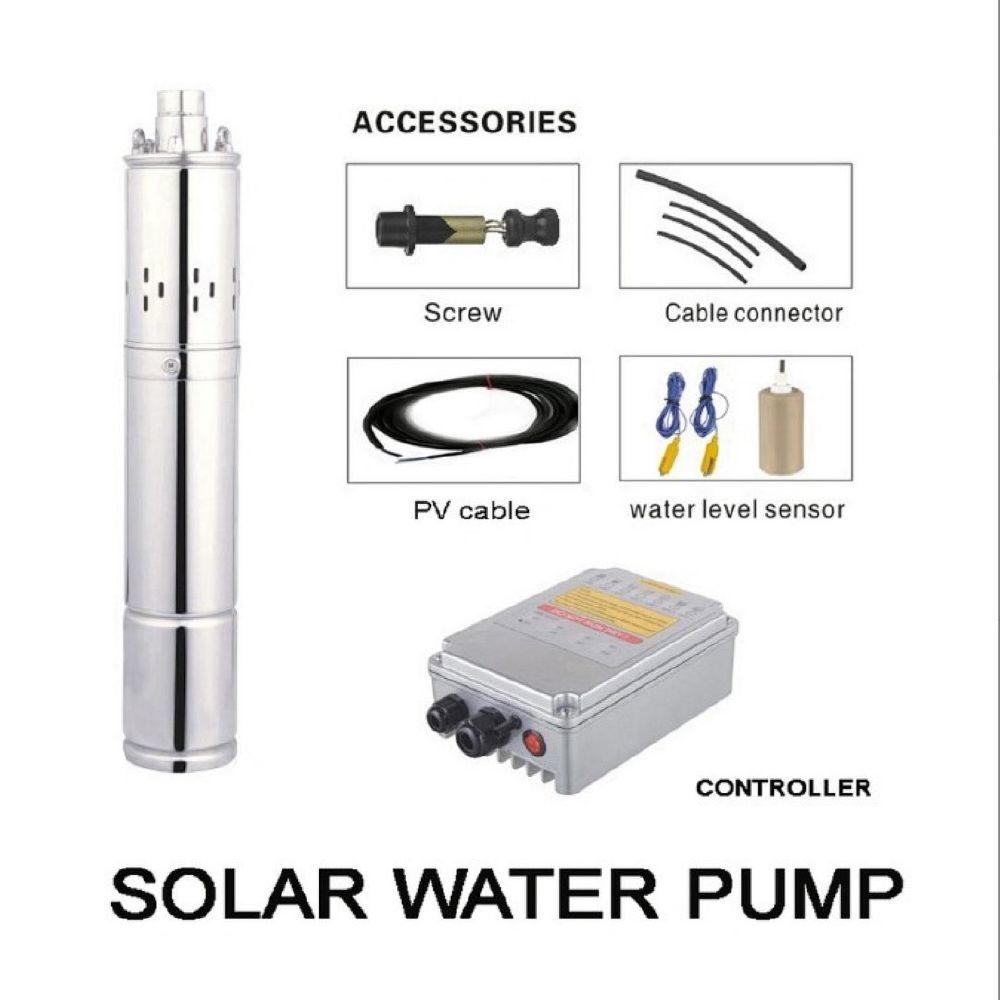

Package Includes
- 316 stainless steel submersible screw pump
- 3 x 560W solar panels and parallel connection accessories
- Integrated float controller with sensor for water level
- Sturdy mounting frame and 3 metre embedment pole
- Comprehensive instruction guide for installation
To contact Able Power about Submersible Solar Water Pump – 1" Centrifugal 120m use Get a quote.
