Galvanised Grain Silos

Name: Galvanised Grain Silos
Brand: Vennings

Supplier: Vennings

1/3

Galvanised Grain Silos

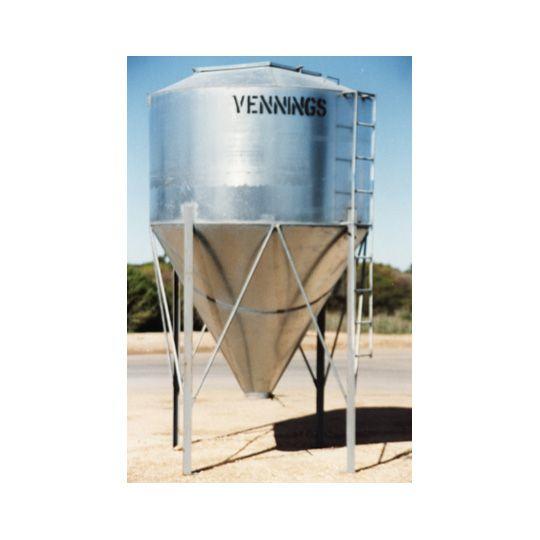

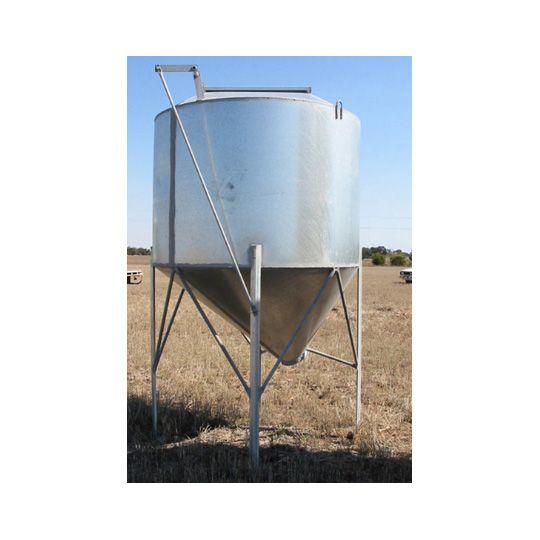

Vennings Galvanised Grain Silos

In Stock

Manufactured from Galvanised 1.6mm steel sheet. No overlapping of steel, all welds are butt joined and cold galvanised painted to reduce rusting. No joints to harbour weevils. Fitted with a galvanised external ladder. All silos have a 250mm round butterfly opening that is 600mm form the ground. Large 825mm square lid opening operated from the ground. Please refer to table below for different sizes available.

Offset Cone Size Specifications

			Approximate Capacity in Tons
Approximate Size	Height	Width	Wheat	Barley	Canola	Lupins	Oats
30 Bag	2670mm	1753mm	2.50
37 Bag	2970mm	1753mm	3.08
52 Bag	2745mm	2133mm	4.33
67 Bag	3050mm	2440mm	5.58
80 Bag	3350mm	2440mm	6.66
106 Bag	3960mm	2440mm	8.83
130 Bag	4570mm	2440mm	10.83
156 Bag	5180mm	2440mm	13.00

Centre Delivery Cone Size Specifications

			Approximate Capacity in Tons
Approximate Size	Height	Width	Wheat	Barley	Canola	Lupins	Oats
57 Bag	3400mm	2133mm	4.75
67 Bag	3710mm	2133mm	5.58
78 Bag	3760mm
89 Bag	4320mm	2133mm	7.41
92 Bag	4040mm	2440mm	7.66
120 Bag	4650mm	2440mm	10.00
148 Bag	5260mm	2440mm	12.33
