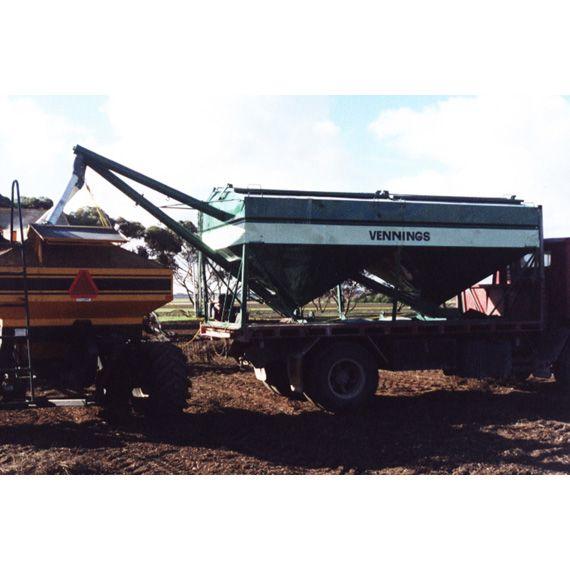

Vennings Rear Discharge Double Bin Seed & Super Unit
Like the standard seed and super loader, the rear discharge is designed to eliminate the chance of contamination of seed and super as there are separately operated lids and augers.
Both augers are PVC lined and can be run at the same time or individually, depending on your need. The unit is powered by a Manual or Electric start 13 HP Vanguard engine, with an option of Honda in manual or electric start. Simply driven by shafts and a pulley system, this unit is easy to use and clean out with sliding trap doors for quick cleaning or unloading.
| Bin | 14' Bin | 16' Bin | 18' Bin |
| Bin Configuration | 7' + 7' | 8' + 8' | 9' + 9' |
| Bin Length (overall) | |||
| Chassis Length | 4.20 Metres | 4.80 Metres | 5.40 Metres |
| Bin Width | 2.40 Metres | 2.40 Metres | 2.40 Metres |
| Bin Width | 2.00 Metres | 2.00 Metres | 2.00 Metres |
| Fill Height | |||
| Overall Height | |||
| Lid Opening | 1.95 Metres | 2.25 Metres | |
| Auger Discharge Height from truck Tray (measurement taken from steel outlet to truck tray height) | |||
| Auger Discharge Reach from truck Tray (measurement taken from steel outlet to truck tray) | |||
| Seed Capacity | 49 Bags | 56 Bags | 63 Bags |
| Fertiliser Capacity | 5.5 Ton | 6.3 Ton | 7.0 Ton |
| Weight (Approximate) |
To contact Vennings about Rear Discharge Double Bin Seed & Super Unit use Get a quote.
