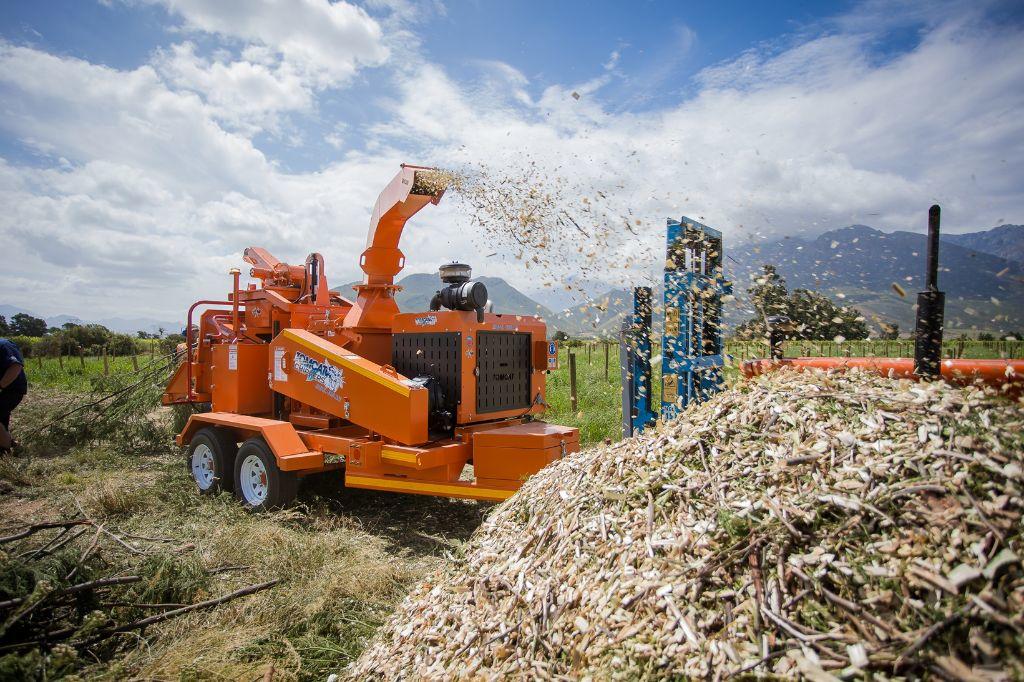

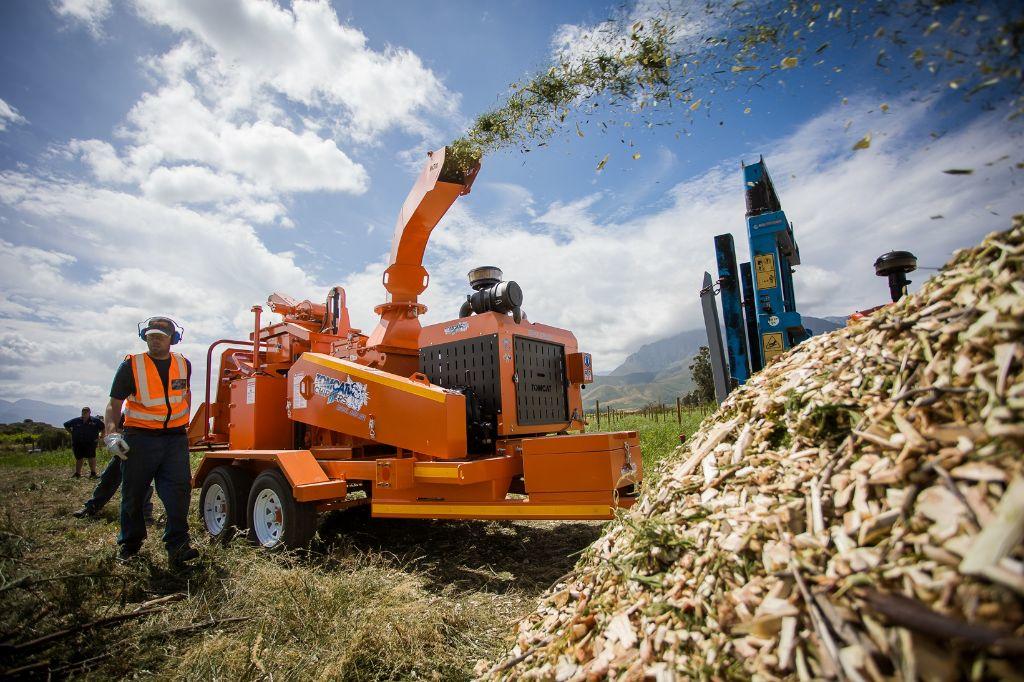

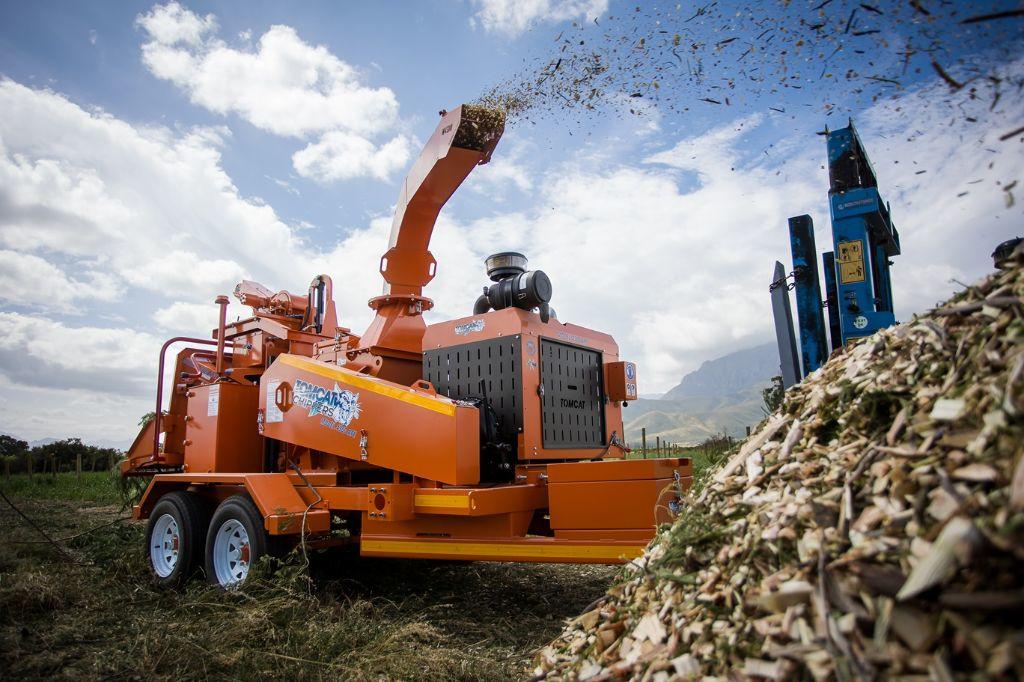

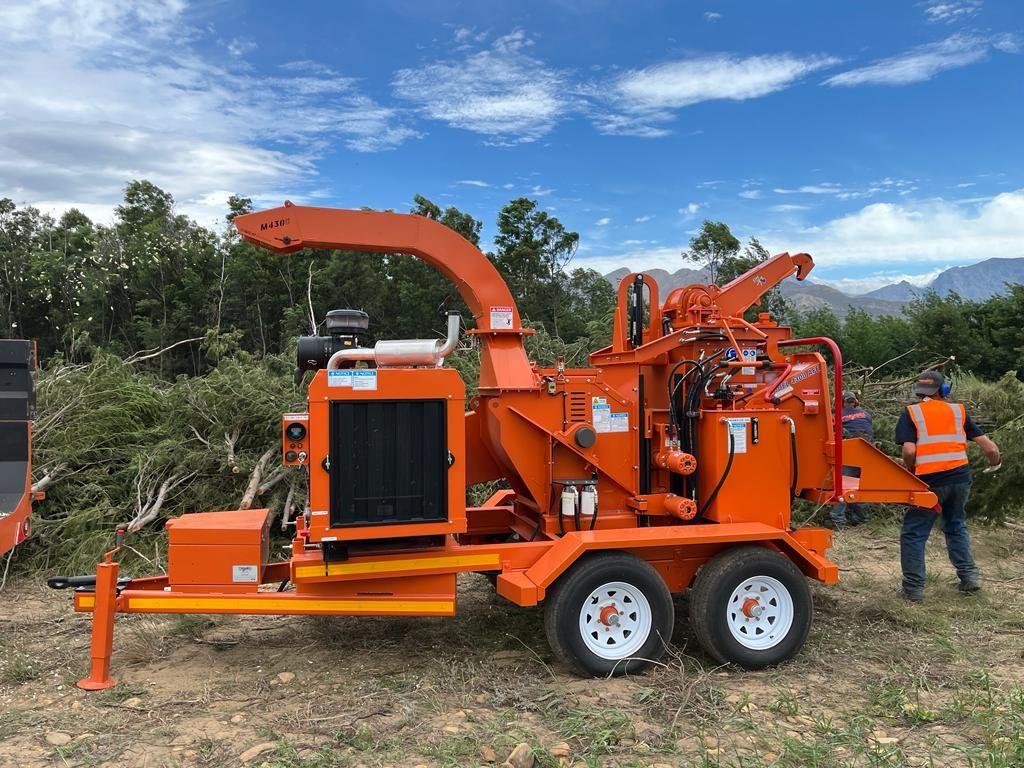

Industrial Wood Chipper | Model 4300AFEGet latest price

Working alongside utility maintenance, residential tree and council contractors, the 300 series was developed to service a wide range of vegetation management functions. Equipped with the world renowned Perkins engine and Parker hydraulics, the feed rollers are controlled by our unique Tomcat reversing auto-feed control (TRAC) and a powerful hydraulic ram that provides crush capability to feed the most stubborn side branches. A multi directional 2.5t capacity hydraulic winch system can be included to compliment the operator utilisation.

Additional 300AFE features include curb side mounted controls providing a more convenient location for operators, a side-load anvil, a 360-degree manual swivel discharge chute which offers multiple locking positions for greater operator control over chip discharge, and a three-position control bar with dual safety e-stops and bump bar, further elevating industry safety standards.

Mounted on the industry’s leading tandem trailer configuration, including a spare wheel, toolbox and cone spike, with rake holders and pole saw mount standard option on the unit.

SERIES FEATURES:

• 13″ Chipping capacity
• 100Hp Perkins diesel engine
• Hydraulic lift & crush
• Tandem trailer with electric brakes
• Hydraulic lift & crush
• 11” Pilotless HD Clutch
• Large 700mm diameter drum
• 360° adjustable discharge chute
• Large toolbox & spare wheel
• Parker hydraulics
• Parts locally available over the counter
• Tomcat reversing auto-feed control (TRAC)
• 2.5T Hydraulic winch (optional +$7,500)

SPECIFICATIONS

• Chipper capacity: 330mm
• Chipper opening: 330mm x 460mm
• Feed hopper: 1450mm x 850mm
• Feed system: Double hydraulic in-feed rollers
• Hydraulic lift & crush system
• Cutting system: Drum with 4 x double sided blades
• Discharge Chute: 360° manual adjustable
• Safety: Twin e-stops, bump bar, forward/reverse bar, curb side controls
• Hydraulic Tank: 100L
• Fuel Tank: 100L
• Length: 6.2m
• Width: 2m
• Height: 2.6m
• Weight: 2800kg (3200kg with winch)
• Engine: 100Hp PERKINS diesel
