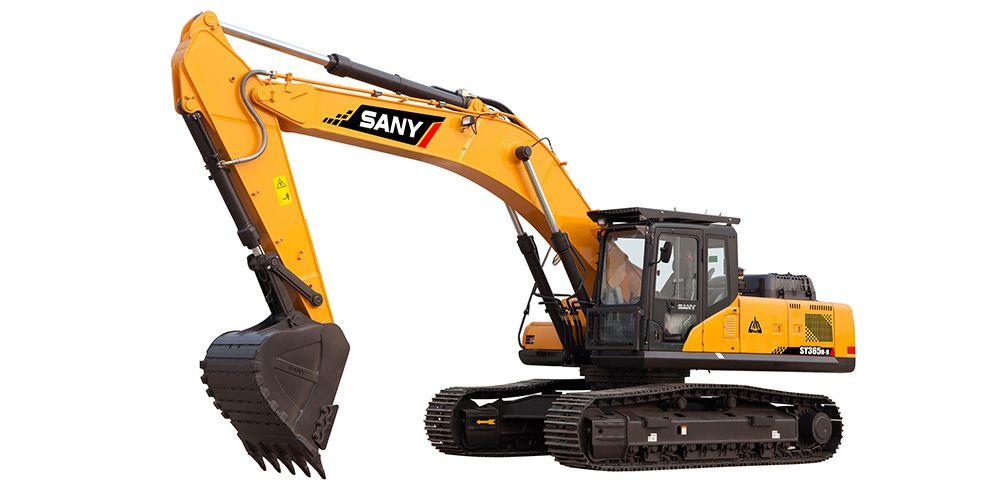

Large Excavators | SY365H ProGet latest price

IMPRESSIVELY EFFICIENT

The SY365H is designed for long life and long working hours, even in the toughest working conditions.

The new SY365H is an all-rounder for heavy work. At 39 tonnes and 3 metres wide, it offers outstanding manoeuvrability for its class. Large earthmoving jobs and extensive public works can be carried out quickly and efficiently.

Key Features

• 10" high resolution touch screen display
• 2 cameras
• Adjustable seat
• 2 additional control circuits
• High-power engine
• Prepared for hydraulic quick coupling

General Information

• Weight

40150 kg

• Standard bucket capacity

1.9 m³

• Transport length

11432 mm

• Transport width

3190 mm

• Height over cabin/ROPS

3783 mm

• Engine

Isuzu 6HK1

• Rated Power

212 kW

• Engine Revolutions

1800 rpm

• Emission Stage

Stage III

• Max. digging depth

7473 mm

• Max. digging reach

11022 mm

• Min. Swing radius

4176 mm

• Bucket digging force (ISO)

233 kN

• Arm digging force (ISO)

184 kN
