Walk Behind Trencher | RTX130Get latest price

Steers effortlessly with the VZ steering system that requires minimal effort to the handle bars.

Fits into narrow areas with footprint that measures only 35”/88.9 cm wide.

Promotes on-the-job safety with an operator presence system that disengages the trencher and ground drives if the operator leaves the controls, in addition to a trenching cleat that restricts backward motion.

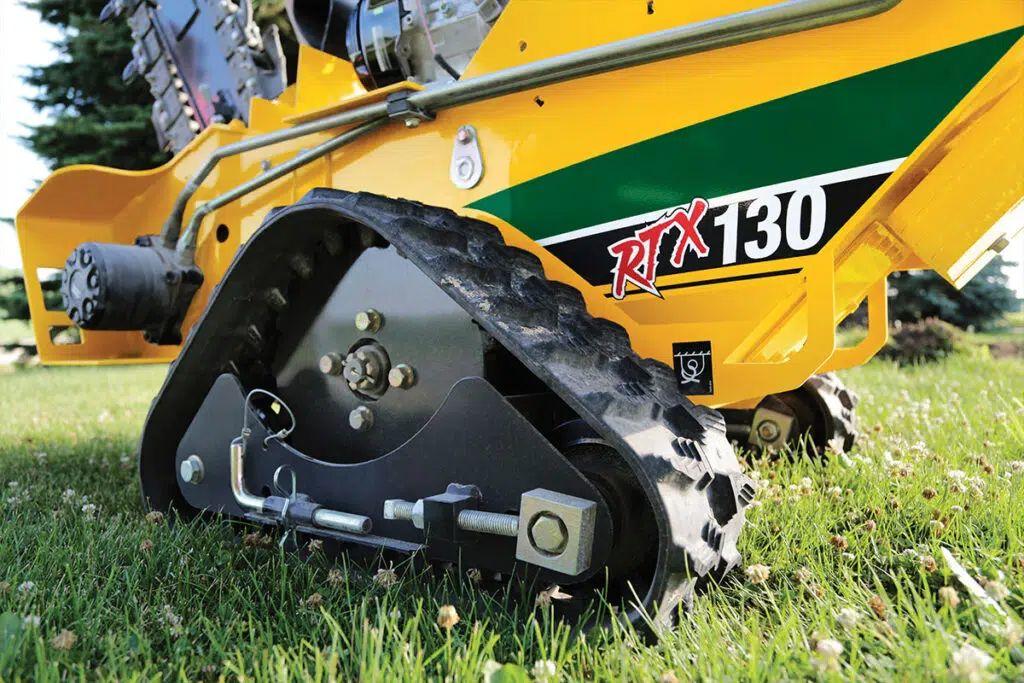

Elimination of the tail wheel on the track unit provides trenching depth control in uneven ground conditions and convenience to move through tight spaces.

General Dimensions and Weights

• Length (With Tracks): 73 inches / 185.4 cm
• Length (With Tires): 83 inches / 210.8 cm
• Width: 35 inches / 88.9 cm
• Height: 46 inches / 116.8 cm
• Weight (With Tracks): 1140 lbs / 517.1 kg
• Weight (With Tires): 880 lbs / 399.2 kg

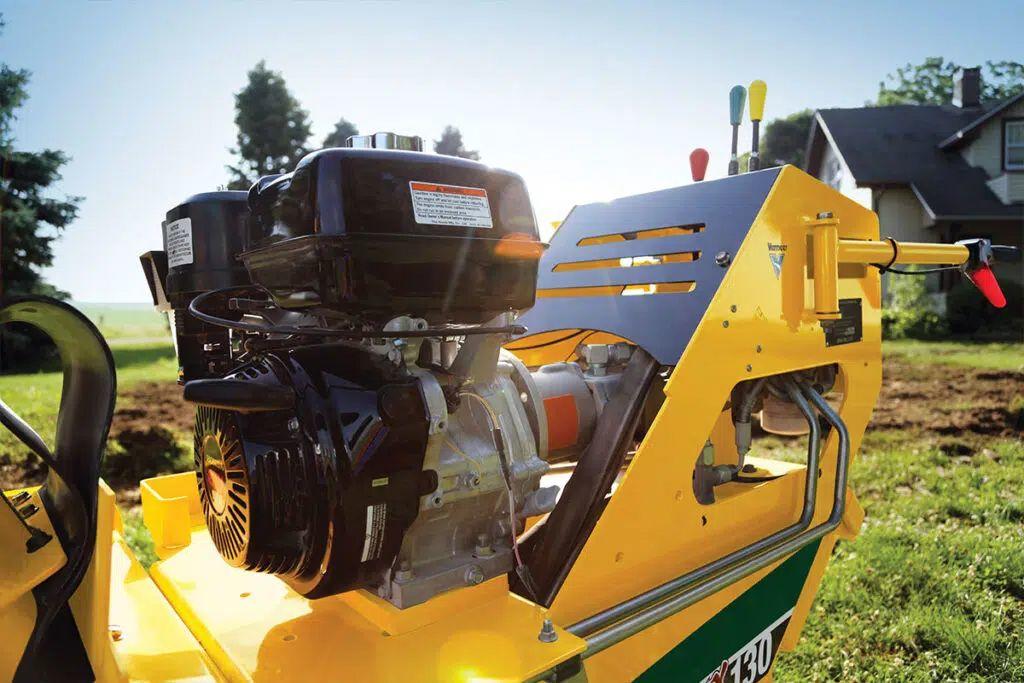

Engine

• Make and Model: Honda GX390
• Fuel Type: Petrol
• Gross Horsepower: 13 hp / 9.7 kW
• Horsepower at Maximum RPM (Gross): 13 hp / 9.7 kW
• Displacement: 23.7 cu-in / .4 L
• Number of Cylinders: 1
• Cooling Medium: Forced Air

Hydraulic System

• Attachment Pump Relief Pressure (Trencher/Forward): 2500 psi / 172.4 bar
• Ground Drive Pump Relief Pressure Forward/Reverse: 2400 psi / 165.5 bar
• Ground Drive Pump gpm at Maximum Engine RPM: 5.4 gpm / 20.4 L/min
• Hydraulic Supply Filter Rating: 100 mesh strainer
• Attachment Pump gpm at Maximum Engine RPM: 8 gpm / 30.3 L/min
• Hydraulic Return Filter Rating: 3 micron
• Capacities
• Fuel Tank: 1.6 gal / 6.1 L
• Hydraulic Tank: 10.8 gal / 40.7 L
• Hydraulic System: 11.3 gal / 42.6 L
• Engine Oil: .3 gal / 1.1 L
• Ground Drive
• Ground Drive Type: Hydrostatic
• Clutch Type: none
• Maximum Forward Transport Speed at Full Throttle: 3.1 mph / 5 km/h
• Maximum Reverse Transport Speed at Full Throttle: 1 mph / 1.6 km/h
• Wheelbase: 33.2 inches / 84.3 cm
• Tread width (With Tires): 8.5 inches / 21.6 cm
