Wood Chipper | Brush Chipping Unit | BC700XLGet latest price

The BC700XL features a centrifugal clutch system, 25 horsepower (18.6 kW) Kohler EFI engine, bottom feed stop bar and Vermeer exclusive SmartFeed feed-sensing control system.

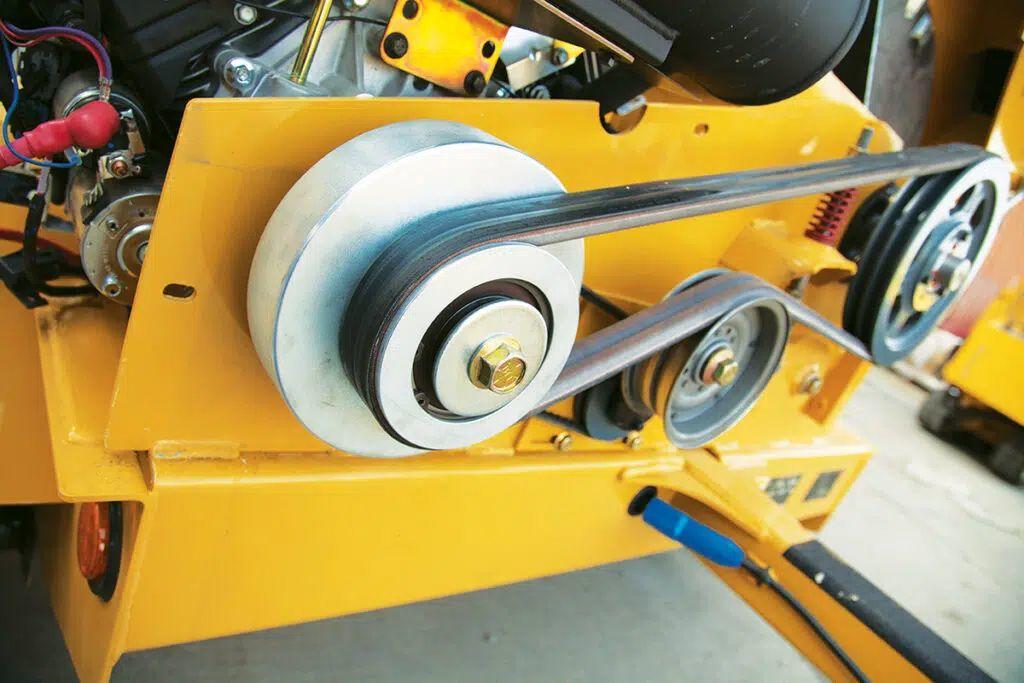

The centrifugal clutch engagement prevents belt slip when engaging the clutch which means fewer maintenance costs.

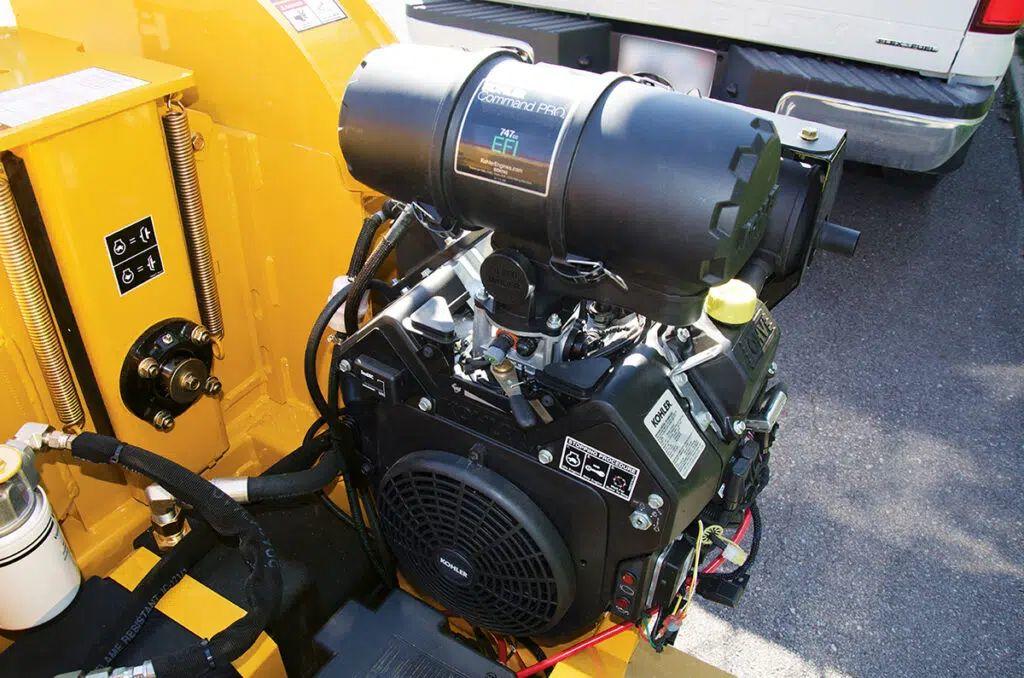

The 25 hp (18.6 kW) Electronic Fuel-Injected (EFI) Kohler engine performs well during cold-weather starts, has reduced occurrence of engine flooding and provides improved fuel economy over comparable carbureted gas engines.

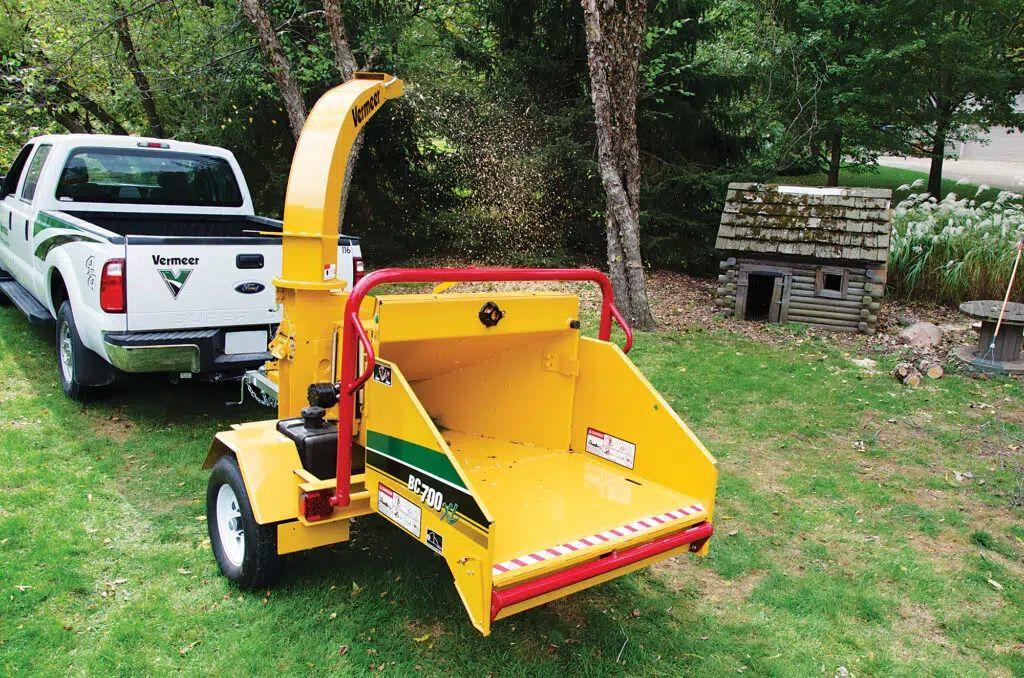

The large infeed opening makes feeding irregular material easier and decreases the number of saw cuts needed prior to feeding the chipper.

Vermeer’s exclusive SmartFeed, patented feed-sensing control system, helps increase operator productivity and reduces strain on vital engine parts, as engine rpm is monitored and feed rollers are controlled.

A bottom feed stop bar is strategically located to make it possible for the operator’s leg to strike the bar and shut off the feed mechanism either intentionally or automatically in an emergency situation.

The wide axle offers a wide footprint at the axle for side-to-side stability; additionally enhances transportability and visibility while backing up.

General Dimensions and Weights

• Length (Feed Table Up, Tongue In): 113 inches / 287 cm
• Length (Table Down, Tongue Extended): 133 inches / 337.8 cm
• Width: 71 inches / 180.3 cm
• Height: 102 inches / 259.1 cm
• Tongue Weight: 180 lbs / 81.6 kg

Engine

• Make and Model: Kohler ECH740
• Gross Horsepower (Maximum): 25 hp / 18.6 kw
• Torque (Max): 41.7 ft-lb / 56.5 Nm
• Fuel Tank Capacity: 6 gal / 22.7 L
• Max Fuel Consumption: 2.4 gph / 9.1 lph
• Fuel Type: Gasoline
• Air Cleaner: Kohler HD 2-Stage Dry
• Oil Filter: Spin-on
• Recommended Oil: Kohler oil or API CH4/SJ
• Oil Volume with Filter: 2 qt / 1.9 L
• Maximum Angle of Continuous Operation: 25 deg
• Cooling Medium: Oil/Air
• Alternator: 20A Charging
• Clutch Type: Centrifugal PTO
• Clutch Drive Engagement: Centrifugal

Feed System

• Feed Roller Orientation: Horizontal
• Feed Roller Clamp Load: 525 lbs / 238.1 kg
• Feed Roller Clamp Type: Spring/Feed Roller Weight
• Feed Roller Minimum Distance to Drum: 4 inches / 10.2 cm
• Feed Roller Dimension: 10
• Weight of Feed Roller: 100 lbs / 45.4 kg
• Motor Displacement: 14.2
• Motor Manufacturer: White Hydraulics
• Feed Speed: 49.4 ft/min
• Infeed Table Width: 41.2 inches / 104.6 cm
• Infeed Table Length: 30.2 inches / 76.7 cm
• Infeed Hopper Height: 22.1 inches / 56.1 cm
• Infeed Throat Capacity: 6 inches x 8 inches
• Pinch Point – Distance to End of Feed Table: 65.4 inches / 166.1 cm
• Distance from Feed Table to Ground: 28.1 inches / 71.4 cm

Safety System

• Bottom Feed Stop Bar: Standard
• Bottom Feed Stop Bar Diameter: 2 inches / 5.1 cm
• Bottom Feed Stop Bar Material Thickness: .12
• Reset Method: Dual green hold-to-run buttons
• Four Position Feed Control Bar: Standard
• Diameter: 2 inches / 5.1 cm
• Material Thickness: 0.1  inch / 0.3 cm
• Positions: Four positions: (E-Stop), Forward, Stop, (Reverse)
• Green Hold to Run Button: Standard

Drum/Disc Cutting System

• Material Capacity: 6 inches / 15.2 cm
• Width: 8 inches / 20.3 cm
• Thickness: 1.3 inches / 3.2 cm
• Diameter: 23.9 inches / 60.7 cm
• Speed: 1748
• Weight With Shaft: 176 lbs / 79.8 kg
• Knife Thickness: 0.6 inch / 1.6 cm
• Material: A8 Chipper Steel
• Replaceable Threaded Knife Block: Yes
• Fixture Method: Welded
• Air Flow: 5000 cfm
• Bedknife Size: 4 inches x 8.6 inches/(10.2 cm x 21.9 cm) hor; 4 inches x 5.8 inches/(10.2 cm x 14.6 cm) vertical
• Bedknife Material: ASTM A572 Grade 50

Cutter Drive Components - Engine Option One

• Bore: 1.5 inches / 3.8 cm
• Type: Flange-mounted ball type, self-aligning
• Manufacturer: Linkbelt
• Dynamic Capacity: 5640 lbs / 2558.3 kg
• Static Capacity: 4460 lbs / 2023 kg
• Belt Idler/Tensioner: Spring-loaded adjustable Idler
• Belt Type: 2-band 5-V profile Aramid

Discharge System

• Chute Height: 97.2 inches / 246.8 cm
• Bottom Thickness: 0.1 inch / 0.3 cm
• Top Thickness: 0.1 inch / 0.3 cm
• Side Wall Thickness: 0.1 inch / 0.3 cm
• Deflector Thickness: 0.1 inch / 0.2 cm
• Chute Rotation Angle: 240 deg
• Rotation Type: Manual
• Rotational Lock: Standard Latch

Hydraulic System

• Tank capacity: 6.8 gal / 25.7 L
• Recommended Oil Type: Vermeer VMF Gold
• System Type: Open center
• Filtration Method: Return flow filtration, 10 micron
• Pump Flow at Maximum RPM: 3.8 gpm / 14.4 L/min
• System relief pressure: 2500 psi / 172.4 bar

Electrical System

• System Voltage: 12 Volt
• Battery: Group 26, 400 CCA
• Standard Gauges: Hour meter
• Switches: Hold-to-run, sensitivity selector
• Controller: Vermeer ACS CB02

Chassis

• Frame Description: 3/16 inch/(.5 cm) ASTM A1011 steel
• Hitch Type: 2 inches/(5.1 cm) ball coupler
• Fender Description: .1 inch/(.3 cm) Steel bolt-on
• Axle/Suspension: 2000 lb/(907.2 kg) rubber torsion axle
• Type – Option One: Rubber Torsional
• Manufacturer – Option One: Dexter
• Capacity – Option One: 2000 lb/(907.2 kg)
• Tires – Option One: ST185/80D13 load range D
• Wheels – Option One: 13 x 5, bolt circle 5 on 4.5
• Axle/Suspension – Option Two: 2000lb/(907.2 kg) rubber torsion axle with electric brakes
• Type – Option Two: Rubber torsional, braked
• Manufacturer – Option Two: Dexter
• Capacity – Option Two: 2000 lb/(907.2 kg)
• Brake Type: Electric optional
• Trailer Light Type: LED
