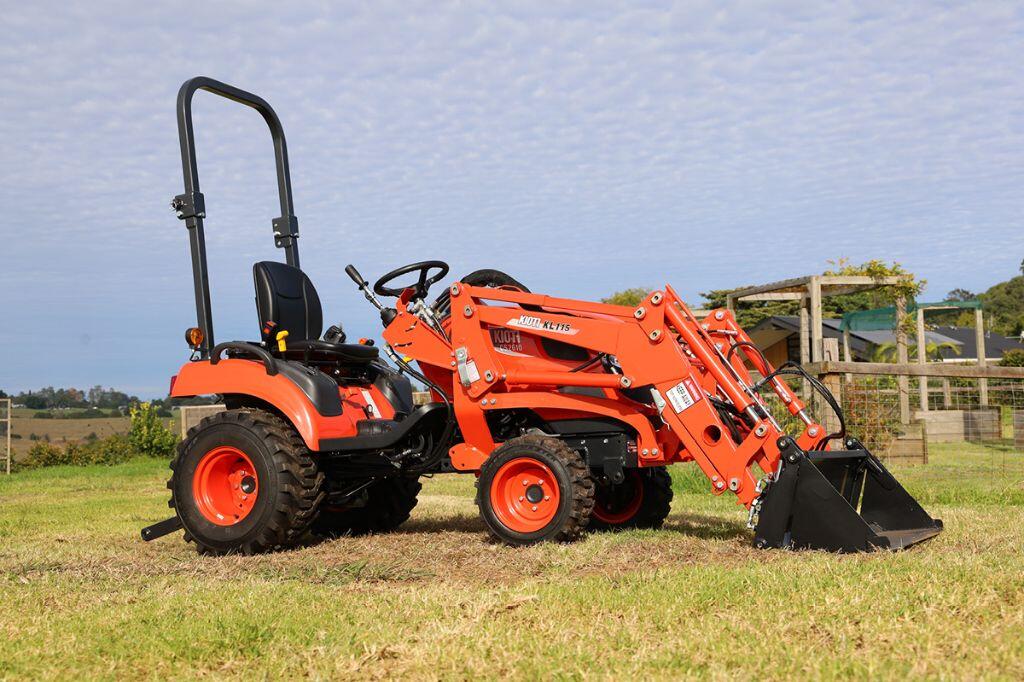

CK3010 ROPS Compact TractorGet latest price

This tractor is equipped with a performance proven, heavy duty HST drive unit to handle the increased power of this stylish and popular compact Kioti tractor.

Single pedal controls make changing between forward and reverse easy, without clutching or hand shifting, and the operator’s hands remain free for steering and implement control.

It is equipped with a 3-cylinder 22.4 kW water-cooled diesel engine. Travelling speed can be controlled with the hand lever and foot accelerator pedal. The fuel tank capacity is 25 litres.

A heavy duty front axle and standard 4WD guarantee powerful traction.

It has two infinite travelling speeds: 17 km/h in forward; and 12 km/h in reverse.

It comes with a hydrostatic single dry clutch transmission, standard rear differential lock, wet disc brakes and a standard 540 rpm PTO.

• Heavy Duty HST Drive Unit
• 22.4 kW Engine
• Heavy Duty Front Axle
• Standard 4WD

Engine

Kioti-Daedong diesel engines produce low noise, little vibration and meet or exceed EPA regulations. This model is equipped with a 3-cylinder 22.4 kW water-cooled diesel engine.

Steering

Power steering is standard across the Kioti range of tractors, thereby reducing operator fatigue.

Fuel Tank

The fuel tank capacity is 25 litres.

Service

The hood design allows easy access to the radiator and air filter, ensuring maintenance and servicing is a breeze.

Step Through Platform

The high impact flat polymer operator platform reduces vibration and is easy to clean. There is plenty of room to get on and off this tractor without obstructions.

Comfort

All control levers are easy to reach and allow the operator to work in comfort. The instrument panel is easily visible and the operator can monitor all operations at a glance.

4-In-One Bucket

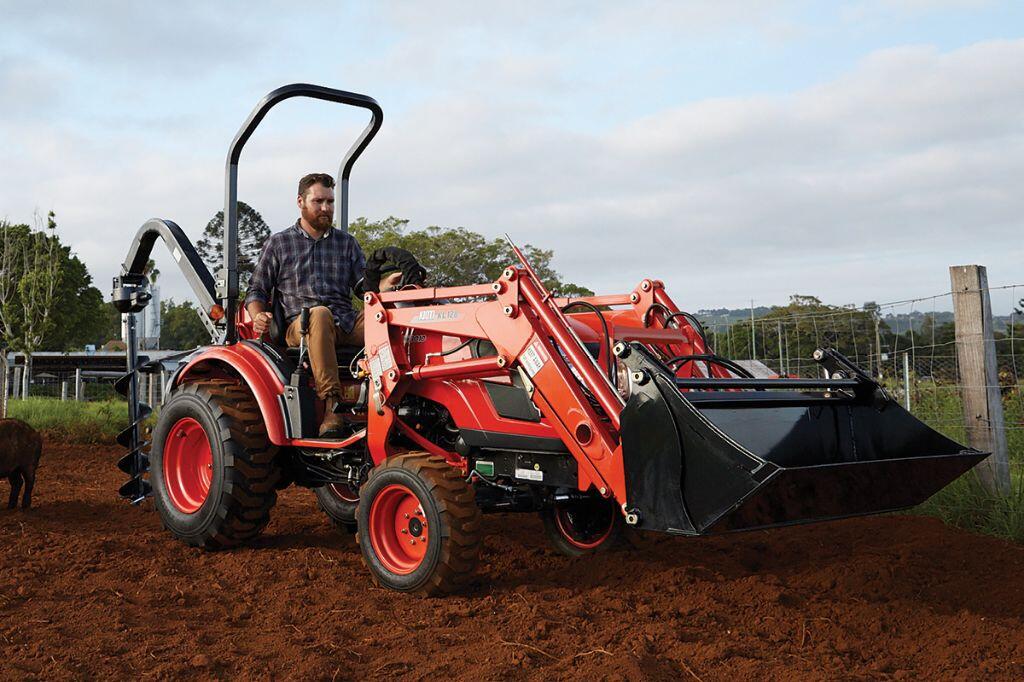

Every tractor ordered with a front end loader comes with a 4-in-1 bucket.

4WD

A heavy duty front axle and standard 4WD guarantee powerful traction.

Illuminated Dashboard

The illuminated dashboard ensures great visibility while working in all lighting conditions.

Forward / Reverse Pedal

A Forward / Reverse pedal system with smooth engagement makes it simple to drive forward and reverse and control the speed.

PTO / 3 Point Linkage

Independent rear 540 rpm power take-off. CAT I 3-point hitch with 546 kg lift capacity.

Hydraulics

Tandem gear pump with 42.9 l/min maximum flow pump capacity.

Specifications

• Engine: 3A139LWB; liquid cooled 3 cylinder engine; 1,393 cc displacement; 22.4 kW @ 2600 rpm; 25 litre fuel tank capacity.
• Transmission: 2 range hydrostatic; standard differential lock; 4WD.
• Power Take Off: Independent 540 rpm rear.
• Hydraulics & Linkage: Tandem gear pump; 42.9 l/min max. flow pump capacity; Category I 3-point hitch; 546 kg max. lifting capacity @ 610 mm behind lift; hydraulic lift position control; power steering.
• Brakes: Wet disc brakes.
• Operator environment: Ergonomic operator station; illuminated instrument panel; 12 volt power outlet; high back seat; step through platform; front work lights; cruise control.
• Dimensions: Overall length 2790 mm; overall height 2108 mm; overall width 1250 mm; wheelbase 1520 mm; ground clearance 330 mm; total weight 1025 kg.
• Tyres: Ind front 23x8.5-12; Ind rear 12-16.6.
