Power Harrow KATOR KN

Name: Power Harrow KATOR KN
Brand: JJ Farm Equipment

Supplier: JJ Farm Equipment

1/3

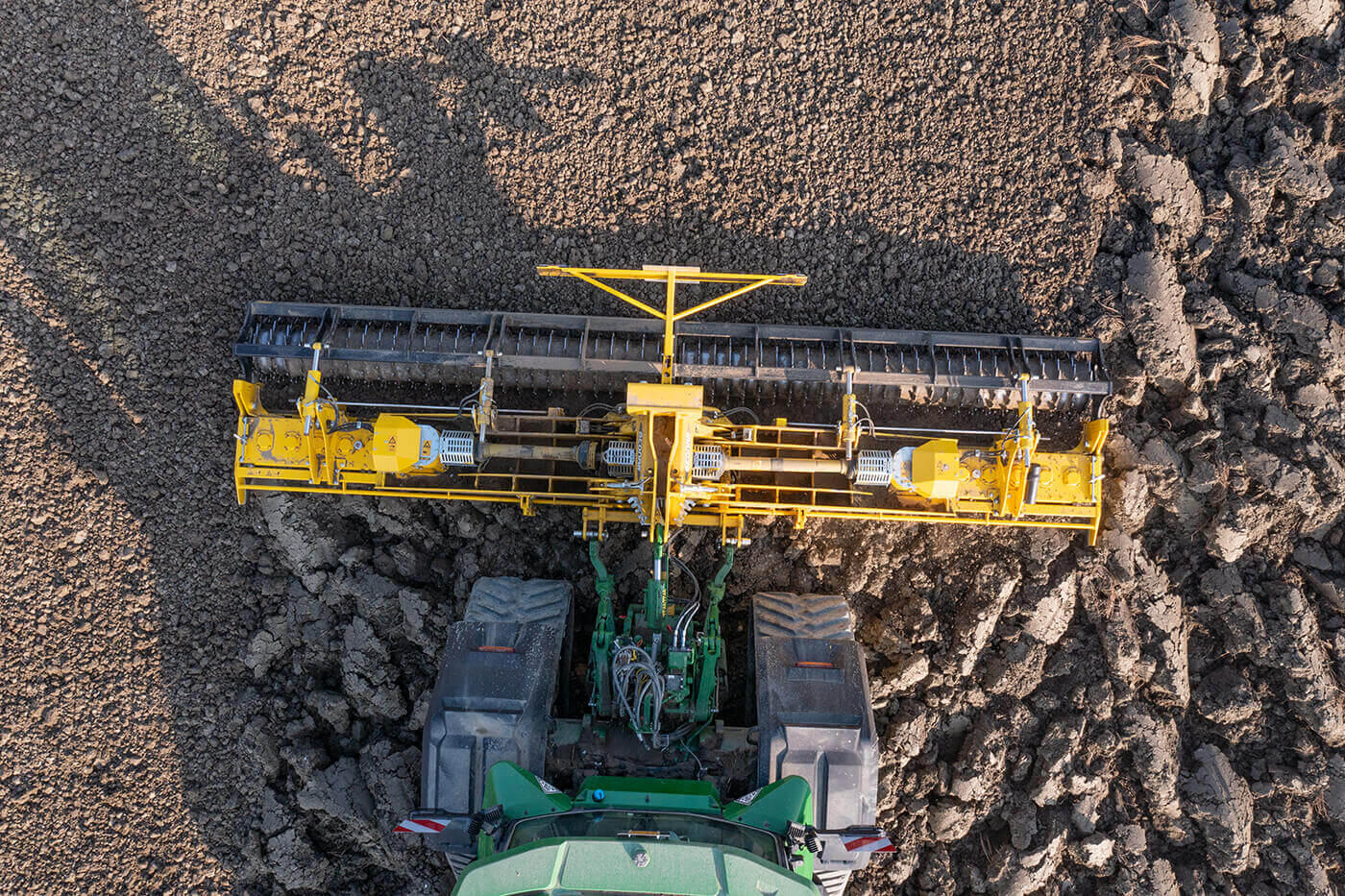

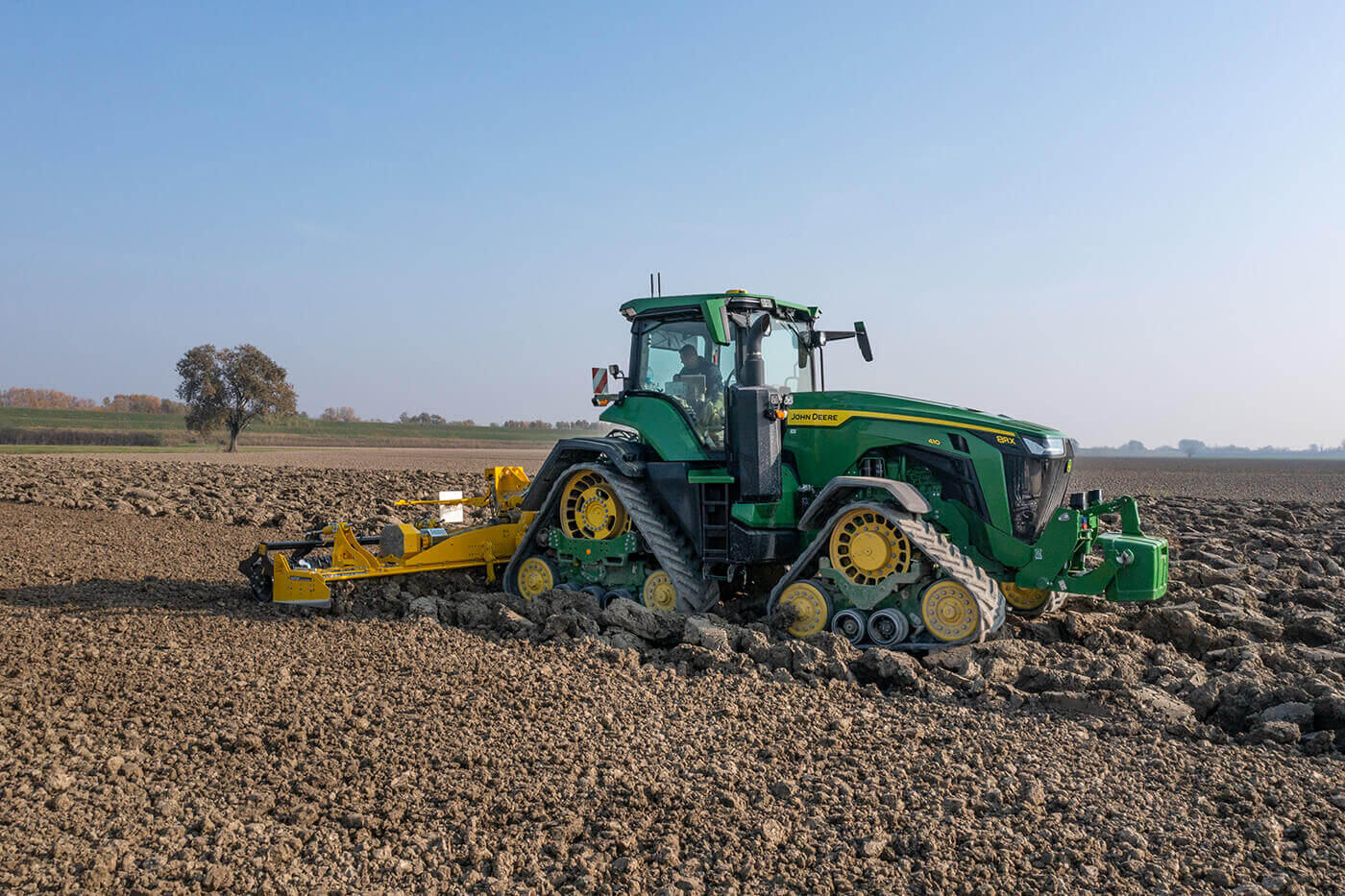

Power Harrow KATOR KN

A power harrow for seedbed preparation with rigid and folding frame options. The range covers working widths from 3 to 8 metres, with a working depth of up to 25 cm depending on conditions.

Working widths from 3 to 8 metres

Trapeze roller

The trapeze roller is for precise and fine soil crumbling, an ideal roller for light to medium-heavy soils. The roller includes scrapers. Roller diameter 500 mm. Weight 125 kg/m.

Packer roller

A packer roller with excellent crumbling effect suitable for heavy soils. The roller includes scrapers. Roller diameter 550 mm. Weight 110 kg/m.

Cage roller

The cage roller is made of large steel rods with a good crumbling effect. Roller diameter 540 mm. Weight 65 kg/m.

Front equipment

Track eradicators (two pairs): It is used for loosening hardened tracks created by the tractor. *Equipment available for the KN_H and KN_PROFI models.
Track eradicators (one pair): It is used for loosening hardened tracks created by the tractor.

Other

Transport axle: It serves to alleviate the load on the tractor's three-point hitch, enhancing overall stability during transport. *Available exclusively for KN_PROFI models.
Additional frame: The Category II frame enables easy coupling with another carried machine, such as a seed drill. *Available for KN models.

Seedbed preparation

Seedbed preparation is an important operation for the formation of a uniform and balanced seedbed prior to crop establishment. Each crop and field requires different seedbed preparation based on the climate, or the chosen date of cultivation. The aim of the seedbed preparation is to create an ideal soil structure in the field, with a harder bottom and loose top soil layer, to level the field after previous operations, and to open, warm up and aerate the soil profile for even crop emergence.

Technical data

The table can be navigated by scrolling sideways.

KN_L	Unit	KN 3000 RL	KN 3500 L	KN 4000 L	KN 4500 L	KN 5000 L
Working width	m	3	3.5	4	4.5	5
Transport width	m	3	2.3	2.3	2.3	2.3
Number of rotors	pcs	12	16	18	20	22
PTO shaft RPM	RPM	1000	1000	1000	1000	1000
Rotor RPM	RPM	320	338	338	338	338
Working depth*	cm	25	25	25	25	25
Distance between rotors	cm	22	22.5	22.5	22.5	22.5
Blades size	mm	330x15	330x15	330x15	330x15	330x15
Power demand*	hp	70-160	100-230	110-230	130-230	130-230
Frame type		rigid	folding	folding	folding	folding
Max. total weight**	kg	1180-1350	1870-2130	1990-2280	2120-2440	2260-2600

The table can be navigated by scrolling sideways.

Model	Unit	KN 3000 (Q)	KN 3500 (Q)	KN 4000 R(Q)	KN 4000 (Q)	KN 4500 (Q)	KN 5000 (Q)	KN 6000 (Q)
Working width	m	3	3.5	4	4	4.5	5	6
Transport width	m	3.1	3.7	4.2	2.4	2.4	2.4	2.4
Number of rotors	pcs	12	14	16	18	20	22	26
PTO shaft RPM	RPM	750/1000	750/1000	750/1000	1000	1000	1000	1000
Rotor RPM	RPM	346/462	346/462	346/462	342	342	462	462
Working depth*	cm	25	25	25	25	25	25	25
Distance between rotors	cm	24.5	24.5	24.5	22	22	22	22
Blades size	mm	330x15	330x15	330x15	330x15	330x15	330x15	330x15
Power demand*	hp	90 - 250	100 - 250	110 - 250	130-300	150-300	150-300	170-350
Frame type		rigid	rigid	rigid	folding	folding	folding	folding
Max. total weight**	kg	1610-1631	1843-1857	2041-2058	3356-3381	3524-3551	3710-3739	4044-4079

* depends on soil conditions ** according to the machine equipment

The table can be navigated by scrolling sideways.

Model	Unit	KN 6000 (Q) PROFI	KN 7000 (Q) PROFI	KN 8000 (Q) PROFI
Working width	m	6	7	8
Transport width	m	2.3	2.3	2.3
Number of rotors	pcs	26	30	36
PTO shaft RPM	RPM	750/1000	750/1000	750/1000
Rotor RPM	RPM	346/462	346/462	346/462
Working depth*	cm	25	25	25
Distance between rotors	cm	22	22	22
Blades size	mm	330x15	330x15	330x15
Power demand*	hp	200-430	250-430	280-430
Frame type		folding	folding	folding
Max. total weight**	kg	4654-4689	5240-5282	5623-5673
