QUANTUM Air Seed Drill

Name: QUANTUM Air Seed Drill
Brand: JJ Farm Equipment

Supplier: JJ Farm Equipment

1/2

QUANTUM Air Seed Drill

The Morris air drill is designed for broadacre seeding with accurate placement and reliable performance in Australian paddocks. It combines a stronger frame, high flotation, stainless steel delivery and working widths up to 24 m.

Precise seed placement with heavy-duty durability

DuraLoc™ frame: The frame is 154% stronger than previous drills. Its 4x6 tubular steel frame features innovative joint welding, made possible by Morris’ proprietary manufacturing technology.

The strongest and most durable air drill Morris has ever built.

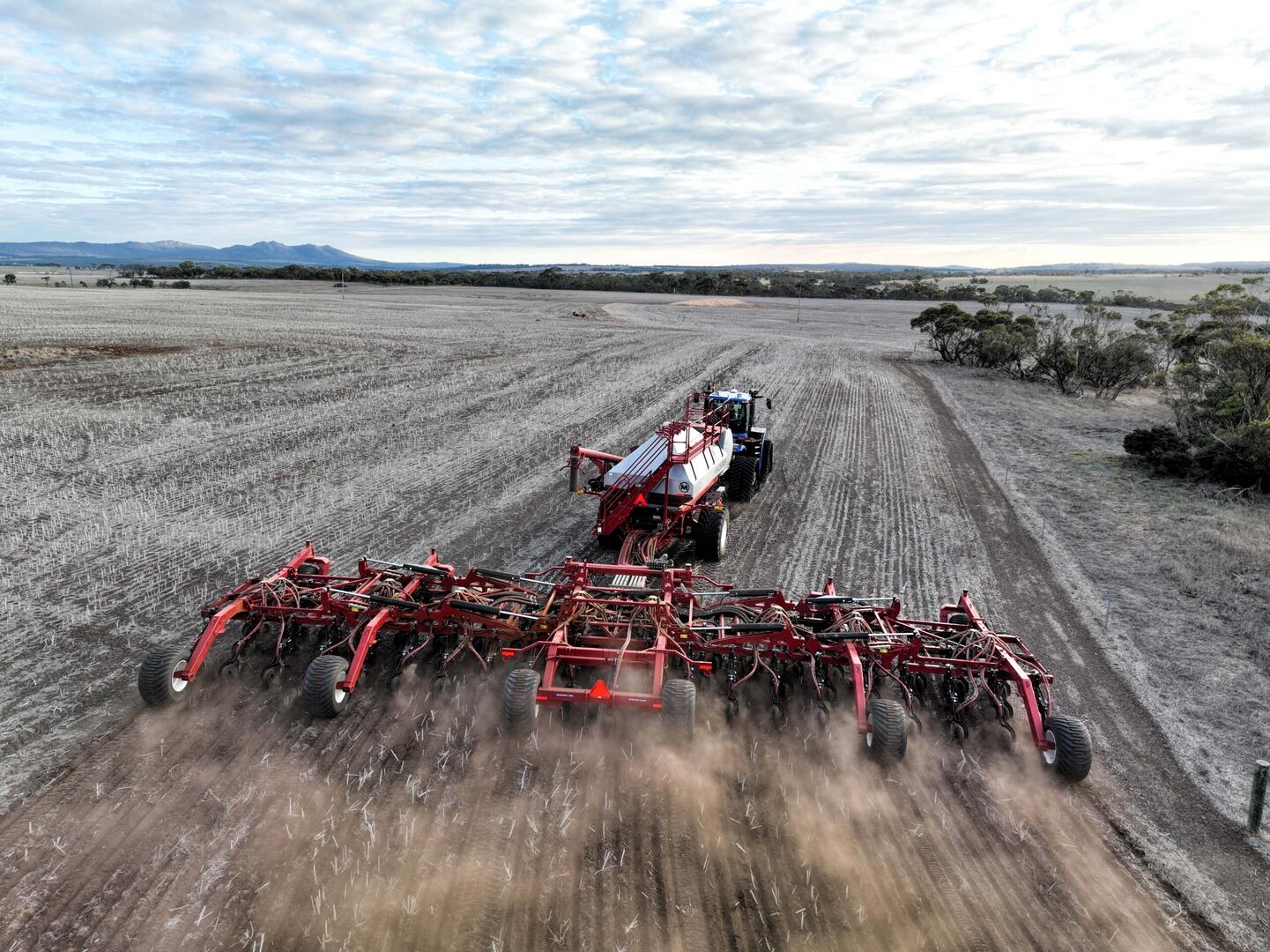

Flotation: Industry-leading flotation with 15% more tyre contact area, allowing you to float through wet spots. This reduces soil compaction and ensures more consistent seeding performance, even in challenging conditions.

Stainless steel: Durable stainless steel construction ensures efficient and consistent product delivery.

3-metre centre: The 3-metre centre spacing supports controlled traffic farming for improved soil management.

Quick-change depth cam: Easily adjust seeding depth on the go with the quick-change depth cam system.

1:1 parallel linkage: for exact depth control.
Heavy-duty DuraLoc™ frame: for superior strength and durability.
Industry-leading flotation: with 15% more tyre contact area.
Greaseable, articulating hitch clevis: reducing draft load on front tyres.
Optimised row unit spacing: for flexible configurations.
Reclined shank design: for improved residue flow.
Stainless steel air system: for efficient product delivery.
3-metre centres: for controlled traffic farming.
Quick-change depth cam system: for easy seeding depth adjustments.
Impressive manoeuvrability: making tight headland turns a breeze.

Available models: 12 m, 15 m, 18 m, 21 m and 24 m.

Specifications

Trip Out Force	Maximum 363 kg (800 lb) at 8274 kPa (1200 psi)
Packer Wheel	114.3 mm x 406.4 mm (4.50 in x 16 in) Semi Pneumatic tyre; 139.7 mm x 406.4 mm (5.50 in x 16 in) Semi-Pneumatic tyre
Opener To Ground Clearance	305 mm (12 in)
Frame To Ground Clearance	914 mm (36 in)
Frame Depth	2134 mm (84 in) centre to centre
Rank To Rank Spacing	1067 mm (42 in) centre to centre
Number Of Ranks	4 as standard
Shank To Shank Spacing	254 mm spacing: 750 mm; 304.8 mm spacing: 900 mm; 381 mm spacing: 1140 mm
Weight Kit	12 m, 15 m and 18 m models optional; 21 m and 24 m models standard
Safety Lights	Standard
Hitch Clevis	24 m model Category 5; all other models standard Category 4, optional Category 5
Safety Chain	Standard
