Collaborative Robots | CS Series - CS612Get latest price

Applications for this product:

1. Schools and TAFE education tool for STEM curriculums, workplace training and qualifications

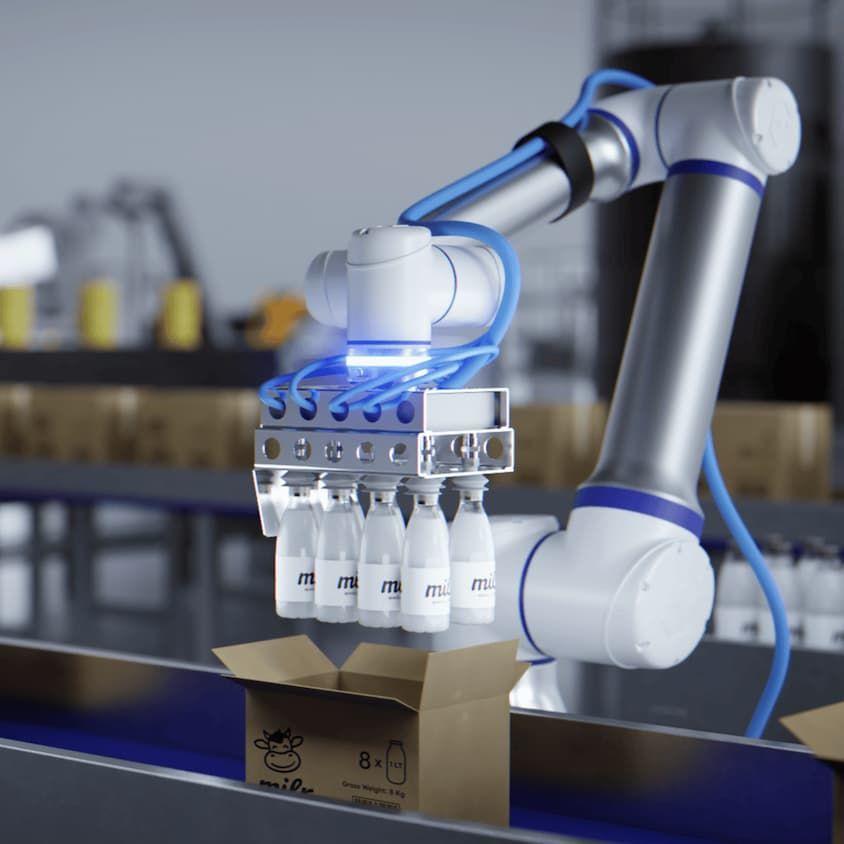

2. Pick and place

3. Quality scanning

4. Machine tending

5. Dispensing

6. Assembly and Screwdriving

7. Food preparation

8. Spray painting

Features of this product:

• Lifting a payload of 3kg and a reach of over 1300mm
• Educational UX options with interactive graphics
• Backed by great service, technical support, warranty and spare parts available in Australia
• Affordable entry point to automation

Why choose this product?

• Light payload automation
• Ideal for schools and TAFEs
• Mobile (15kg)
• Backed by excellent Australia-based technical support, warranty, service and spare parts

Specifications:

• Payload: 12kg

W

Why choose this product?

CS612 robotic arm strikes the perfect balance between flexibility and power, and opens the door to an infinite range of applications, from machine tending to mobility solutions with AGVs.

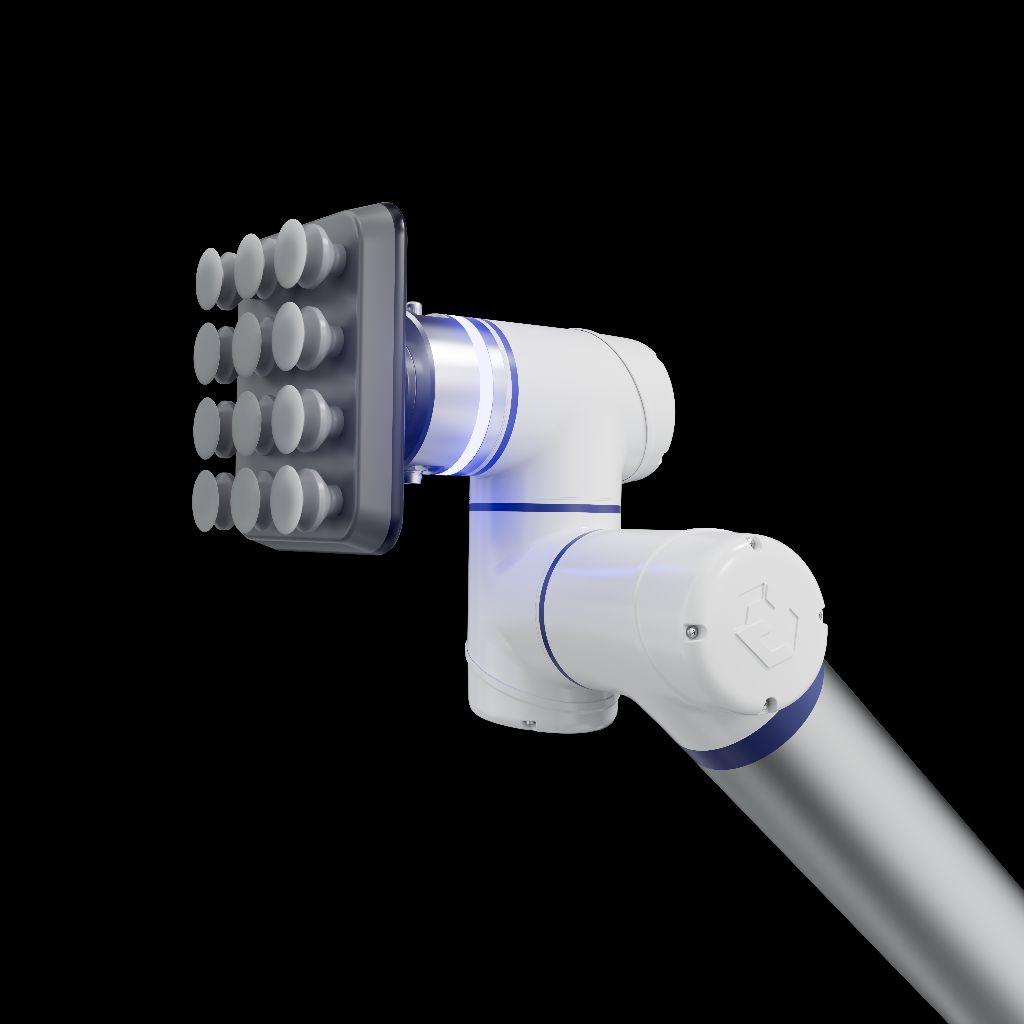

The CS612 cobot's 12 kg payload capacity allows to manipulate multiple objects simultaneously, greatly reducing your task execution time. Combine it with the best multigrippers and accelerate your line operations and returns!

Main Technical Features:

Payload12kg

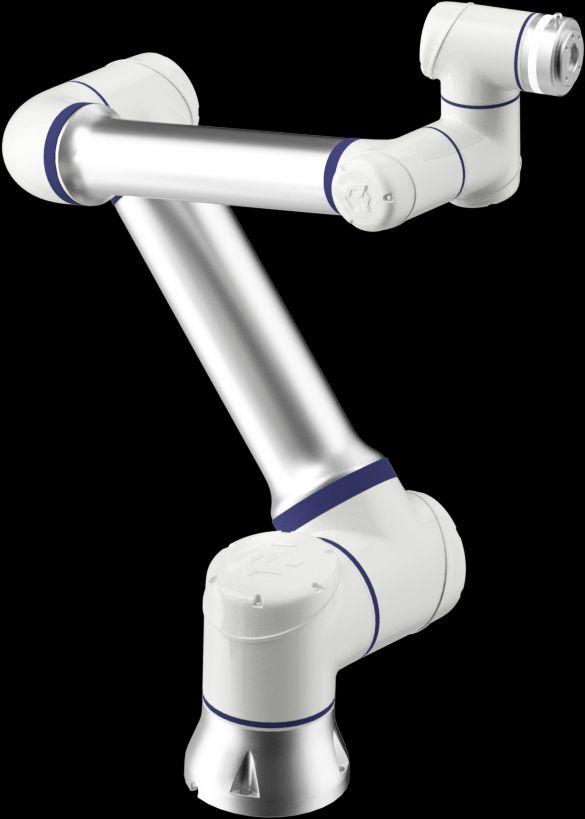

Radius1304mm

Repeatability±0.05mm

Axis6

IP ratingIP65 (optional IP68)

Temperature range-10~50?

Relative humidity<90% (non-condensing)

Typical power usage435w

Tool I/O connectorM8, 8pin

Tool I/O ports4 config. DI, 4 config. DO; 1 AI, 1 AO

Tool I/O power supply0 / 12V / 24V, 3A, 2A, 1A

Tool I/O communicationRS485, Modbus RTU

FootprintØ 190 mm

Weight34 kg

What’s in the Box:

CS612

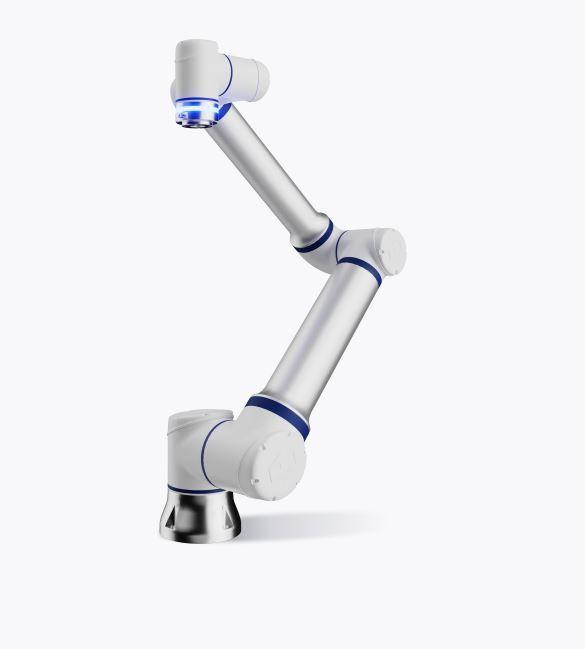

Elite Robots CS612 robotic arm (34kg weight; 1428mm total cobot length; Ø190mm footprint). Standard IP65, upgradeable to IP68. Includes standard 5.5m cable (optional cable lengths are also available: 1.5m; 3m; 8m; 10m).

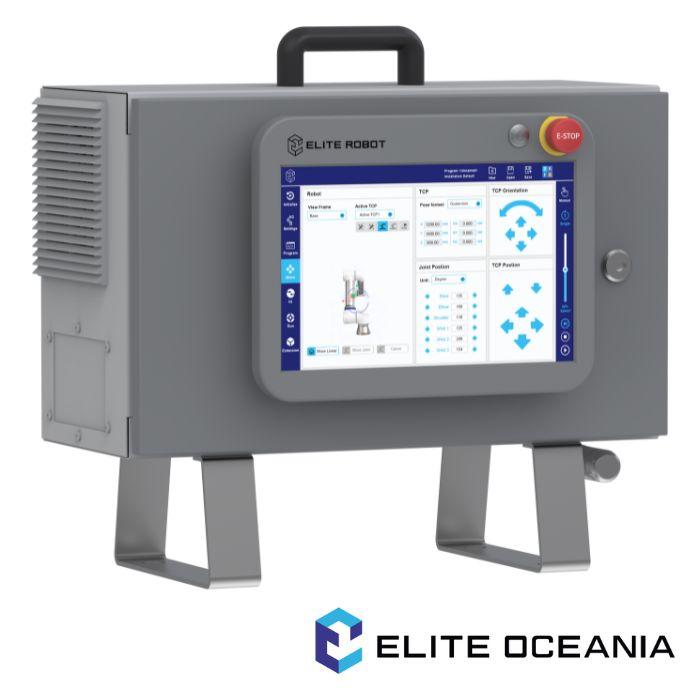

Controller

Delivered with the standard compact AC controller (505 x 462 x 257mm; 14kg) for complete operation control. The optional AC/DC OEM controller (495 x 200 x 170mm; 7.1kg) is available for flexible system integration.

Teach Pendant

Comes with the standard IP54-rated ERP400 teach pendant featuring a 12.1" full-touch screen and 5.5m cable. The ERP400S teach pendant with 3-mode enable key is available as an enhanced safety option.
