Collaborative Robots | CS Series - CS620Get latest price

Main Technical Features:

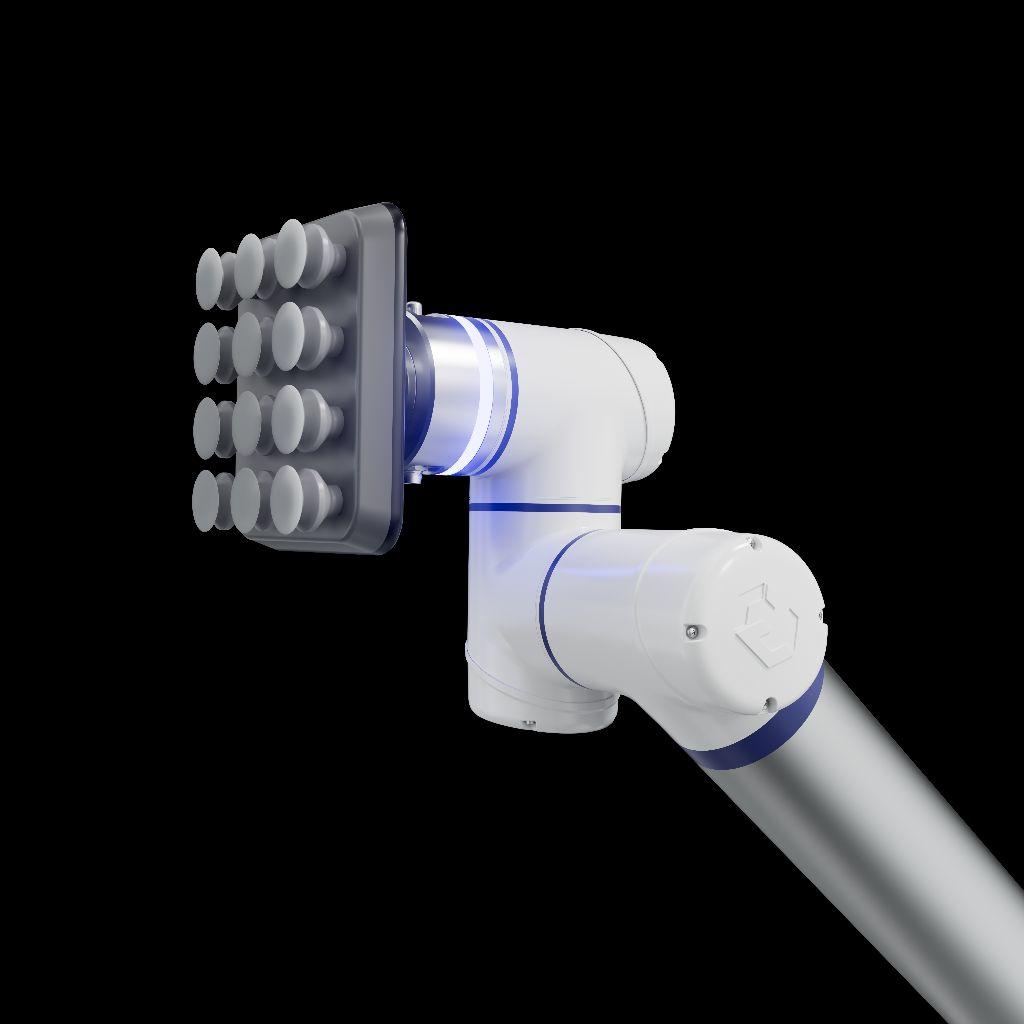

Elite Robots CS620 robotic arm (60kg weight; Ø 240mm footprint). Standard IP65, upgradeable to IP68. Includes standard 5.5m cable (optional Cable lengths are also available: 1.5m, 3m, 8m, 10m.)

Specification:

• Payload – 20kg
• Radius – 1800mm
• Repeatability – ±0.1mm
• Axis – 6
• IP rating – IP65 (optional IP68)
• Temperature range – -10~50°C
• Relative humidity – <90% (non-condensing)
• Typical power usage – 625W
• Tool I/O connector – T1: M8, 8pin; T2: Ø 12.8mm, 4pin
• Tool I/O ports – 4 config. DI, 4 config. DO; 1 AI, 1 AO
• Tool I/O power supply – T1: 0 / 12V / 24V, 3A, 2A, 1A; T2: 24V, 5A
• Tool I/O communication – RS485, Modbus RTU
• Footprint – Ø 240 mm
• Weight – 60 kg

What also comes with the Cobot Arm?

Controller

Comes with the standard compact AC controller (505 x 462 x 257mm; 14kg) for robust control and reliability. The AC/DC OEM controller (495 x 200 x 170mm; 7.1kg) is available as an optional upgrade for system integration flexibility.

Teach Pendant

Includes the standard IP54-rated ERP400 teach pendant featuring a 12.1" full-touch screen and 5.5m cable. The ERP400S teach pendant with 3-mode enable key is available as an enhanced safety option.
