Collaborative Robots | CS Series CS625 Cobot ArmGet latest price

Applications for this product

1. Palletising - kitting, stacking, depalletising, smart placement

2. Welding - arc (MIG and MAG), laser and plasma cutting

3. Pick and place - sorting, packing, transferring, labelling

4. Robotic mobility - automated guided vehicle and autonomous mobile robot collaboration

5. Machine tending - press, metal casting, CNC and injection moulding

Features of this product

• Heavy lifting compact cobot arm - ideal for confined work areas

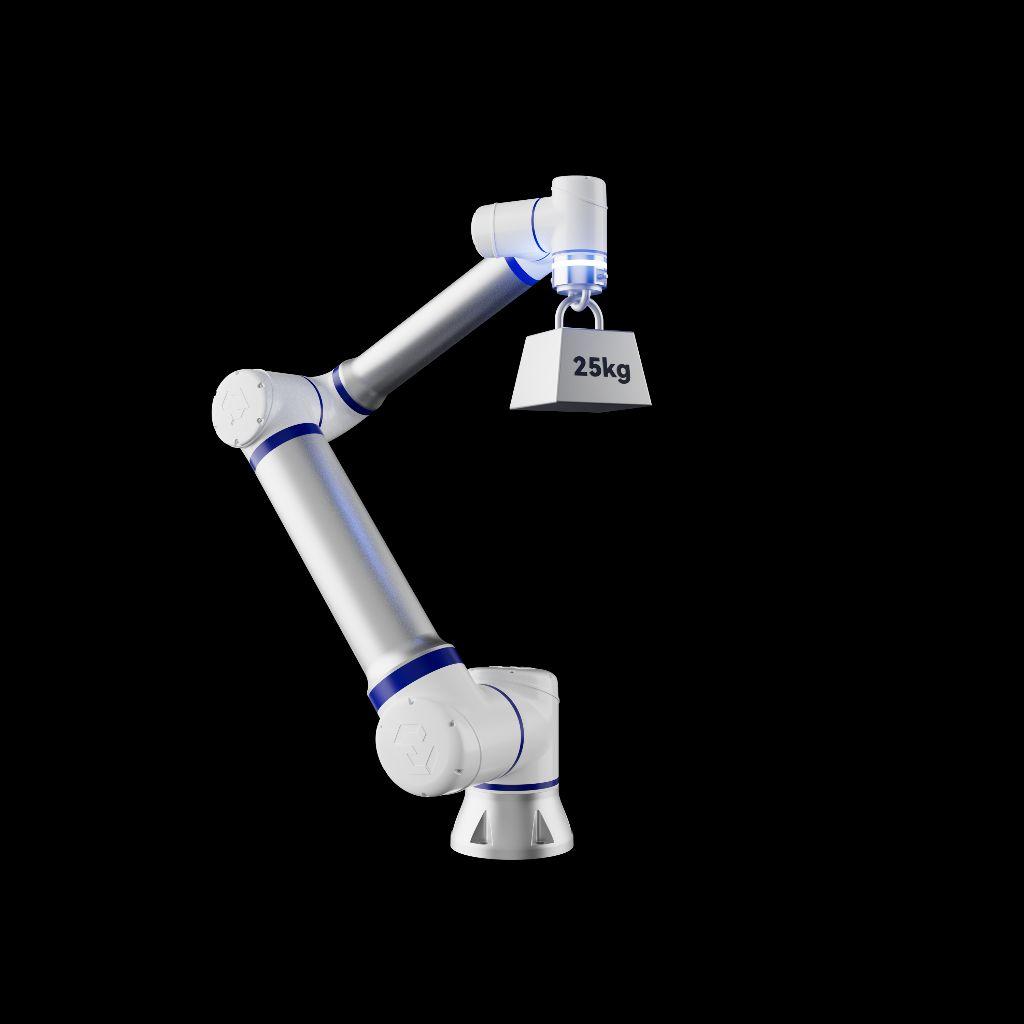

• 25kg payload
• 1500mm reach
• Backed by service, warranty and parts in Australia
• Simple to program and integrate
• Software included with regular updates

Why choose this product?

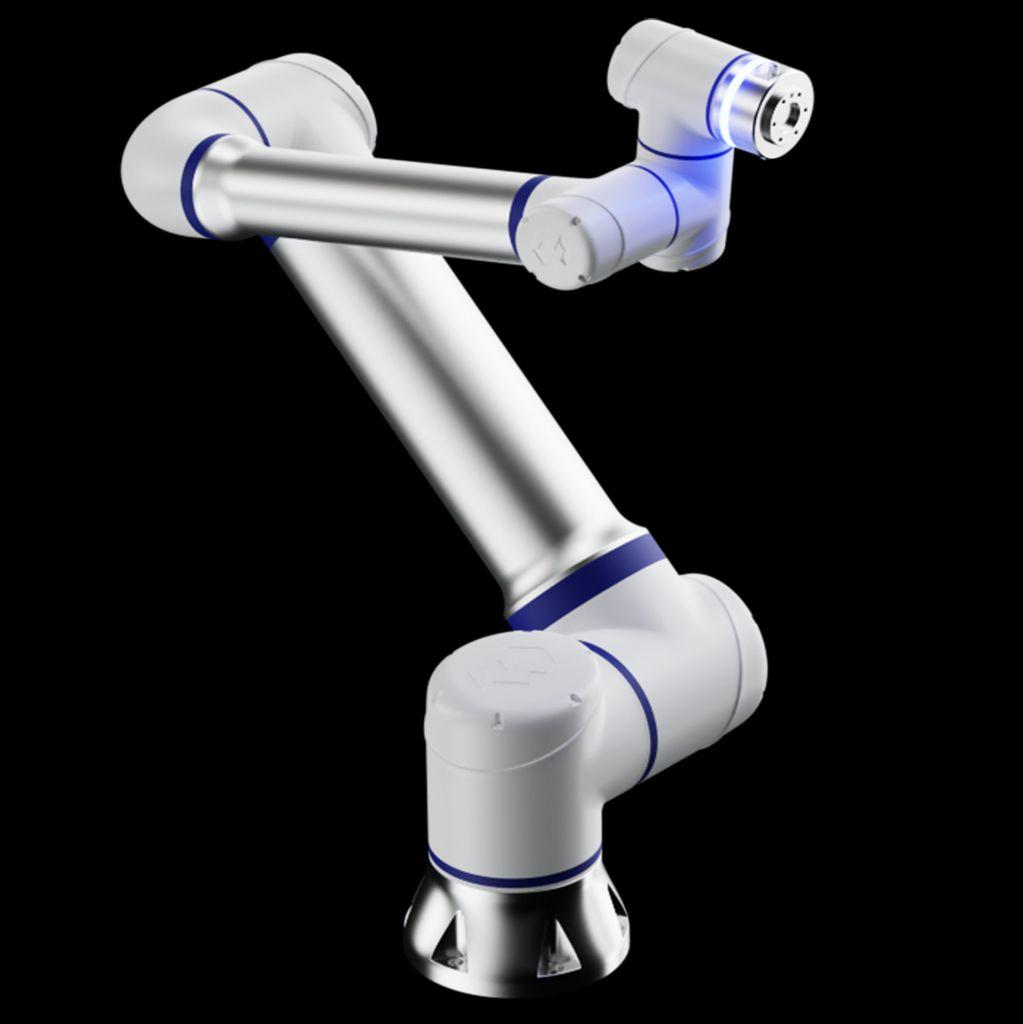

The Elite Robot CS625 is a heavy lifting reliable cobot, ideal where space is a premium. It is backed by excellent service, warranty and spare parts - all based in Australia.

Specifications

• Payload - 25kg
• Radius - 1500mm
• Repeatability - ±0.08mm
• Axis - 6
• IP rating - IP65 (optional IP68)
• Temperature range - -10~50?
• Relative humidity - <90% (non-condensing)
• Typical power usage - 625w
• Tool I/O connector - T1: M8, 8pin; T2: Ø 12.8mm, 4pin
• Tool I/O ports - 4 config. DI, 4 config. DO; 1 AI, 1 AO
• Tool I/O power supply - T1: 0 / 12V / 24V, 3A, 2A, 1A; T2: 24 V, 5A
• Tool I/O communication - RS485, Modbus RTU
• Footprint - Ø 240 mm
• Weight - 58 kg
