Collaborative Robots | CS Series - CS63Get latest price

Applications for this product:

1. Schools and TAFE education tool for STEM curriculums, workplace training and qualifications

2. Pick and place

3. Quality scanning

4. Machine tending

5. Dispensing

6. Assembly and Screwdriving

7. Food preparation

8. Spray painting

Features of this product:

• Lifting a payload of 3kg and a reach of over 1300mm
• Educational UX options with interactive graphics
• Backed by great service, technical support, warranty and spare parts available in Australia
• Affordable entry point to automation

Why choose this product?

• Light payload automation
• Ideal for schools and TAFEs
• Mobile (15kg)
• Backed by excellent Australia-based technical support, warranty, service and spare parts

Specifications:

Payload                                           3kg

Radius                                             624mm

Repeatability                                ±0.02mm

Axis                                                   6

IP rating                                           IP65 (optional IP68)

Temperature range                    -10~50?

Relative humidity                       <90% (non-condensing)

Typical power usage                185w

Tool I/O connector                     M8, 8pin

Tool I/O ports                               4 config. DI, 4 config. DO; 1 AI, 1 AO

Tool I/O power supply              0 / 12V / 24V, 3A, 2A, 1A

Tool I/O communication         RS485, Modbus RTU

Footprint                                         Ø 128 mm

Weight                                             15 kg

What’s in the Box:

CS612

Elite Robots CS612 robotic arm (34kg weight; 1428mm total cobot length; Ø190mm footprint). Standard IP65, upgradeable to IP68. Includes standard 5.5m cable (optional cable lengths are also available: 1.5m; 3m; 8m; 10m).

Controller

Delivered with the standard compact AC controller (505 x 462 x 257mm; 14kg) for complete operation control. The optional AC/DC OEM controller (495 x 200 x 170mm; 7.1kg) is available for flexible system integration.

Teach Pendant

Comes with the standard IP54-rated ERP400 teach pendant featuring a 12.1" full-touch screen and 5.5m cable. The ERP400S teach pendant with 3-mode enable key is available as an enhanced safety option.

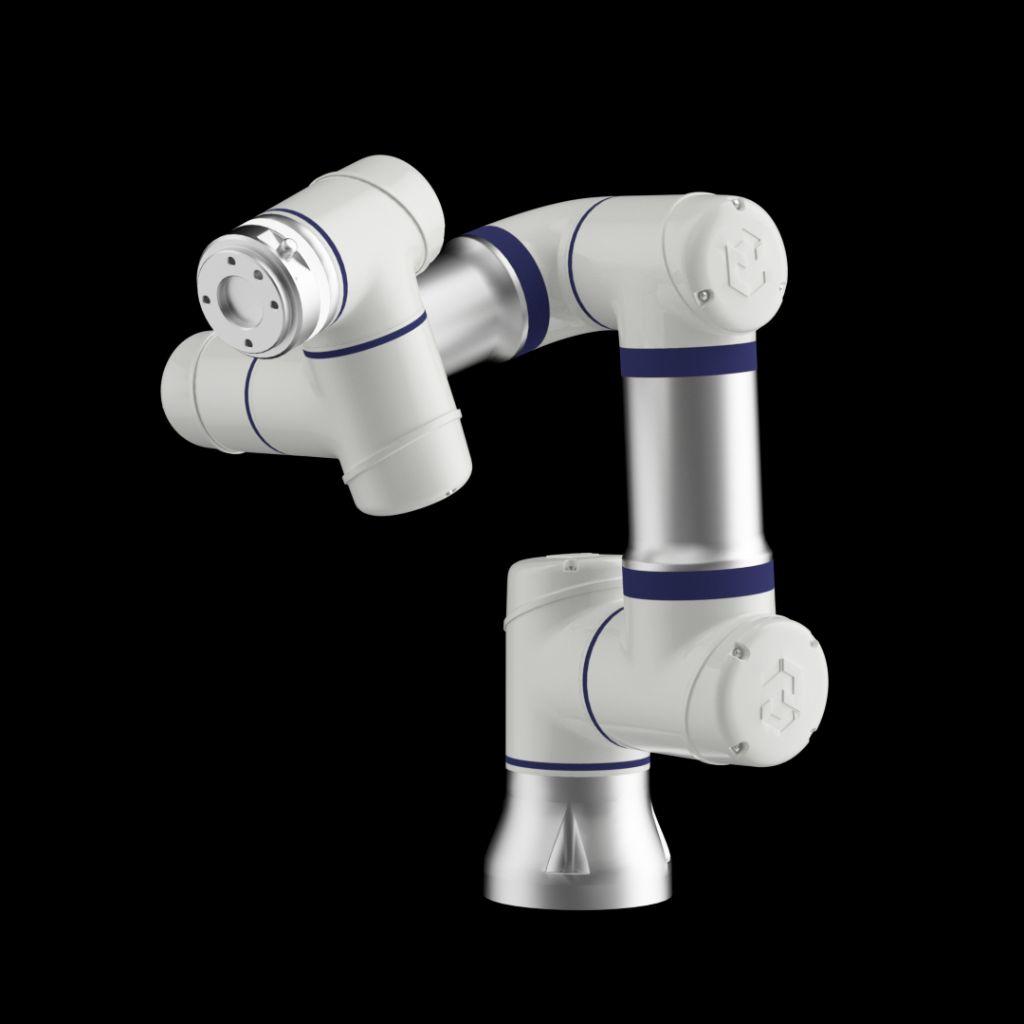

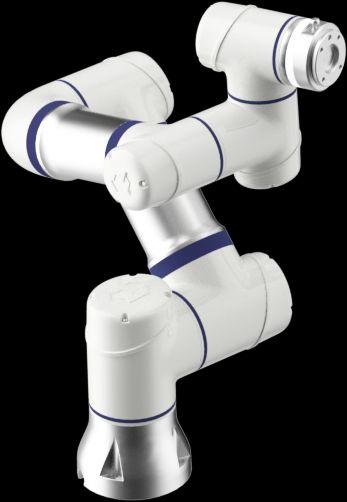

Elite Robots CS63 robotic arm (15kg weight; 821mm total cobot length: Ø 128mm footprint). Standard IP65, upgradeable to IP68. Includes standard 5.5m cable (optional cable lengths are also available: 1.5m, 3m, 8m and 10m).

Specification:

Payload3kg

Radius624mm

Repeatability±0.02mm

Axis6

IP ratingIP65 (optional IP68)

Temperature range-10~50?

Relative humidity<90% (non-condensing)

Typical power usage185w

Tool I/O connectorM8, 8pin

Tool I/O ports4 config. DI, 4 config. DO; 1 AI, 1 AO

Tool I/O power supply0 / 12V / 24V, 3A, 2A, 1A

Tool I/O communicationRS485, Modbus RTU

FootprintØ 128 mm

Weight15 kg

What also comes with the cobot arm?

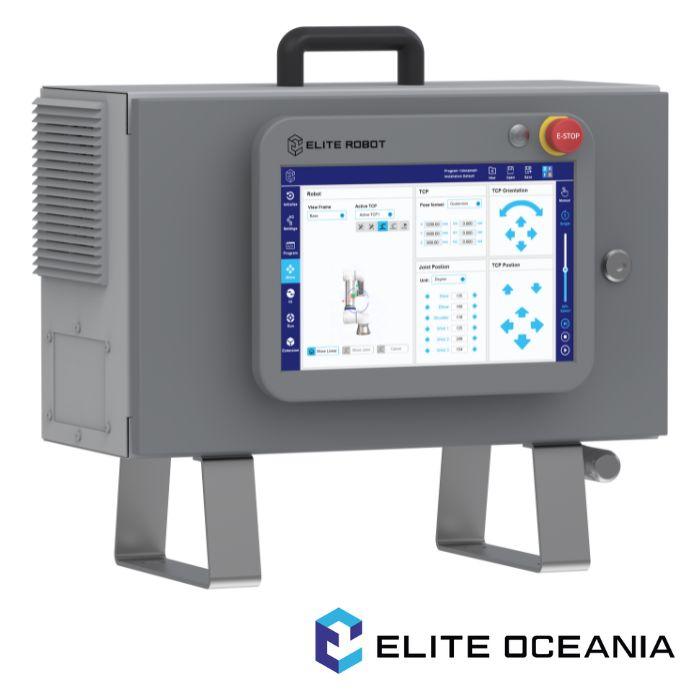

Controller

By default, the cobot is delivered with the standard compact (505 x 462 x 257mm) and lightweight (14kg) AC controller to manage all cobot operations. The AC/DC OEM controller (495 x 200 x 170mm; 7.1 kg) is available as an option.

Teach Pendant

The cobot standard order includes the regular, IP54-rated ERP400 teach pendant, with a 12.1" full-touch screen and a 5.5m cable. The ERP400S teach pendant with 3-mode enable key for enhanced safety is available optional.
