Mini Excavators | SY16CGet latest price

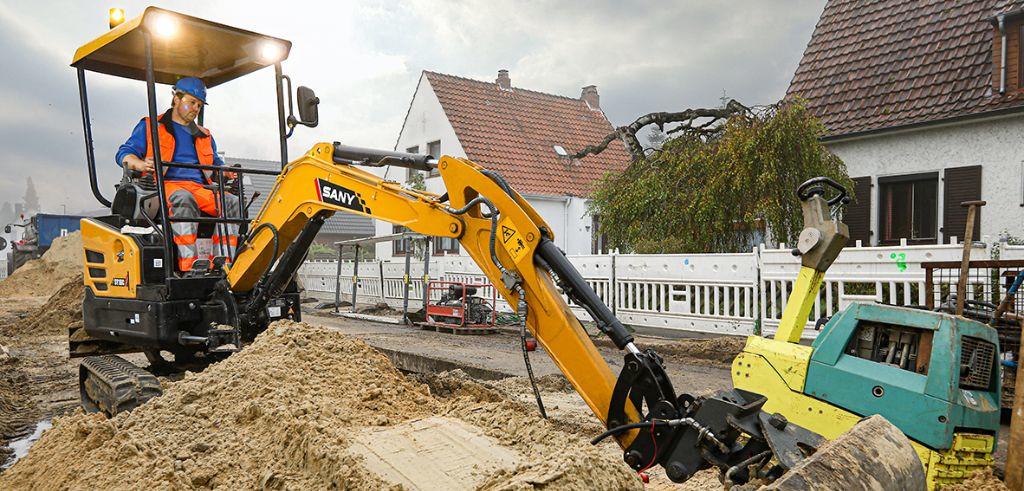

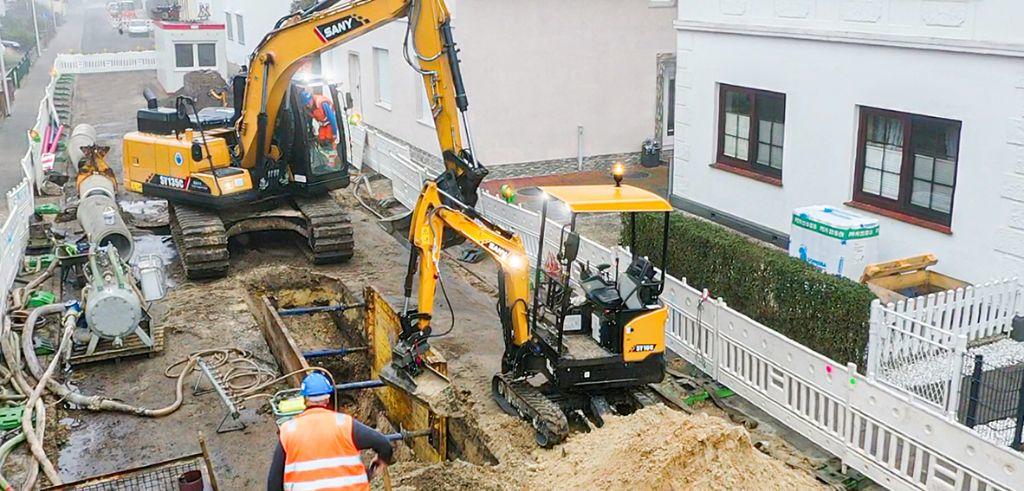

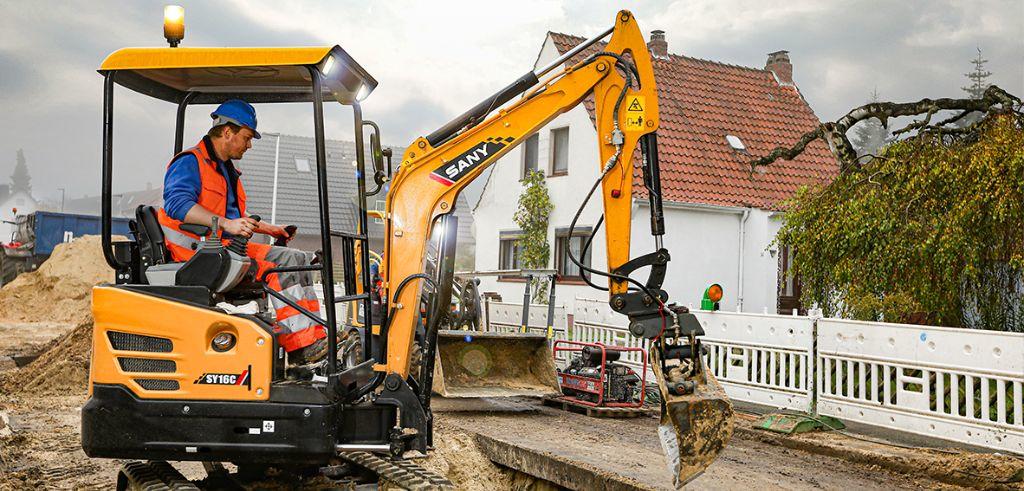

The SANY SY16C 1.8-tonne mini excavator is built for operators who demand compact agility backed by powerful performance. Designed for tight access sites and urban environments, it delivers excellent digging force, stability, and precision control across a wide range of applications.

Powered by a reliable Yanmar 3TNV80F Stage V diesel engine, the SY16C produces 14.6 kW at 2400 rpm for consistent output with impressive fuel efficiency. Its load-sensing hydraulic system ensures smooth, responsive operation and faster cycle times, while the hydraulically adjustable undercarriage (980 – 1350 mm) provides superior stability and easy transport between sites.

 Experience SANY value with the SY16C — a mini excavator built to deliver lasting performance for landscaping, construction, and utility projects

Key Features

• Powerful Yanmar stage V engine
• Superior digging with 2.36m depth and 4m reach
• Operator comfort and visibility with ergonomic layout, low vibration and LED lighting
• Load-sensing hydraulic system
• Adjustable undercarriage (980-1,350mm)
• Easy maintenance with grouped service points for minimal downtime

General Information

• Weight

1865 kg

• Standard bucket capacity

0.04 m³

• Transport length

3665 mm

• Transport width

980/1350 mm

• Height over cabin/ROPS

2410 mm

• Engine

Yanmar 3TNV80F

• Rated Power

14.6 kW

• Engine Revolutions

2400 rpm

• Emission Stage

Stage V

• Max. digging depth

2360 mm

• Max. digging reach

4000 mm

• Bucket digging force (ISO)

15.2 kN

• Arm digging force (ISO)

9.2 kN

• Max. oilflow

72 l/min
