Mini Excavators | SY35UGet latest price

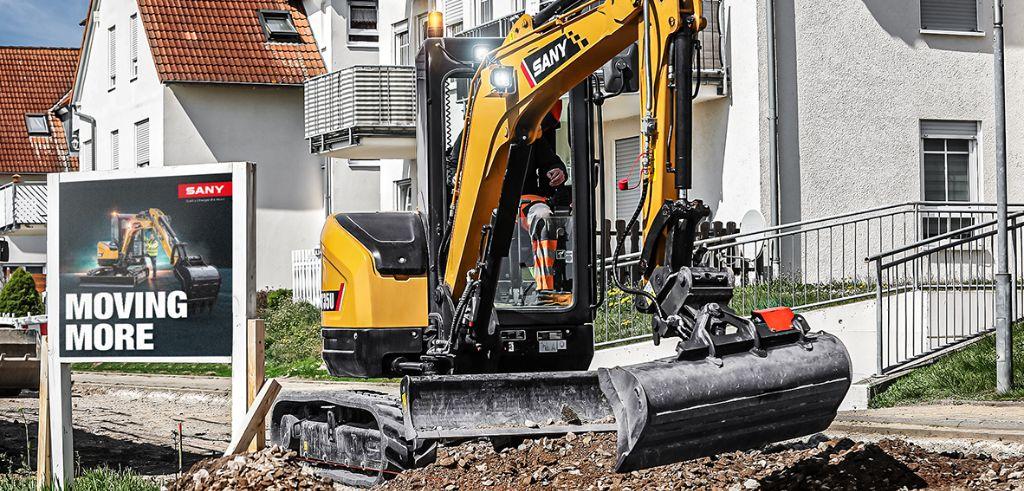

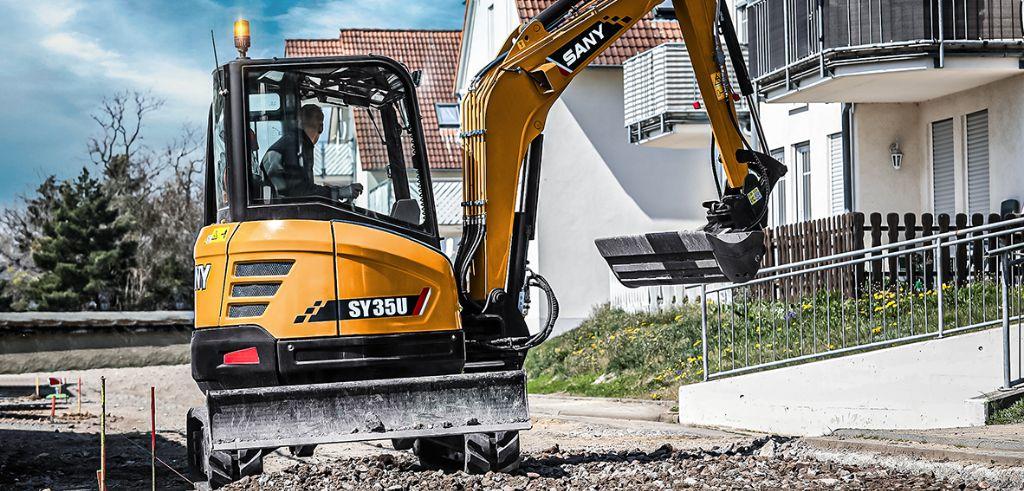

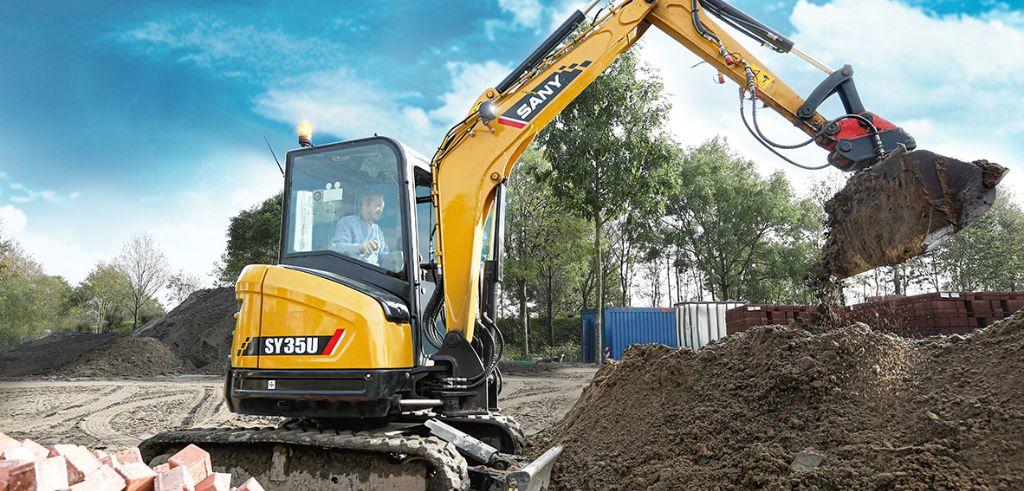

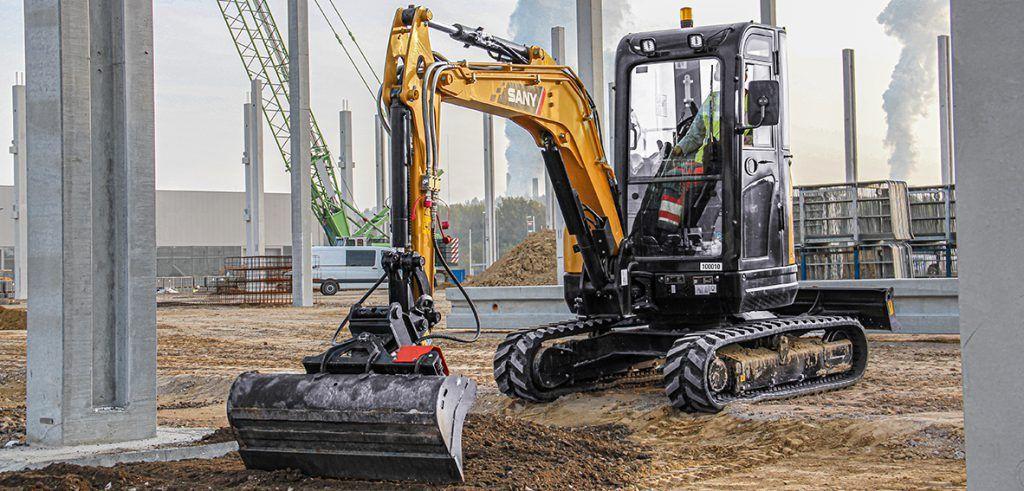

The SANY SY35U is a high-performance, zero-tail swing mini excavator designed for demanding urban and construction environments. Powered by a Yanmar 3TNV88F Stage V engine, it delivers 18.2 kW at 2,200 rpm through a sophisticated load-sensing hydraulic system, ensuring smooth multi-function operation and maximum fuel efficiency.

With an operating weight of 3,680 kg, the SY35U combines compact dimensions with the strength and stability typically found in larger machines. Its zero-tail swing and extended track design enable operators to work efficiently in tight spaces without compromising digging force or balance. The reinforced undercarriage, precision-engineered steel frame, and proportional hydraulic control system make the SY35U a reliable powerhouse for civil, landscaping, and utility applications.

Key Features

• Zero-tail
• Dual auxiliary circuits
• Dozer blade floating function
• Upgraded cabin with improved airflow design, low noise levels and high back suspension seat
• Double-acting hydraulic circuit for quick hitching
• Double control circuit
• Safety valves on boom and arm
• Air conditioning
• LED spotlights

General Information

• Weight

3790 kg

• Standard bucket capacity

0.12 m³

• Transport length

4915 mm

• Transport width

1720 mm

• Height over cabin/ROPS

2515 mm

• Engine

Yanmar 3TNV88F

• Rated Power

18.2 kW

• Engine Revolutions

2200 rpm

• Emission Stage

Stage V

• Max. digging depth

3105 mm

• Max. digging reach

5465 mm

• Min. Swing radius

2475 mm

• Bucket digging force (ISO)

30.4 kN

• Arm digging force (ISO)

18.2 kN

• Max. oilflow

88 l/min
