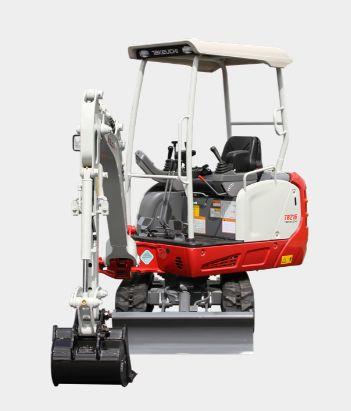

TB216 Mini ExcavatorGet latest price

Specifications of this product

• Operating weight: 1,770kg (compact mini-excavator class)
• Engine type: Yanmar 3-cylinder diesel (EU Stage V / EPA Tier 4 compliant)
• Rated power: 15hp (11.2 – 11.5kW) @ 2,400rpm
• Torque: 52.7 Nm @ 1,800rpm (model dependent)
• Fuel tank capacity: 22 L
• Bucket capacity (heaped): 0.038m³
• Transport length: 3,870mm
• Overall height (canopy): 2,280mm
• Width (track retracted – extended): 980/1,300mm
• Ground clearance: 205mm
• Track width (each): 230mm
• Tail swing radius: 1,075mm
• Front swing radius: 1,480mm

Features of this product

• Compact and balanced design ideal for restricted or confined job sites.

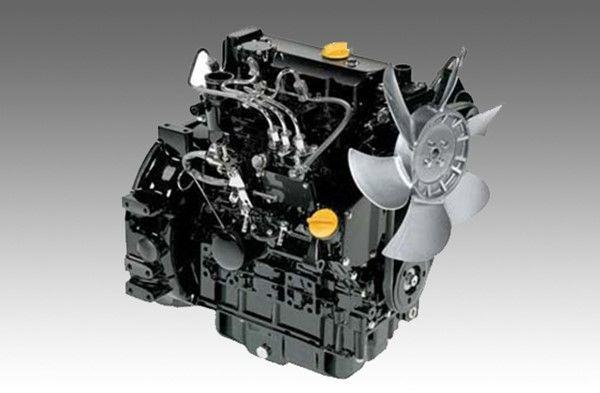

• Powerful but efficient engine: Yanmar engine meeting modern emissions standards (EU Stage V /EPA Tier 4 compliant) for reduced environmental impact and high performance.

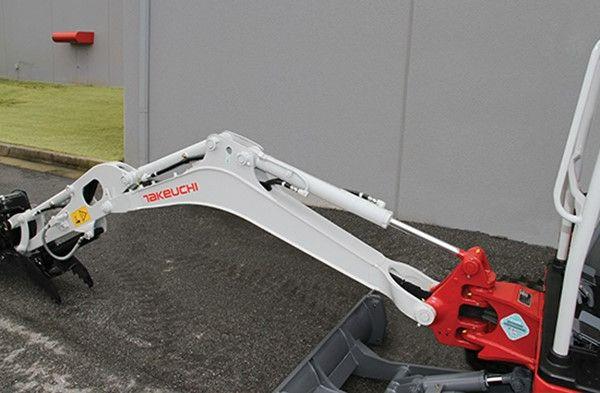

• Excellent reach and dig performance: optimised boom and arm design for productivity.
• Improved drive system: automatic downshift and increased tractive force for better travel and backfill performance.
• Retractable undercarriage allows the machine to narrow from 1,300mm down to 980mm to fit through standard doorways or tight spaces.
• Protected critical components: wrap-around counterweight, top-mounted boom cylinder, and internally routed hydraulic plumbing for durability and jobsite protection.
• Comfortable operator environment: excellent visibility, suspension seat with adjustments, adjustable armrests, and easy entry/exit.
• Optional pattern change valve: operator can choose preferred control pattern for comfort and efficiency.
• Multi-information display: clear machine status, diagnostics, and performance information.
• Easy service access: maintenance points and fuel access designed for quick daily checks.
• Operator protection systems: ROPS/TOPS/OPG canopies offered for increased safety.

The TB216 is suitable for a variety of small-to-medium earthmoving and excavation tasks, including:

• Construction and civil works
• Landscaping and gardening
• Utility installation and maintenance
• Demolition and site cleanup
• Property development and maintenance
• Rental fleets and general earthmoving

Why choose this product

• Supported by Toyota Material Handling Australia, ensuring reliability, nationwide service, and parts support.
• Versatile compact excavator: The TB216 delivers a strong combination of size, power and performance ideal for sites with limited space but where productive digging and earthmoving are still required.
• Engineered for durability: Features like wrap-around counterweight, top-mounted boom cylinder and protected hydraulics help reduce downtime and maintenance costs.
• Operator comfort and efficiency: Excellent visibility, adjustable seating and intuitive controls make it easier and less tiring to operate over long shifts.
• Suitable for diverse tasks: Whether you’re a landscaper, builder, contractor or hire fleet operator, this model delivers reliable performance and productivity across many job types.
