Nitro 7310 Self-Propelled Sprayer

Name: Nitro 7310 Self-Propelled Sprayer
Brand: New Holland Agriculture

1/6

Nitro 7310 Self-Propelled Sprayer

The Miller Nitro 7310 self-propelled sprayer features a 4542 L stainless steel tank, front-mount boom, SprayView cab and 285 (rated) / 310 (peak) hp.

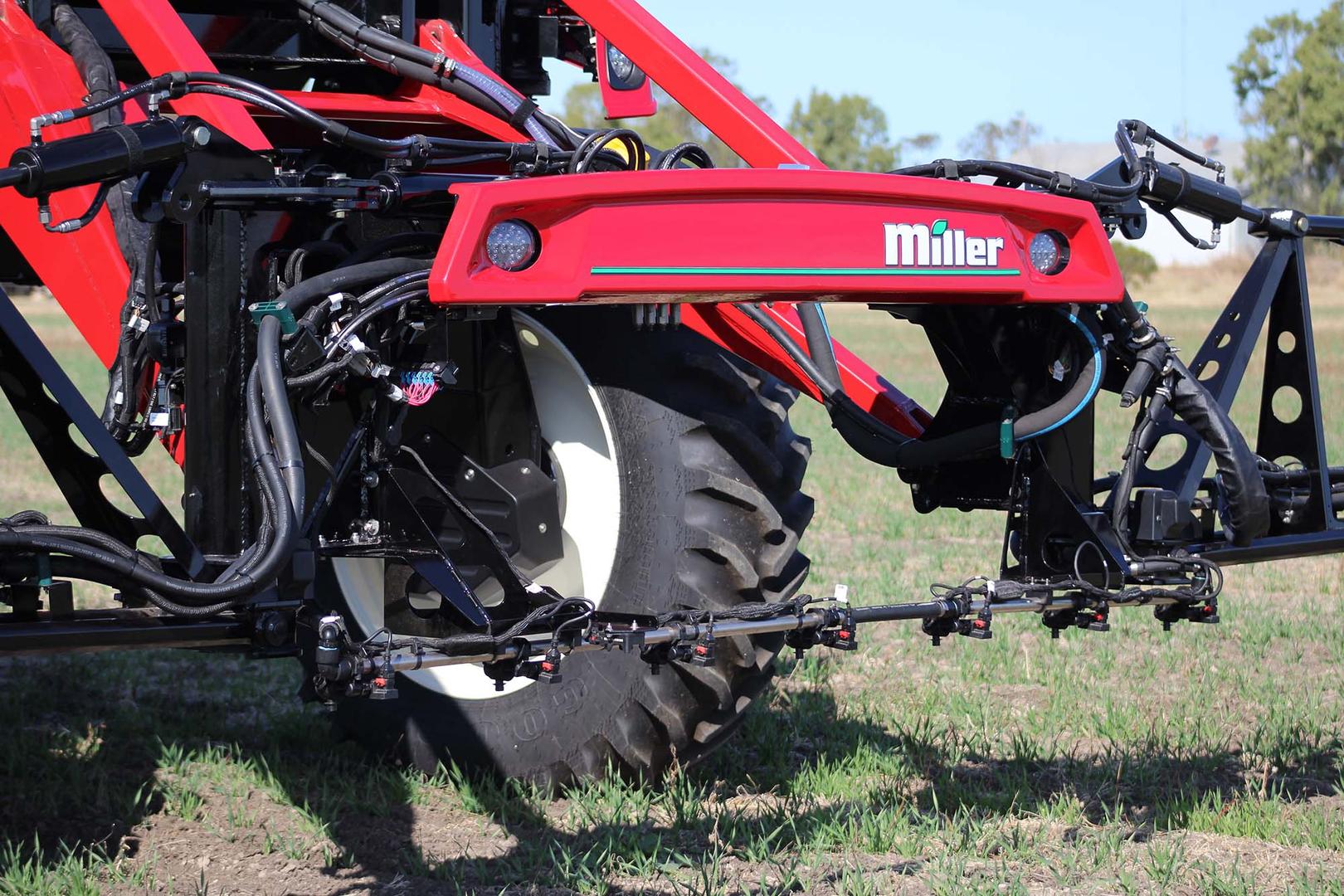

Front-mount boom and SprayView cab provide visibility of every nozzle and row for real-time adjustments, consistent coverage as conditions shift, cleaner edges and fewer misses.
Sprayview™ Cabin: quiet, operator-first cabin with intuitive controls for comfort and control through long days.
Miller Intelligence.
Fuel savings.
Un-matched stability and manoeuvrability, with a compact chassis for agility at headlands.
50: 50 Weight Distribution; near 50:50 weight balance and settled suspension provide a planted ride across rough country while protecting crop and boom.
Industry-leading clearance.
Easy access to daily checkpoints streamlines servicing.
Smart plumbing speeds loading and clean-out.
Choice of boom and application technology, compatibility with screens already in use and connected data for quicker decisions.

Specification	Value
BOOM WIDTH	41.15 m (135ft)
Horsepower	285 (rated) / 310 (peak) hp
Fuel Tank	568 L
Cooling System	Efficient Single Pass stacked top to bottom, Hydraulically driven variable speed fan with reverse capabilities
Alternator / Batteries	30 amp / 2 heavy duty – 1000 cca batteries
Transmission	Hydrostatic drive with electronic controlled single Danfoss 165 cc, H1 series heavy-duty pump
Final Drives	Danfoss H 1 Series 80 cc drive motors with Dana Spicer® CO24 Torque Hubs
Travel speed	0 – 51 kph
Steering	Hydraulic with heavy-duty ball joints
Suspension	4 wheel independent electronically controlled hydraulic suspension, hill side-assist, auto level for each leg
Product Tank Options	4542 L (Stainless Steel)
Rinse system	568 L poly tank with 5.08 cm quick fill. Electric standard / Auto Rinse optional
Crop Clearance	Up to 198cm (tyre dependant)
