Nitro 7380 Self-Propelled Sprayer

Name: Nitro 7380 Self-Propelled Sprayer
Brand: New Holland Agriculture

1/6

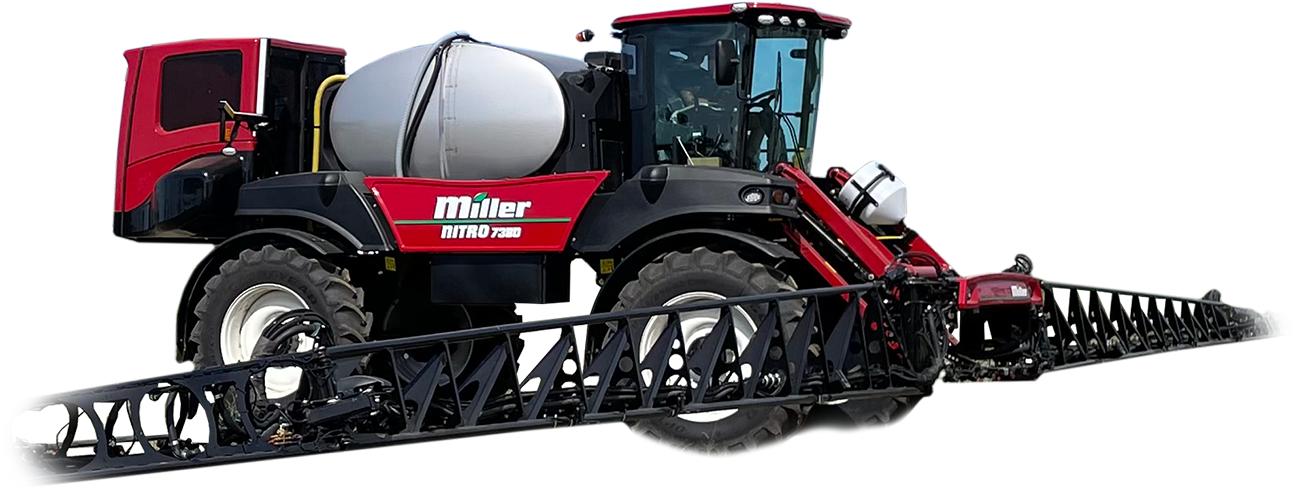

Nitro 7380 Self-Propelled Sprayer

The Miller Nitro 7380 self-propelled sprayer features a front-mount boom, SprayView cab and 6100 L standard or 8000 L optional product tank.

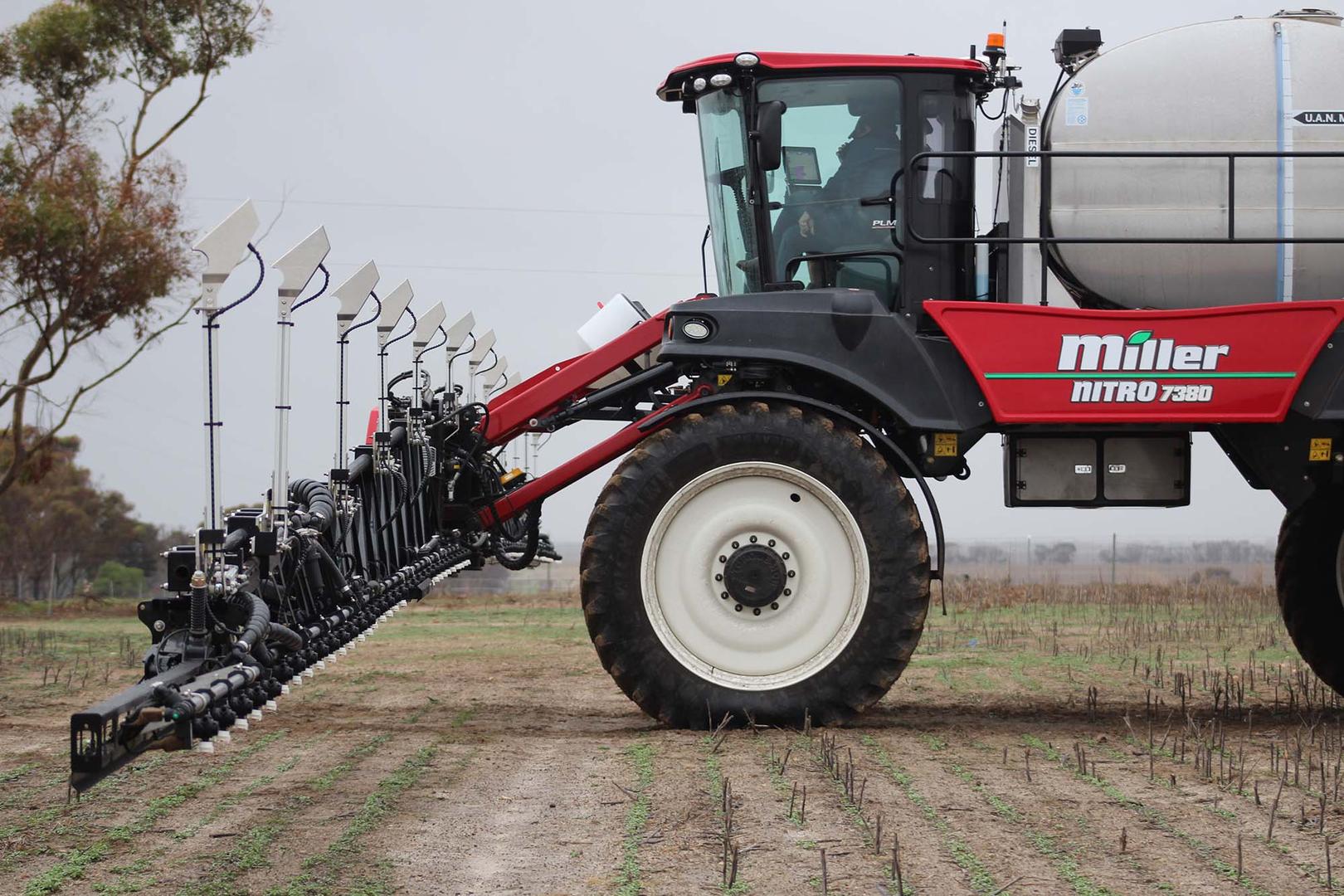

Front-mount boom

Front-mount boom and clear sightlines provide visibility of every nozzle and row, supporting real-time adjustment, consistent coverage, cleaner edges and fewer misses.
SprayView cab with a quiet, operator-first interior, intuitive controls and comfort to reduce fatigue and improve accuracy through the day.
Miller Intelligence and intelligent spray technology.
Fuel savings.
Un-matched stability and manoeuvrability, balanced 50:50 weight distribution and industry-leading clearance.
Smart hydrostatic drive delivers a planted ride across rough country while protecting crop and boom.
Easy access to daily service checkpoints and smart plumbing for faster loading and clean-out.
Choice of application technology and boom, integration with screens already in use, and connected data for faster decisions.

Specification	Value
BOOM WIDTH	41.15 m (135ft)
Horsepower	322 (rated) / 382 (peak) hp
Fuel Tank	568 L
Cooling System	Efficient Single Pass stacked top to bottom, Hydraulically driven variable speed fan with reverse capabilities
Alternator / Batteries	330 amp / 2 heavy duty – 1000 cca batteries
Transmission	Torq-Trac Hydrostatic Drive / Single Danfoss 210cc H1 drive pump
Final Drives	Danfoss H1 Series 110 cc Bi-Directional Drive Motors with Dana Spicer® CO 26 Torque Hubs
Travel speed	0 – 51 kph
Steering	Hydraulic with 2 steering cylinders
Suspension	4 wheel independent, auto level for each leg
Product Tank Options	6100 L (Standard) 8000 L (Optional)
Rinse system	6100 L - 568 L poly tank with quick fill. Electric standard / Auto Rinse optional 8000 L 668 L poly tank with quick fill. Electric standard / Auto Rinse optional
Crop Clearance	Up to 200 cm (tyre dependant)
