Mini Hydraulic Excavator | 300.9DGet latest price

Compact Size for Tight Jobs

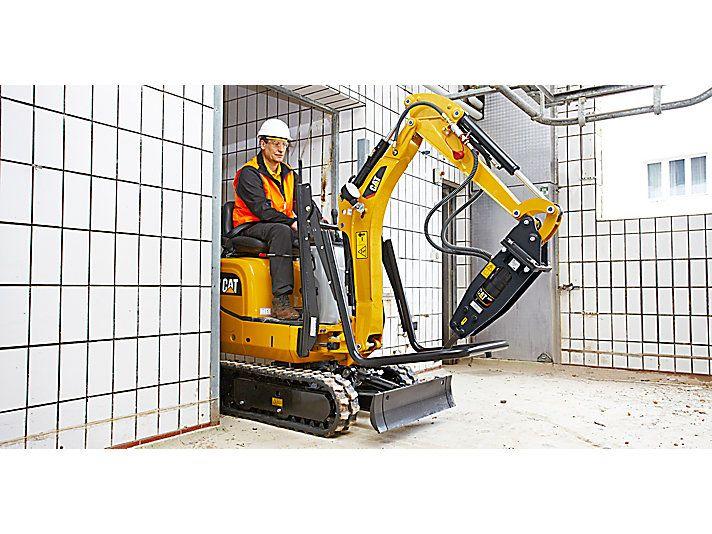

The Cat 300.9D Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.

Net Power

9.6 kW

Operating Weight

935 kg

Dig Depth

1731 mm

Compact Dimensions

With an overall width of only 730 mm(2 ft 5 in) the Cat® 300.9D can easily drive through narrow passages and doors. Both indoor and outdoor jobs are now accessible with the under1000 kg (2,205 lb) weight making easy trailer transportation between sites possible.

Extending Undercarriage and Blade

An extending undercarriage and foldout dozer blade allow the machine to be configured for excellent working stability and optimum performance. Easy retraction, controlled from the operator’s seat, enables the machine to pass through narrow openings.

Foldable Safety Frame

A protective ROPS safety frame structure mounted on the front of the machine allows fitting of a guard for extra operator protection during hammer use. The structure folds down in a few seconds for easy machine transportation and storage.

Powerful Engine and Hydraulics

The 13.7 kW (18 hp) engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs. The matched cooling system is designed to accommodate working within confined areas and also the powerful Cat® hammer. Low noise and vibration levels deliver comfortable operation. The engine is compliant with U.S. EPA Tier 4 Final and EU Stage V emissions regulations.

Hose and Cylinder Protection

Bucket hoses are well protected within the boom and the cylinder is mounted above the structure to increase the machines durability for working in tough environments. The clean lines of the front linkage also provide excellent visibility to the digging area.

Auxiliary Hydraulics as Standard

The 300.9D is fitted with auxiliary lines for hammer operation routed down to the stick. Locating the connecting point close to the work tool reduces connecting hose lengths and potential for damage.

For more information, please download the brochure.
