Engine / Motive Power:
Basic Equipment

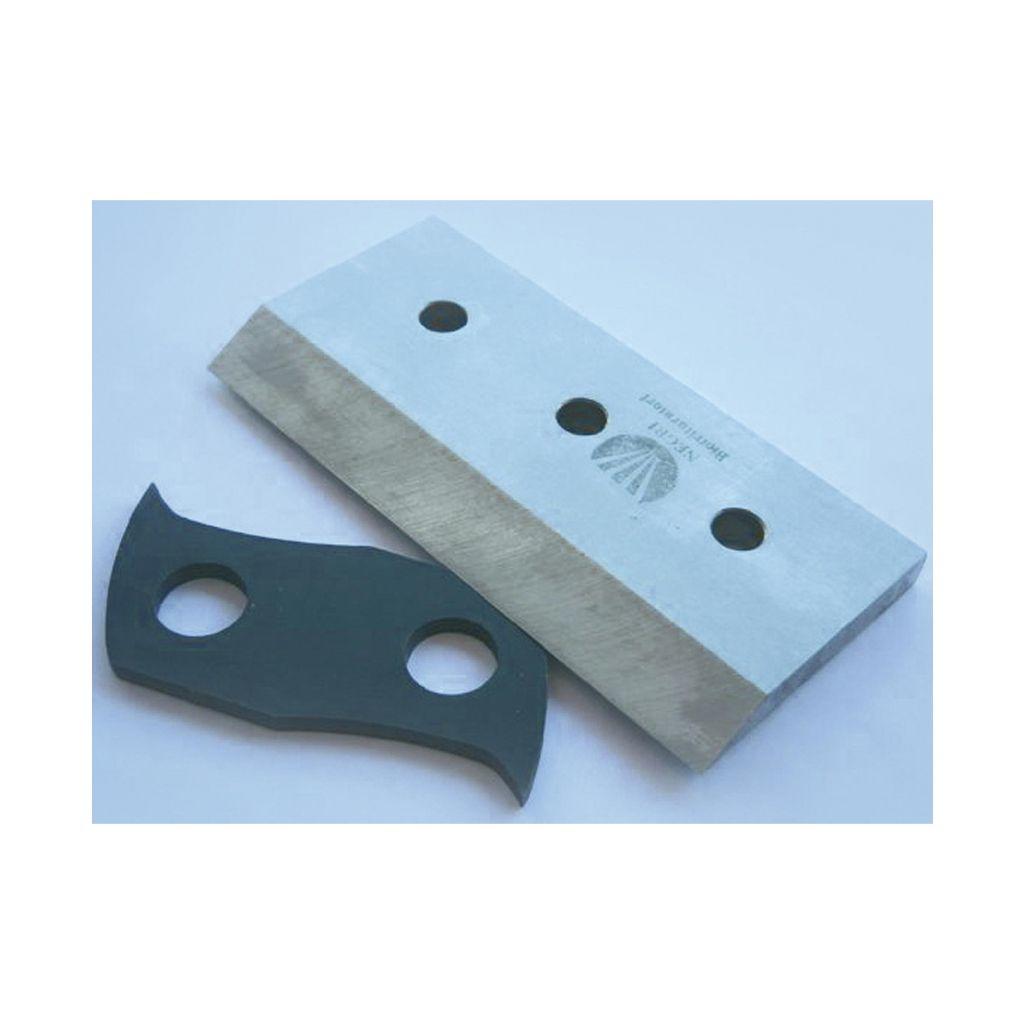

- Rotor with 33 mobile reversible hammers in hardened steel
- Fix removable refining screen

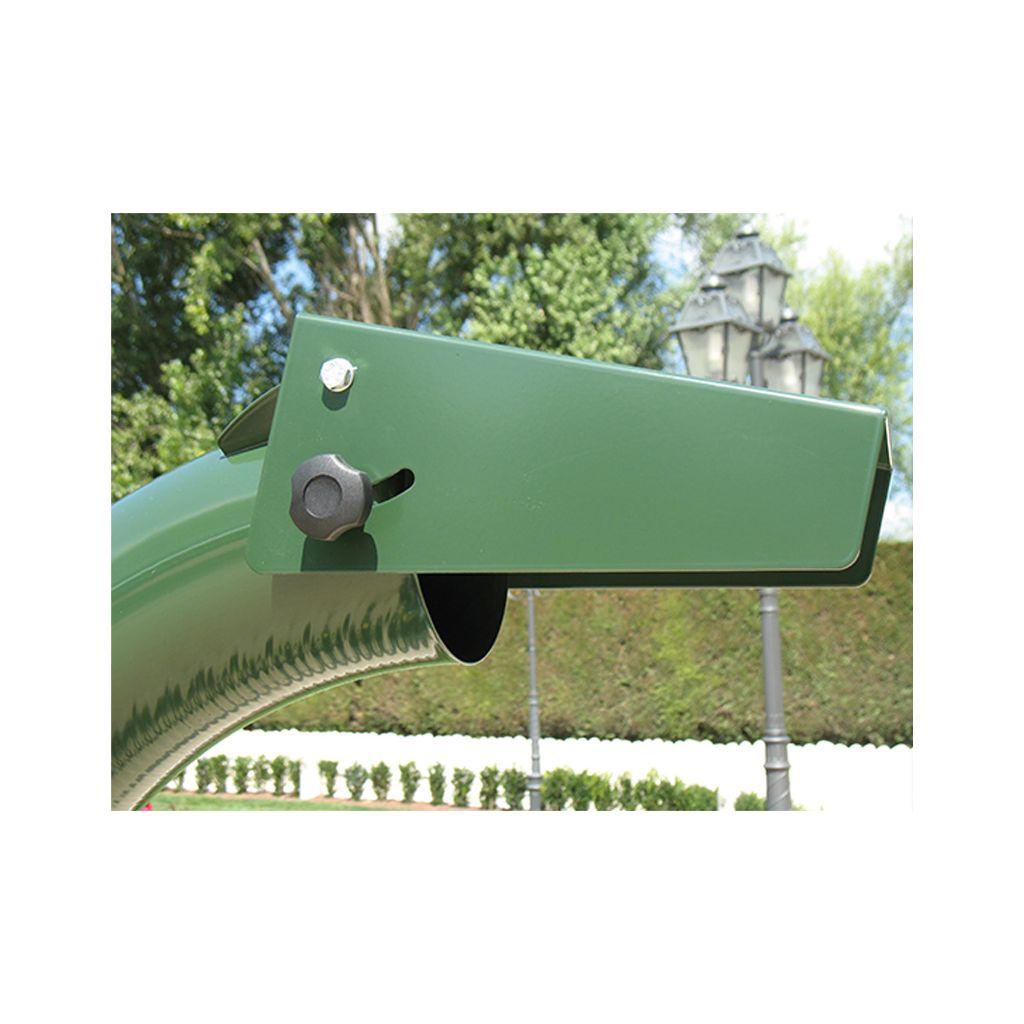

- 270° turnable ejection pipe, with adjustable discharge distance

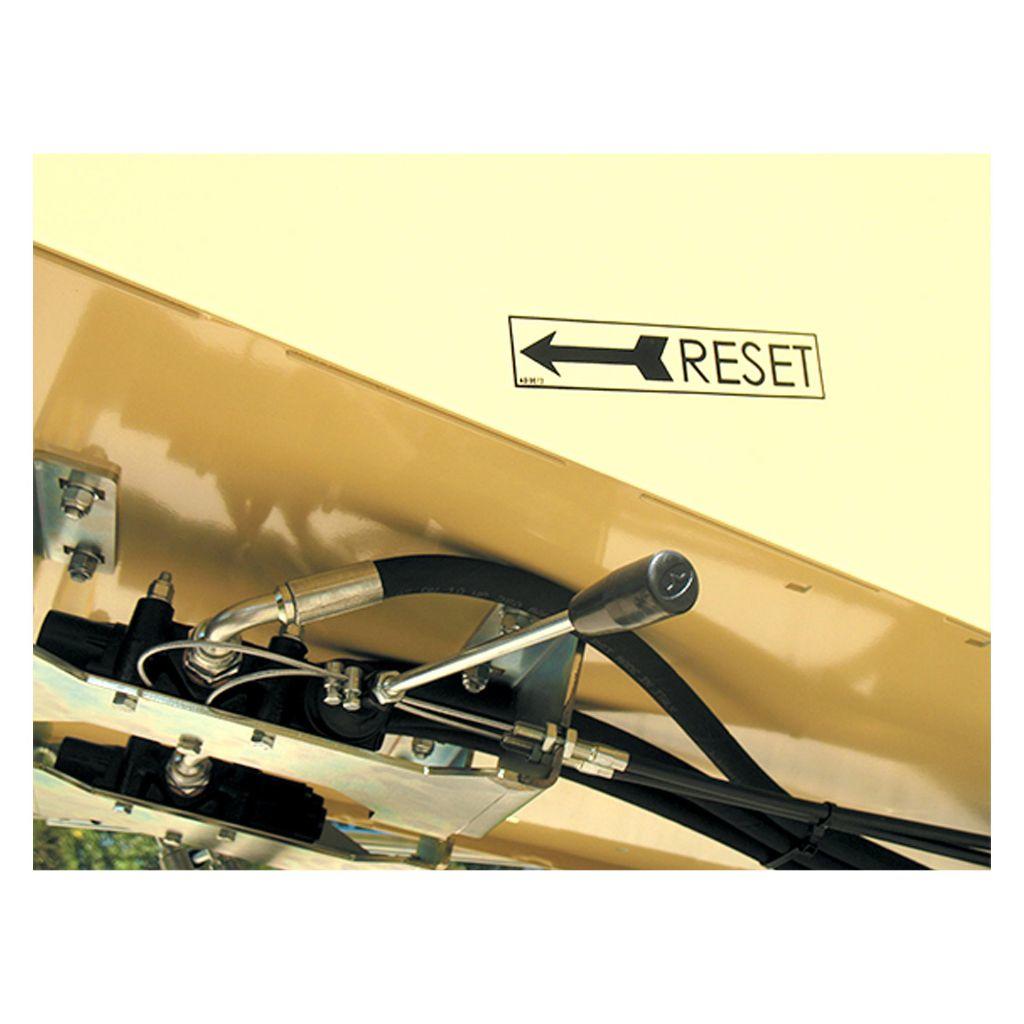

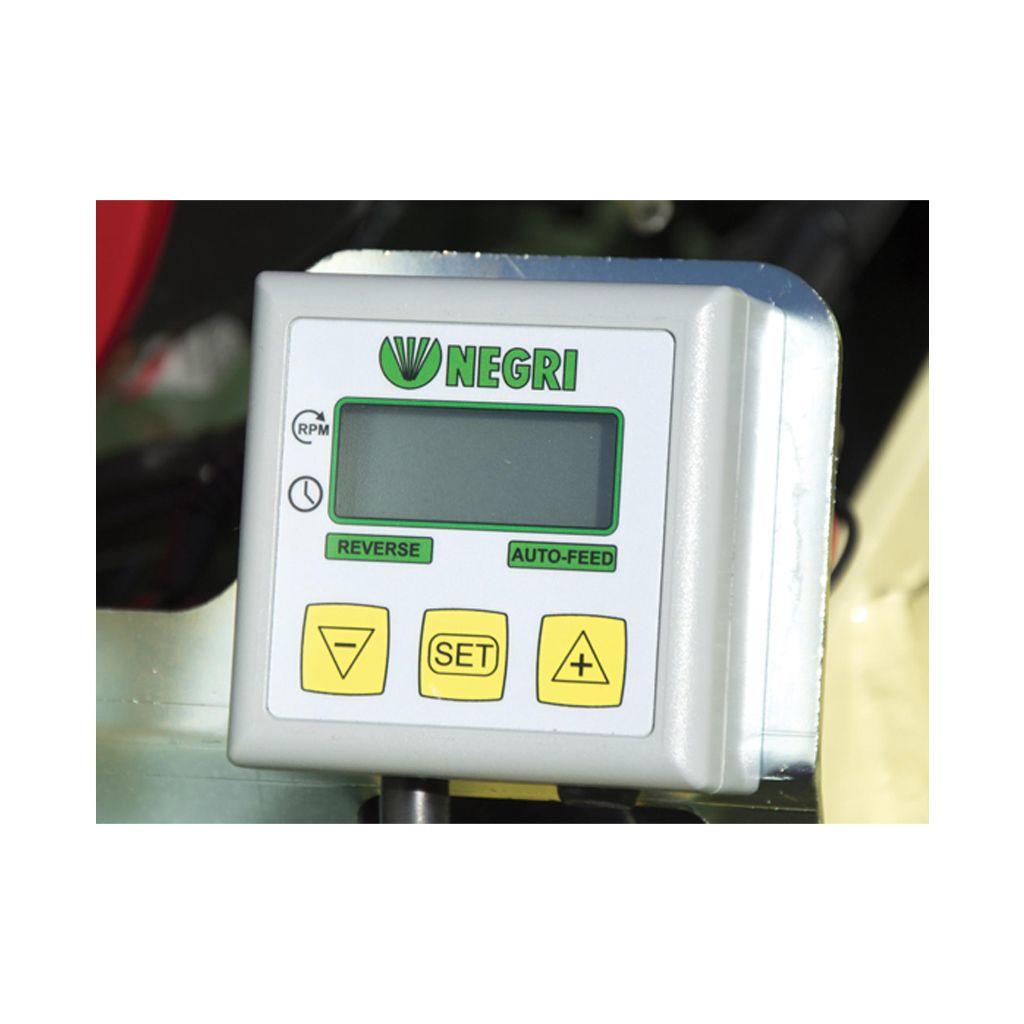

- Hydraulic feeding roller with adjustable speed and rotation direction
- Belt transmission with hydrodynamic joint
- System for bearings’ lubrication
- Electric start
- No stress device
- Homologated street carriage (fixed drawbar with ball joint)
Accessories
- Discharge pipe extension of 400 mm
Usability:
| Engine/Motive power |
Honda GX630 |
| Ø to shred |
90 mm |
| Production capacity |
9 m³/h |
| Length |
2795 mm |
| Width |
1230 mm |
| Introduction Height |
1735 mm |
| Introduction opening |
700 x 720 mm |
| Feed opening |
1205 – 870 mm |
| Shredding opening |
286 x 200 mm |
| Discharge height |
1735 mm |
| Hammers No. |
33 |
| Weight |
460 kg |
To contact Chipstar Australia about Wood Chipper Mulcher | R240 use Get a quote.
